17
Connecting AV Components—Continued

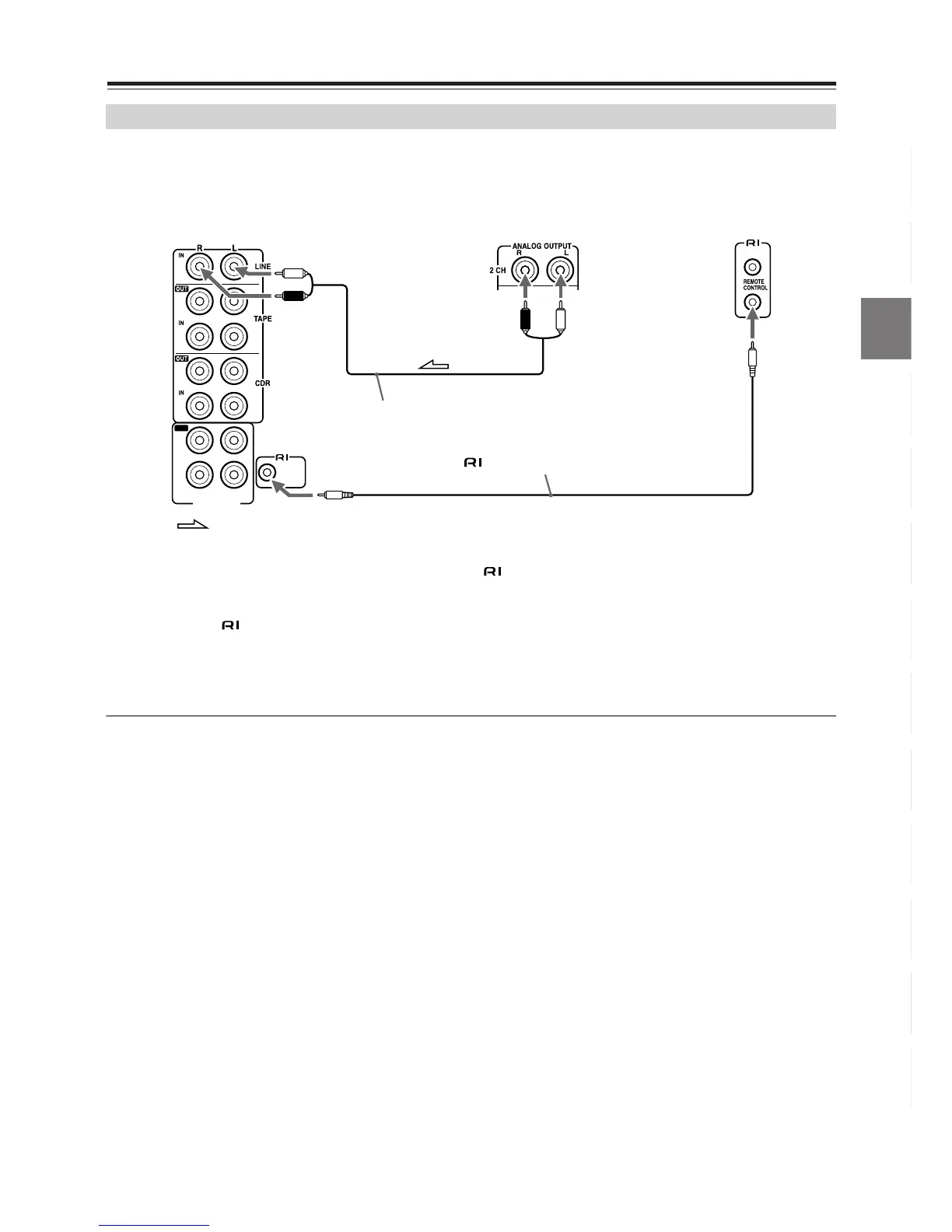

The following diagram illustrates how to connect an optional Onkyo DVD player.
Connect the FR-X7A LINE IN jacks to the DVD player’s analog audio OUTPUT jacks.
What does connecting an Onkyo DVD player using an cable enable you to do?
•You can control a connected Onkyo DVD player using the supplied remote controller. You also need to connect
the RCA/phono audio cable.
•To operate the system, you need to change the source name in the display to DVD (see page 66). (The
default source name in the display is LINE.)
• When the connected Onkyo DVD player plays back, the Input Selector on the FR-X7A is automatically switched
to DVD.
About the LINE jacks
In addition to the previous examples, a laser disc player, satellite broadcast tuner, or VCR may also be connected.
Connect the analog audio output jacks to the unit’s LINE IN jacks using the audio connection cable.
Connecting an Onkyo DVD player
RCA/phono audio cable
white
red
red white
FR-X7A’s
rear panel
: Signal flow
cable supplied with the Onkyo DVD player
Onkyo DVD player rear panel
IN
OUT
R
L
REMOTE
CONTROL
PROCESSOR
To Next Page
