Orbit Power Stride 23 Elliptical OBE655T User Manual

Assembly

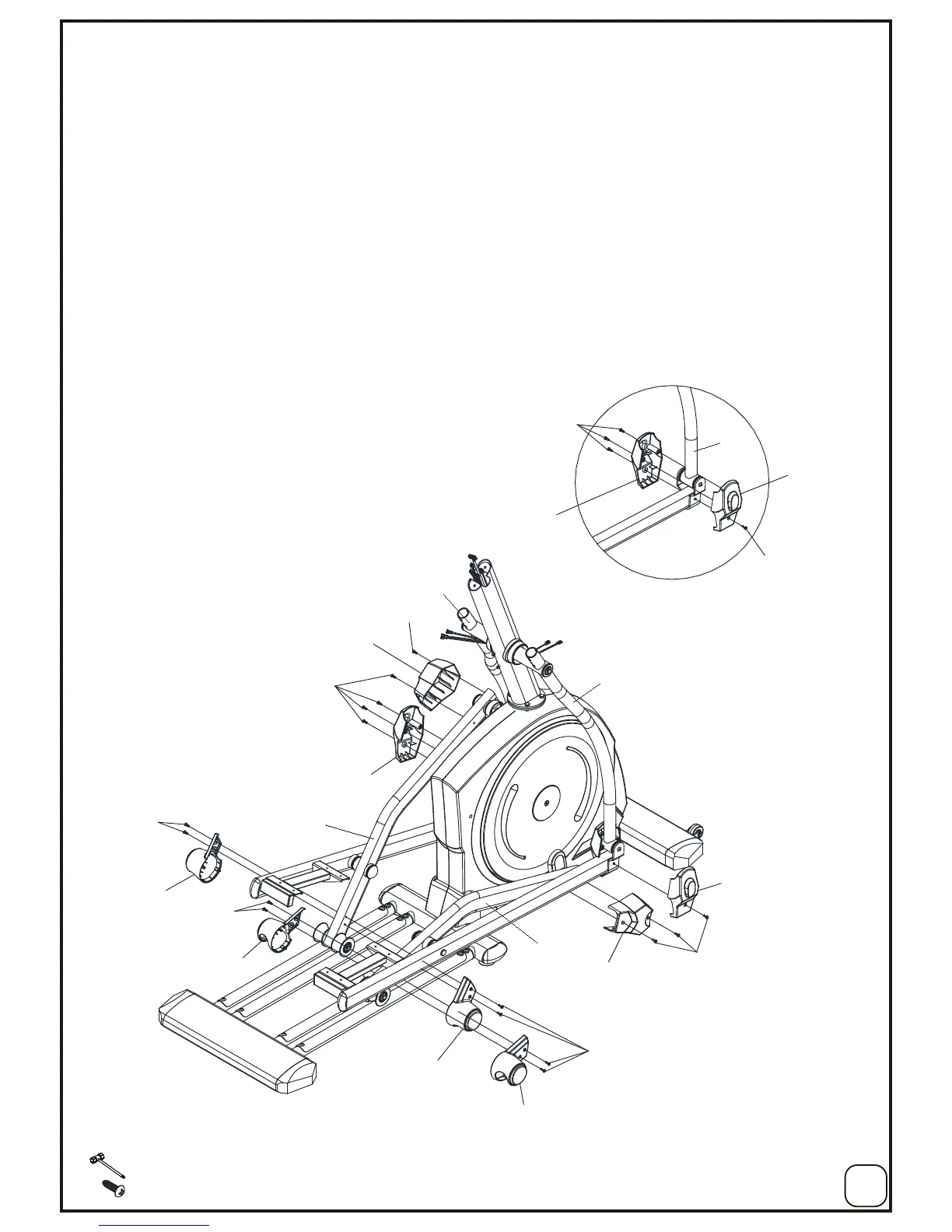

6. Pivot Covers Assembly
Assemble two sets of Pivot Cover(C30/C31) at the pivot of Left and Right Dual Action Arm(A03/A04) and
Foot Pedal bar(A05/A06) with 8 Screws(B21).
Assemble two pcs of Pivot Cover for Crank Link(C35) to the pivot of Right/Left Wheel Bar Set(A08/A07) and
Crank(A11) using 4 Screws (B21).
Assemble two sets of Wheel Caps(C32/C33) to the wheel of the Left and Right Wheel Bar Set(A07/A08) with
8 Screws(B21).
[Tighten bolts with the Hex Tool With Phillips Screwdriver provided]
8
Hex Tool With Phillips Screwdriver (13mm/14mm)
(B21)Screw M5x16mm---20PCs
C33
C32
C32
C33
B21
B21
B21
B21
B21
B21
C35
C35
C31
C30
C30
C31
B21
B21
1.)
2.)
3.)
A04
A04
A03
A07
A08

Orbit Power Stride 23 Elliptical OBE655T Specifications

General

Brand	Orbit
Model	Power Stride 23 Elliptical OBE655T
Category	Elliptical Trainer
Language	English
