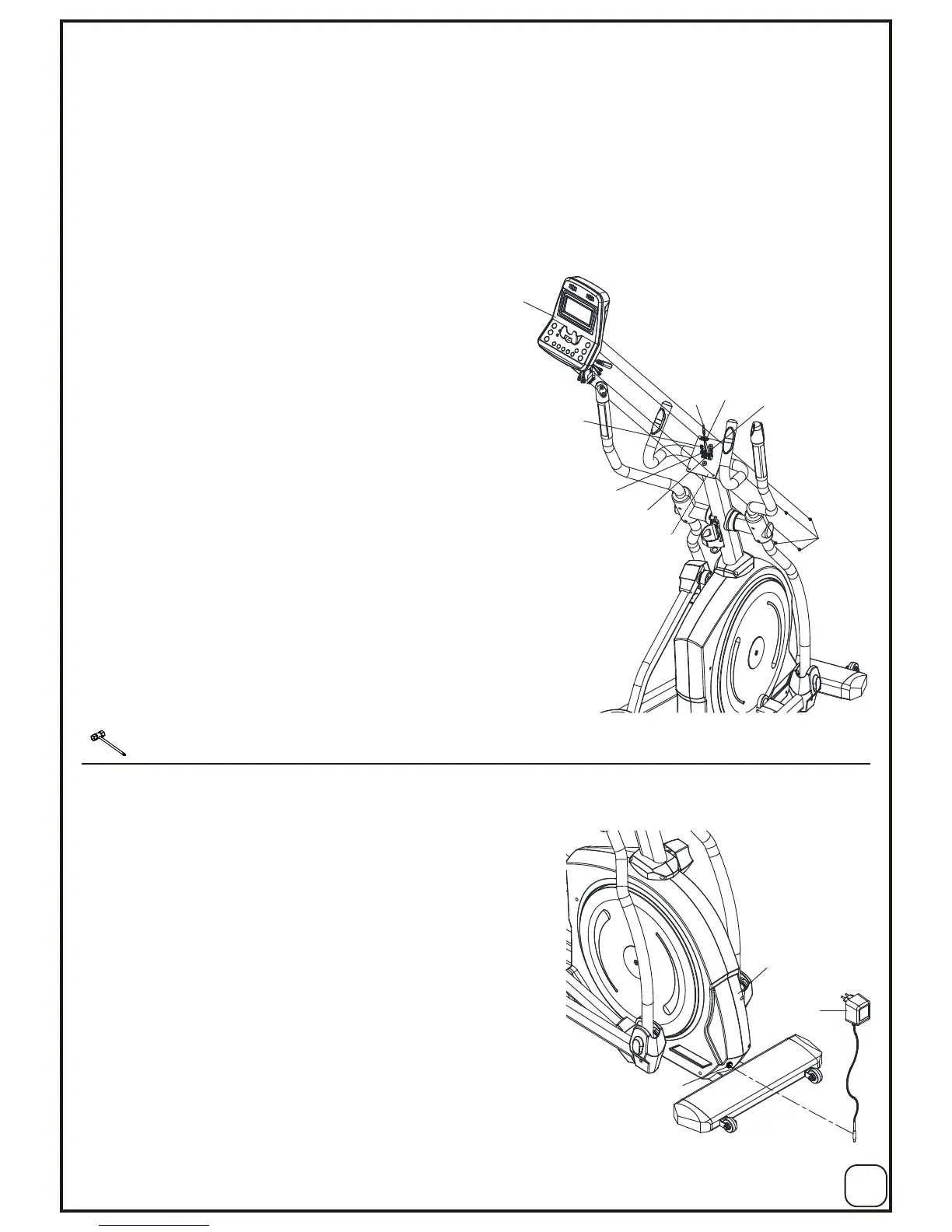

Assembly
14. AC Adaptor Installation
13. Computer Installation
Remove 4 Screws (B17) from the back of the Computer (D02).
Connect the Extension Sensor Wire I (D04), Hand Pulse Sensor Wire (D10),
Left/Right Quick Key Extension Wire (D17/D18), and Big Handpulse Sensor Wire (D15) to the wires that come
from the Computer (D02) and then attach the Computer (D02) onto the top end of the Hand Pulse Handlebar
(A15) with 4 Screws (B17) that were removed.
[Remove/Tighten bolts with the Hex Tool with Phillips Screwdriver provided]
Plug the AC Adaptor (D08) into the power jack of the Power
Supply Cable (D09) on the front of the Main Frame (A01).
Make sure the specifications of power supply on the Adaptor
is correct before pulg in.
Plug the other end of the AC Adaptor (D08) into the electrical wall
outlet.
D02
B17
D10
D04
D17
D18
D15
D15
1.)
2.)
1.)
2.)
D08
D09
A01
Hex Tool With Phillips Screwdriver (13mm/14mm)
A15
