Orbit Power Stride 23 Elliptical OBE655T User Manual

10

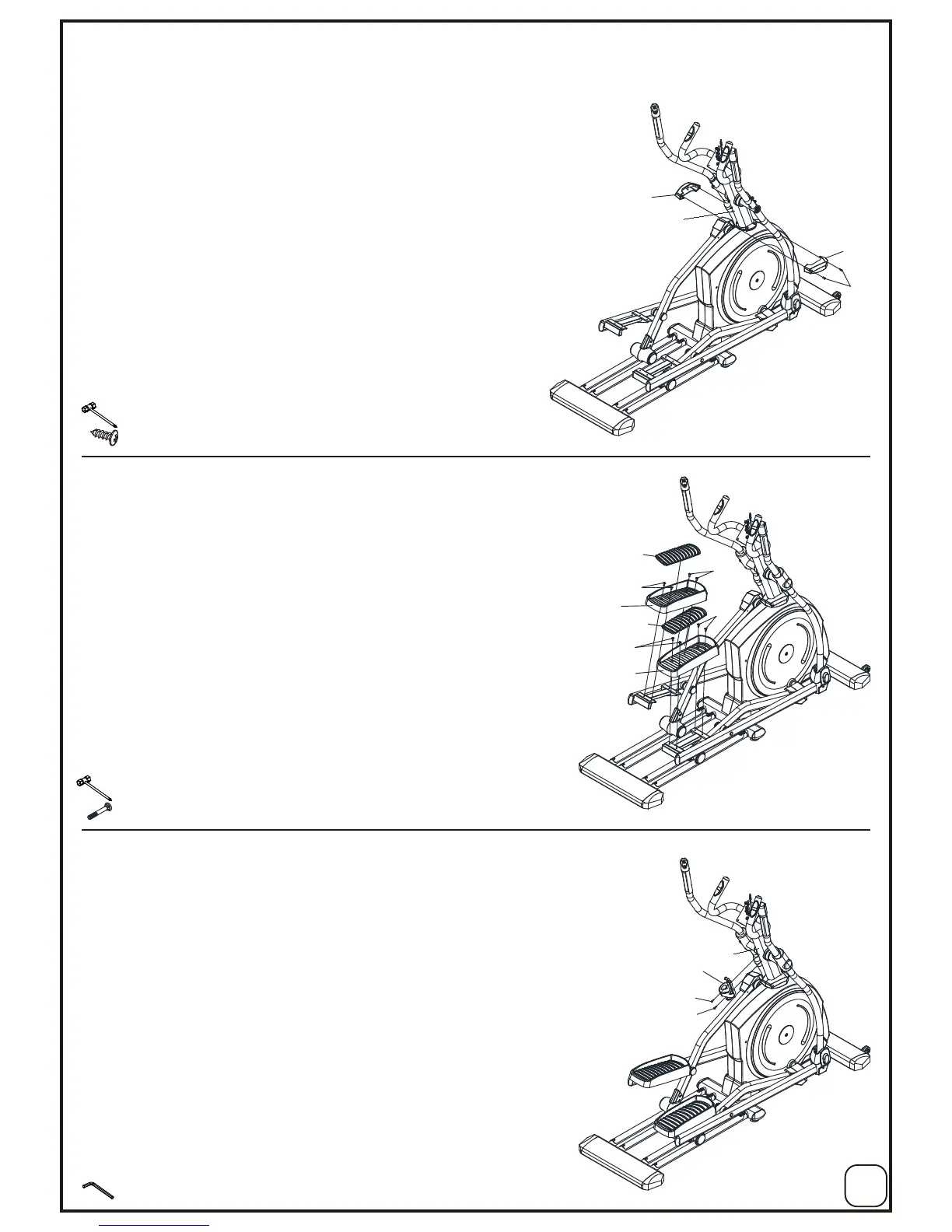

Assembly
10. Left/Right Front Post Decorative Covers Installation
11. Foot Pedal & Pedal Pad Installation
Use 8 Bolts(B23) to assemble the Left and Right Foot Pedal(C12).
Peel off the plastic cover of the foam tape under the Cushion Pad(C34)
and attach the Cushion Pad to the Foot Pedal(C12).
[Tighten bolts with the Hex Tool with Phillips Screwdriver provided]
Attach the Left/Right Front Post Decorative Covers (C07/C08) onto the
Front Post (A02) with 2 Screws (B21).
[Tighten bolts with the Hex Tool with Phillips Screwdriver provided]
(B23)Bolt M6x15mm---8PCs
C07
C08
B21
1.)
1.)
2.)
C12
C12
B23
B23
B23
B23
C34
C34
C27
B15
B15
12. Bottle Holder Installation
Remove 2 Bolts (B15) from the Front Post (A02).
Attach the Bottle Holder (C27) onto the Front Post (A02) with
2 Bolts (B15) that were removed.
[Remove/Tighten bolts with the M4 Allen Wrench provided]
M4 Allen Wrench
(B21)Screw M5x16mm---2PCs
Hex Tool With Phillips Screwdriver (13mm/14mm)
Hex Tool With Phillips Screwdriver (13mm/14mm)
1.)
2.)
A02
A02
