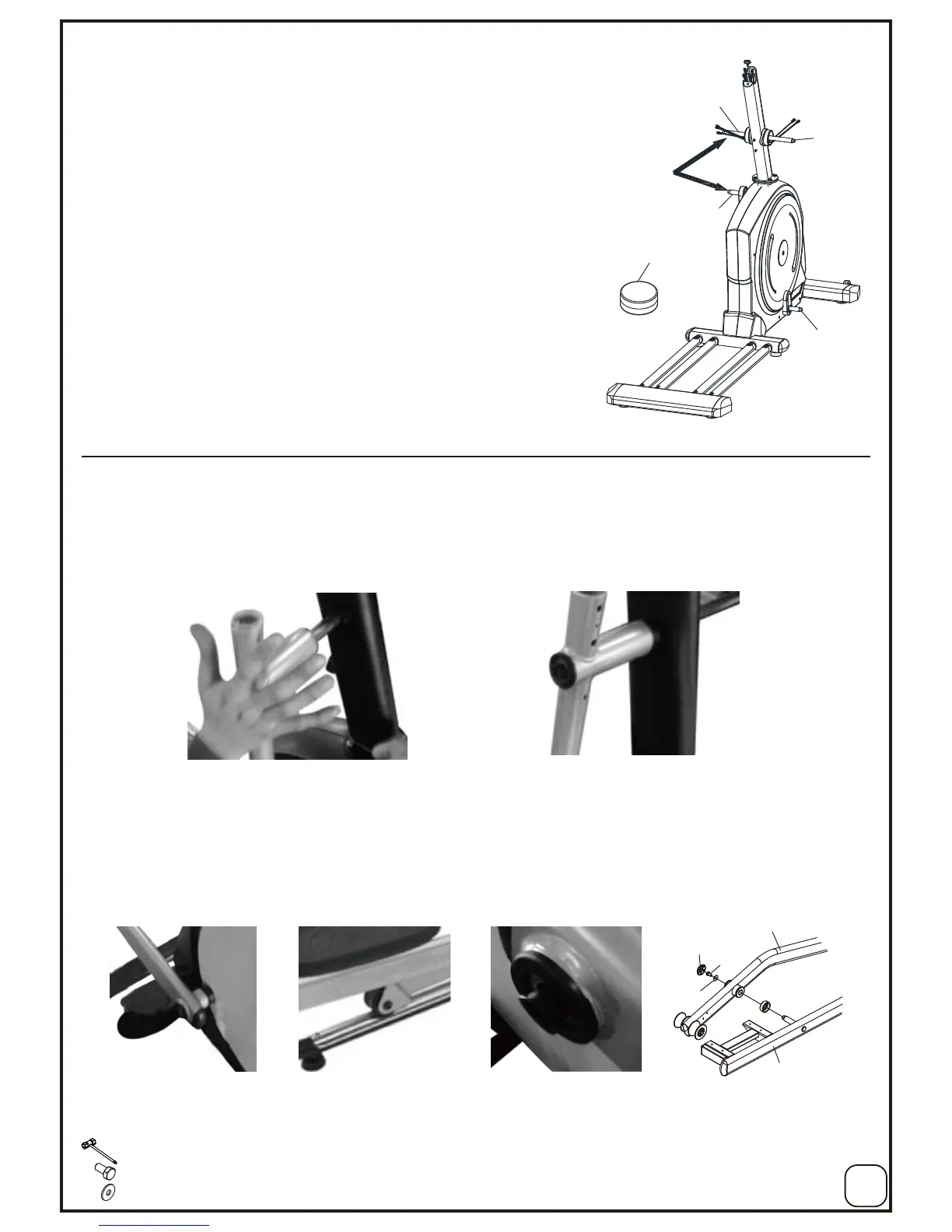

Assembly
4. Lubricating the Horizontal Axle and Crank Axle
Apply lubricant to the horizontal axles of the Front Post (A02)
and the axles of the right and left Crank (A11).
5. Left and Right Foot Pedal Linkbar Installation
5
Remove the tape from the joint of the Right Dual Action Arm Set (A04).
Insert the Right Dual Action Arm Set (A04) all the way onto the horizontal axle of the Front Post (A02) and secure
the Right Dual Action Arm Set (A04) in position with 1 Bolt (B32) and 1 Washer (B33).
[Tighten bolt with the Hex Tool with Phillips Screwdriver provided]
Remark: Gently apply lubricant evenly on Front Post (A02).
Brush tool is recommended.
Hex Tool With Phillips Screwdriver (13mm/14mm)
(B33)Washer 5/16”x20x2.0t---6PCs
(B32)Bolt M8x16mm---6PCs
Lubricant
A02
A02
A11
A11
10
Lubricating the
horizontal axle
and crank axle.
Remove the tape from the joint of the Right Wheel Bar Set (A08).
Insert the Right Wheel Bar Set (A08) onto the Crank (A11) axle.
The Wheel (C20) has to be placed on the Rail Aluminum Plate (F01).
Secure the Right Wheel Bar Set (A08) in position with 1 Bolt (B32) and 1 Washer (B33).
Insert the axle of the Right Foot Bar Set(A06) onto the Right Wheel Bar Set(A08), secure the Right Foot
Bar Set(A06) in position with 1 Bolt (B32) and 1 Washer (B33).
[Tighten bolt with the Hex Tool with Phillips Screwdriver provided]
CAUTION: Make Sure The Bushing Spacer (B41) Was Perfectly In Position Before Securing
The Bolts.
1.)
2.)
3.)
4.)
5.)
6.)
C11
B32
B33
A08
A06
To Next Page
