Orbit Power Stride 23 Elliptical OBE655T User Manual

9
Assembly

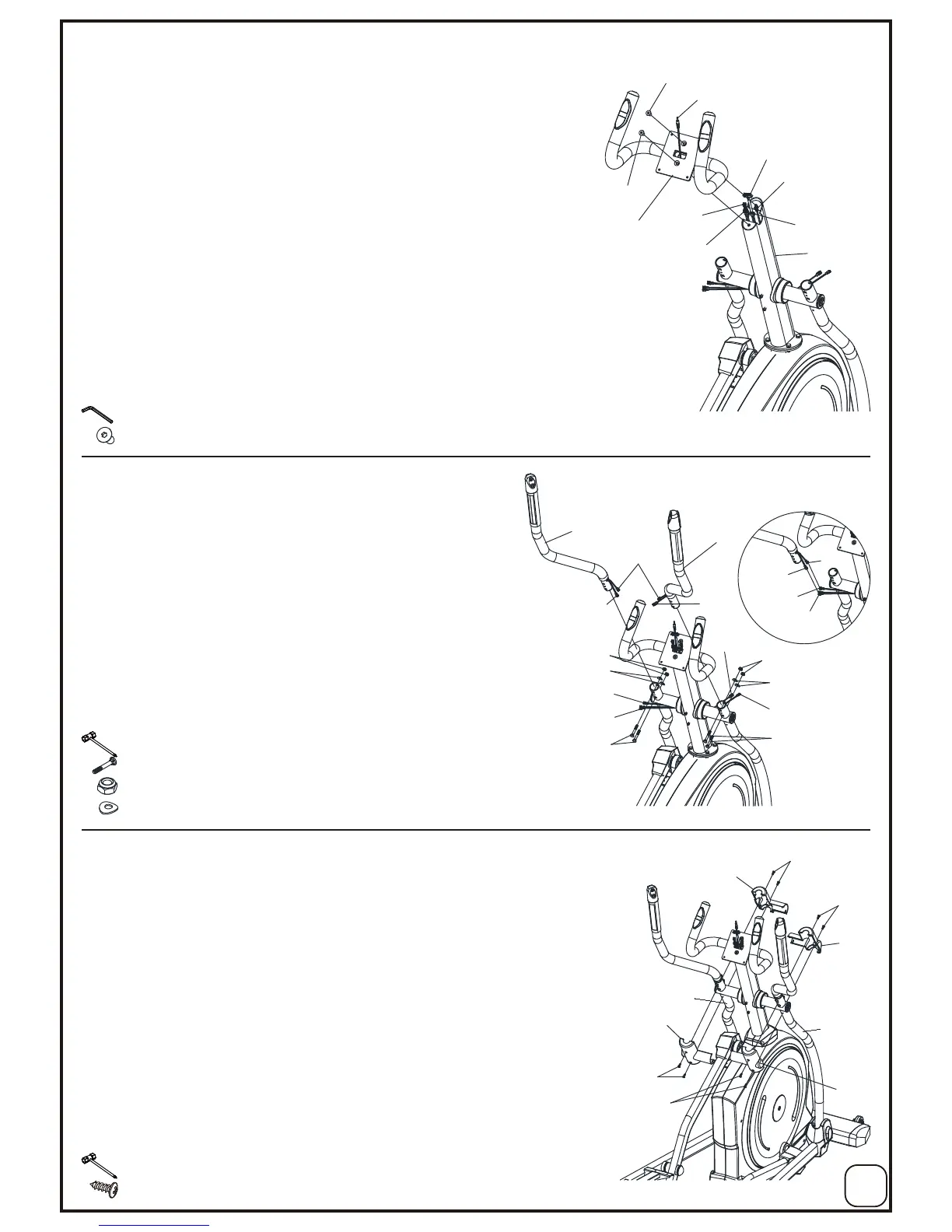

7. Hand Pulse Handlebar Installation
8. Right/Left Handrails Installation
Connect All plugs of cabel of Right/Left Quick Key(D17/D18)
and Big Hand Pulse(D15).
Slide the Left and Right Handrails(A13/A14) into the Dual
Action Tube.
Use 4 Bolts(B28), 4 Washers(B30) and 4 Nuts(B29).
[Tighten nylon nuts with the Hex Tool with Phillips Screwdriver
provided]
9. Handrail Arm Decorative Covers-A/B Installation
Attach the Handrail Arm Decorative Cover-A (C17) and Handrail Arm
Decorative Cover-B (C18) onto the Left Handrail Arm (A03) with
4 Screws (B21).
Attach the Handrail Arm Decorative Cover-A (C17 and Handrail Arm
Decorative Cover-B (C18) onto the Right Handrail Arm (A04) with
4 Screws (B21).
[Tighten bolts with the Hex Tool with Phillips Screwdriver provided]
Slide all computer cables(D04)(D15 x 2 )(D17/D18) through the slot of
Hand Bar Post (A15), use 2 Bolts (B40) to assemble the Hand Bar
Post to the Upright Support Post(A02).
[Tighten bolts with the M5 Allen Wrench provided]
(B40)Bolt M8x25mm---2PCs
(B28)Bolt M8x50mm---4PCs
Hex Tool With Phillips Screwdriver (13mm/14mm)
(B21)Screw M5x16mm---8PCs
B40
B40
A02
D10
D04
D15
D15
D18
D17
A15
B28
B28
B30
B30
B29
B29
D15
D15
D18
D15
D18
D15
D18
D15
D17
A13
A14
D18
Allen Wrench
1.)
1.)
2.)
(B29)Nylon Nut M8x7.7t---4PCs
(B30)Curve Washer M8x20x1.5t---4PCs
Hex Tool With Phillips Screwdriver (13mm/14mm)
C17
C18
B21
B21
B21
B21
C18
C17
1.)
2.)
D17
A04
A03
