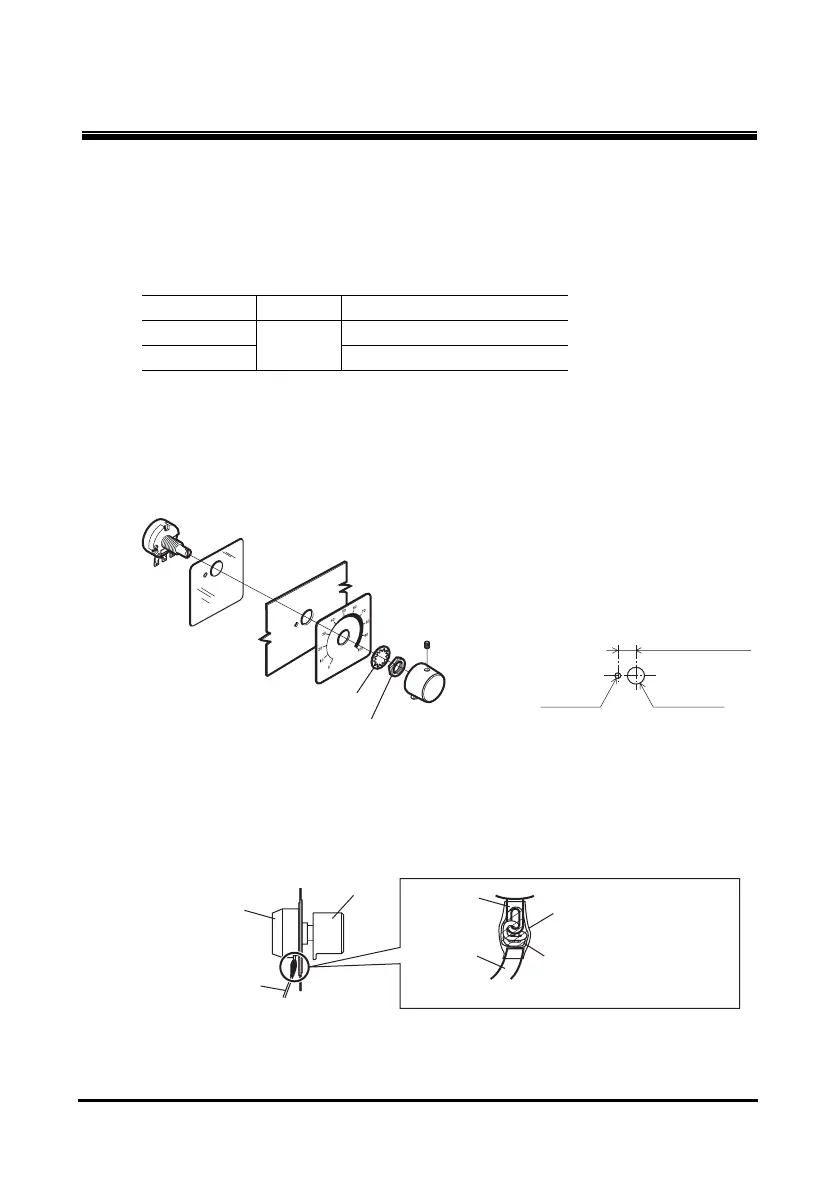

10 Appendix
−50−
10 Appendix
10.1 Accessories (sold separately)
Extension cable
Use this cable to extend the wiring distance between the motor and driver.
Model Length Applicable product
CC02BLH BLH015, BLH230, BLH450
CC02AXH2
1.5 m
(4.9 ft.)
BLH5100
External potentiometer
Model: PAVR-20KZ
• How to install the external potentiometer
Insert the external potentiometer as shown below.
Nut
Tightening torque:
0.45 N·m (3.9 lb-in)
Setscrew (M4)
Tightening torque:
0.4 N·m (3.5 lb-in)
• Reference mounting hole
dimensions
[Unit: mm (in.)]
Ø3 (0.12)
7.5±
0.4
(0.3±
0.02
)
Ø10 (0.39)
Dial
Toothed washer
Dial plate
Mounting plate
Insulation sheet
Variable resistor
• Soldering the variable resister terminals and the lead wires
Cover a heat-shrinkable tube over the soldered part to insulate.
Soldering condition: 235 °C (455 °F), less than 5 sec.
Lead wire
Lead wire
Terminal
Heat-shrinkable tube
Dial
Variable resistor
Solder (Pass the lead wire
through the terminal hole and
give it two or three turns.)
To Next Page
