5.Communication with PC
5. Communication with PC
The oscilloscope supports communications with a PC through USB, LAN port or
Wi-Fi. You can use the Oscilloscope communication software to store, analyze,
display the data and remote control.
To learn about how to operate the software, you can push F1 in the software to
open the help document.
Here is how to connect with PC. First, install the Oscilloscope communication
software on the supplied CD. Then there are several ways of connection to choose
from.
Using USB Port
(1) Connection: Use a USB data cable to connect the USB Device port in the
right panel of the oscilloscope to the USB port of a PC.
(2) Install the driver: Run the Oscilloscope communication software on PC, push
F1 to open the help document. Follow the steps of title "I. Device connection"
in the document to install the driver.
(3) Port setting of the software: Run the Oscilloscope software; click
"Communications" on the menu bar, choose "Ports-Settings", in the setting
dialog, choose "Connect using" as "USB". After connect successfully, the
connection information in the bottom right corner of the software will turn
green.

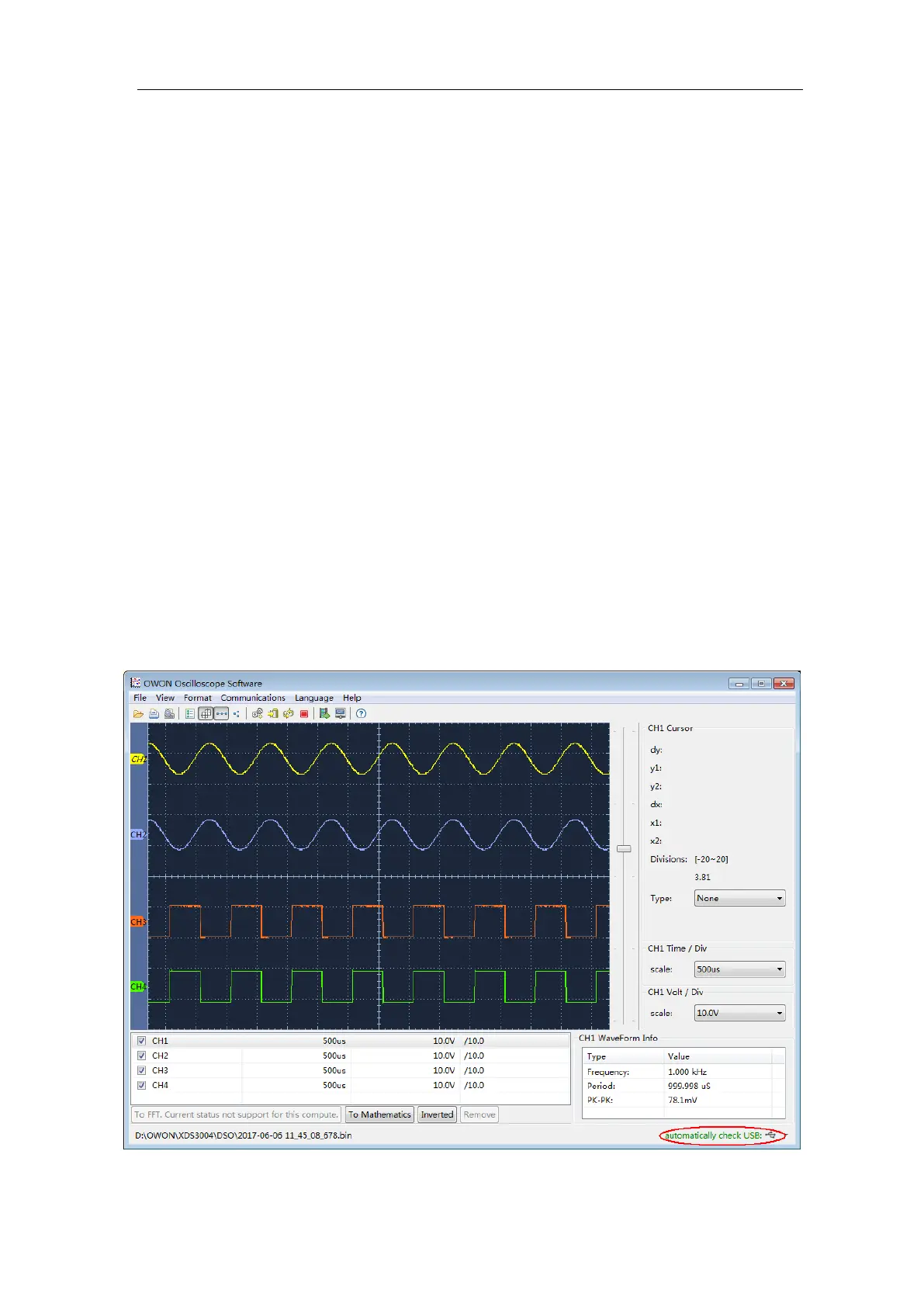

Figure 5-1 Connect with PC through USB port
