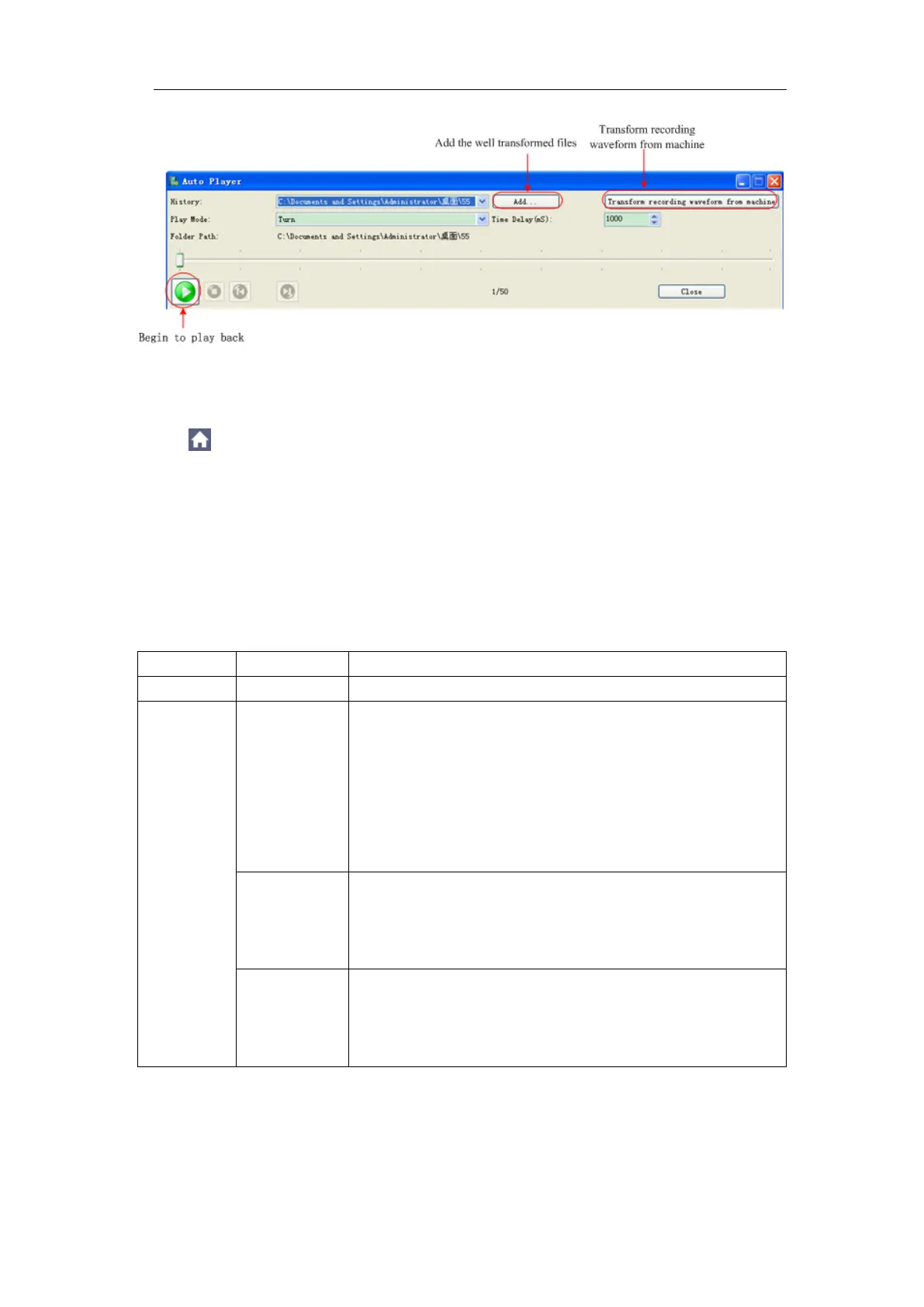

Figure 4-17: Play back waveform by software
Clone and Recall a waveform
Click to call up the menu panel. Click the Save softkey on panel. Select
Type in the bottom menu, select Clone in the left menu.
You can clone one or two channel waveforms between two cursors, and save
it as a cloned waveform into a USB memory device. The cloned waveform files
saved to a USB memory device are saved with the extension "ota".
You can also use OWON AG1022F or AG2052F signal generator to read *.ota
files and recall the cloned waveforms.
Clone Wave menu shows as follows:
Select the clone function.
Select the source mode.
The cloned waveform includes one waveform,
which will be used for AG Out1
The cloned waveform includes one waveform,
which will be used for AG Out2
The cloned waveform includes two waveforms,
which will be used for AG Out1 and AG Out2
AG Output
Out1
CH1 CH2
CH3 CH4
Select the source, which will be used for AG Out1
AG Output
Out2
CH1 CH2
CH3 CH4
Select the source, which will be used for AG Out2
To Next Page
