4.Advanced User Guidebook

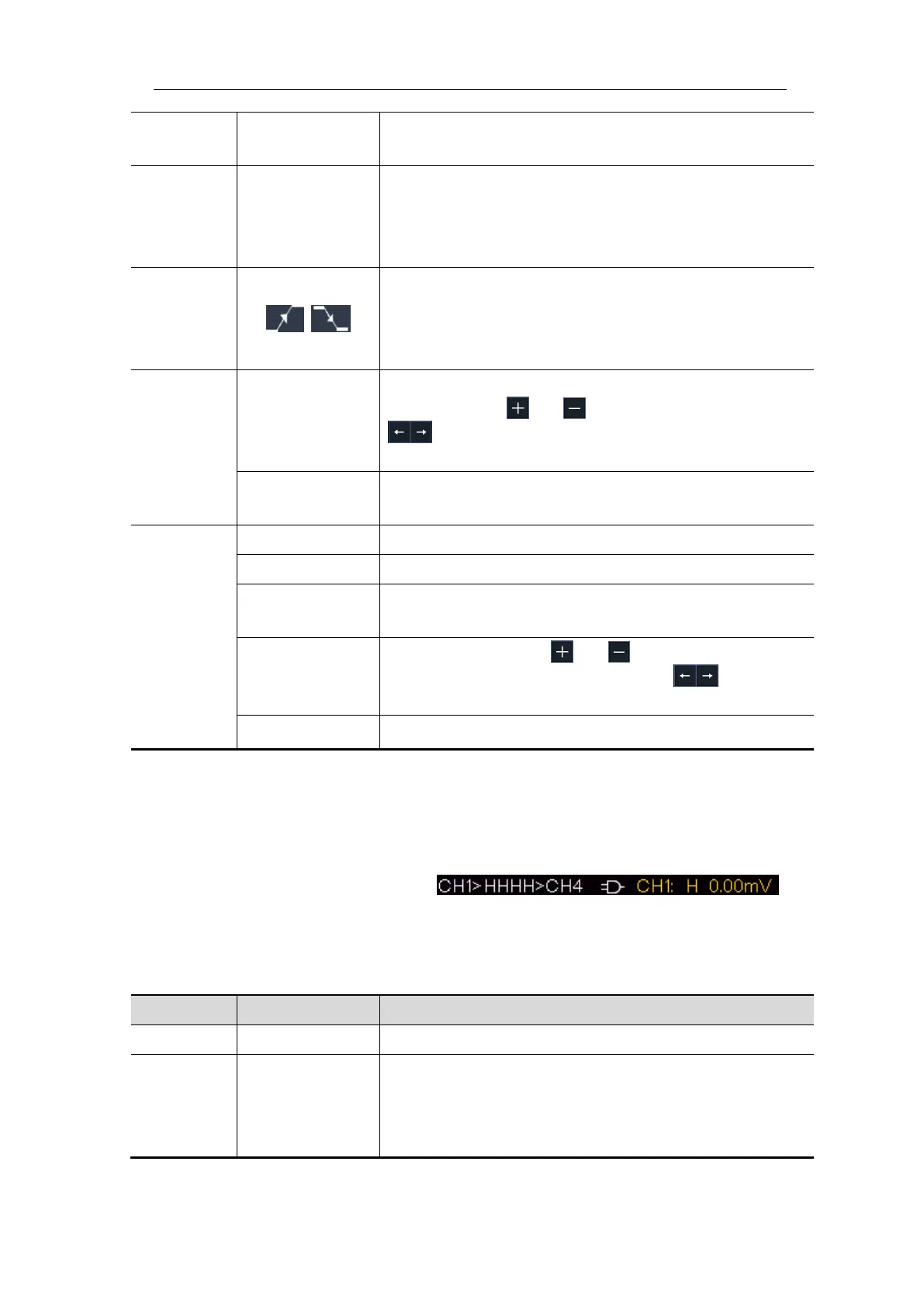

Set vertical channel trigger type as Nth Edge
trigger.
Select CH1 as the trigger source
Select CH2 as the trigger source
Select CH3 as the trigger source
Select CH4 as the trigger source
Trigger on the rising edge of the input signal when
voltage level meets the specified trigger level.
Trigger on the falling edge of the input signal when
voltage level meets the specified trigger level.
Set idle time before the edge counting in Nth Edge
Trigger. Click or to set idle time, click
to move cursor to choose which digit to be
set. Available range is 30ns-10s, default 100ns.
Set the edge number value of “N” in Nth Edge
trigger.
Acquire waveform even no trigger occurred
Acquire waveform when trigger occurred
When trigger occurs, acquire one waveform then
stop
100 ns - 10 s, click or to set time interval
before another trigger occur, click to move
cursor to choose which digit to be set.
Set the trigger sensitivity.
Logic Trigger
Trigger according to logic relation.
In Logic Trigger mode, the trigger setting information is displayed on bottom
right of the screen, for example,
,
indicates that trigger type is Logic, logic mode is AND, CH1 high level and
trigger level is 0.00mV.
Logic Trigger menu list:
Set vertical channel trigger type as Logic trigger.
Set logic mode as AND.
Set logic mode as OR.
Set logic mode as XNOR.
Set logic mode as XOR.
To Next Page
