9.7 Accessories
9.7.1 External control panel (not available for COMPAX 1000SL)
Use the control panels to control COMPAX via the digital inputs. They contain the
following functions:
Release
TEACH
Search
machine
zero
Move to
machine
zero
Move to
real zero
Break
block
TEACH
real zero point
TEACH
block
Error/
warning/
quit
No error
No
warning
I7 / I8
O7 / O8
JOG+
JOG-
START
Ready for
START
Stop block
TEACH
ZERO
TEACH
HOME
OK
QUIT
NO
WARNING
QUIT
NO
ERROR
I7
O7
I8
O8
ZERO JOG+ JOG-
START
READY
BREAK STOP

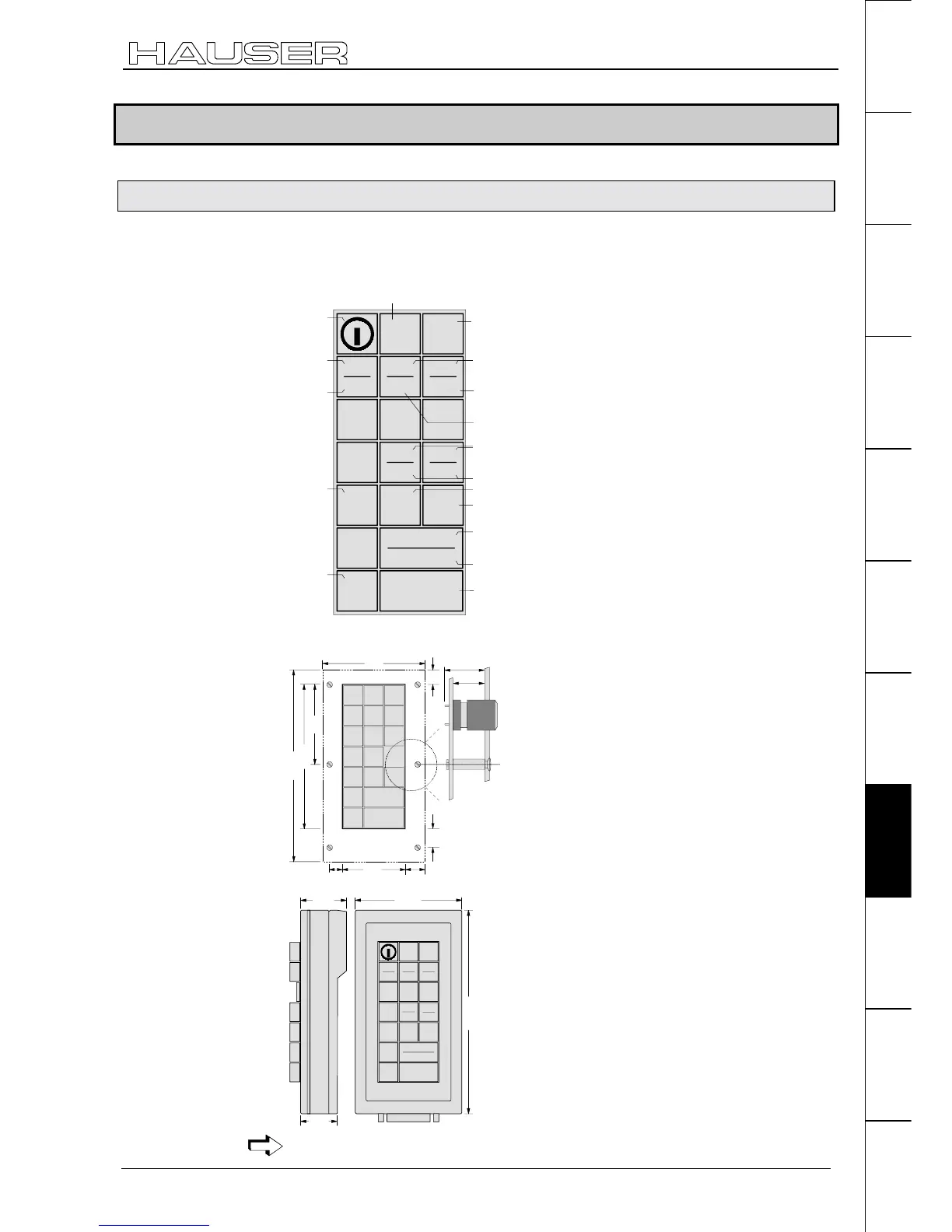

The control panel is available for front plate installation or with housing.
86.0
19.5
15
173
57.80
8.36 14.10
134.0
74.16
14.32
12.34
35
44
195
TEACH
ZERO
TEACH
HOME
OK
QUIT QUIT
NO
WARNING
NO
ERROR
I7
O7
I8
O8
ZERO JOG+ JOG-
START
READY
BREAK STOP
101
The control panels are connected with COMPAX via the cable SSK6/..
BDF1/02: for front
plate installation
BDF1/03: with
housing
