Parker COMPAX-M /-S (L) User Manual

Mains module NMD10/NMD20
NMD connector assignment
23
Unit
hardware
Connector
assignment / cable
Technical dataConfigurationPositioning and
control functions
Optimization
functions
InterfacesAccessories /
options
StatusParameterError list

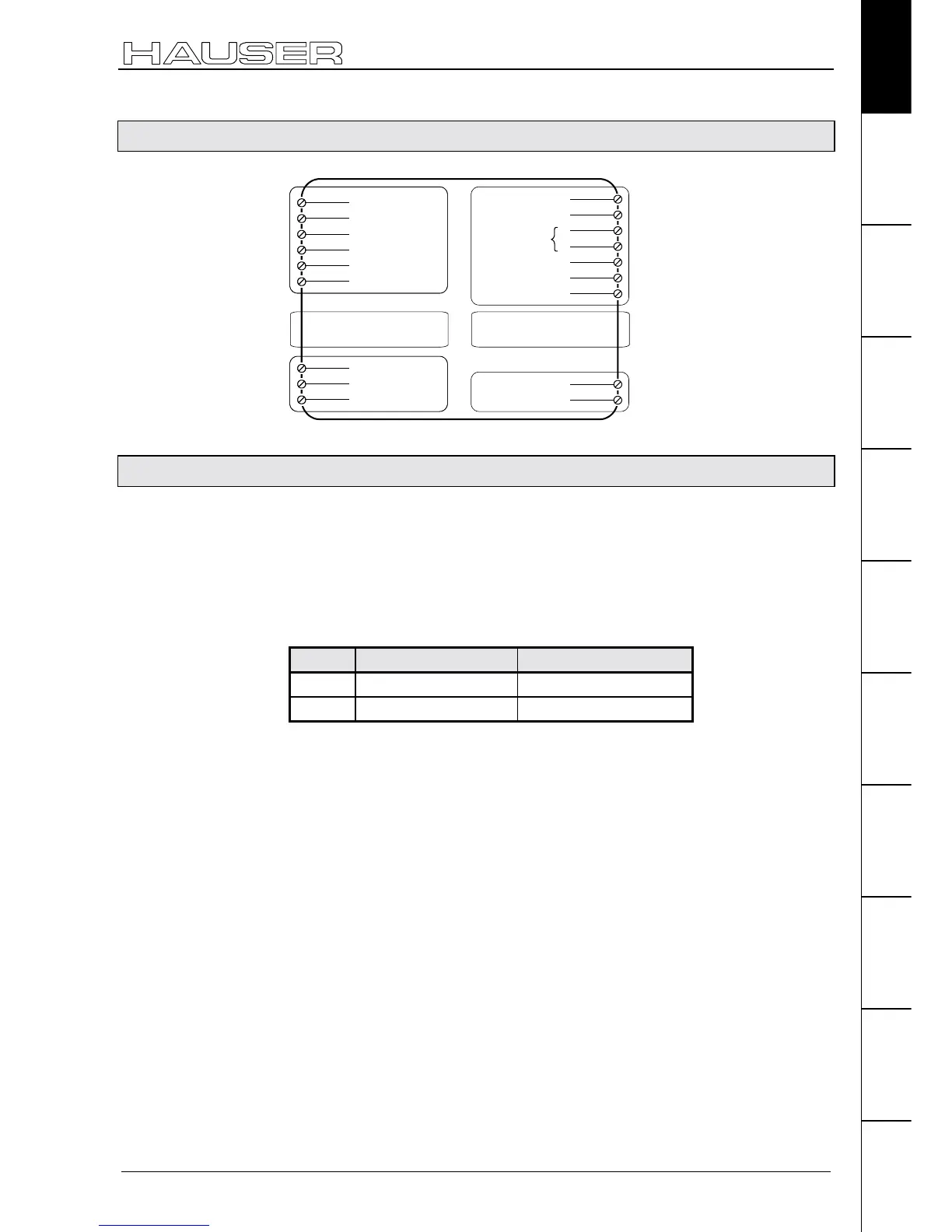

7.3.3 NMD connector assignment
X1/1
L1
X1/2
L2
X1/3
L3
X1/4
PE
X1/5
+24V
X1/6
0V
X1:
voltage
supply
+24V
0V
X3:
Control
voltage
X8/2
GND
X8/1
+24V
X8/3
P
X8/4
S
X8/5
+24V
X8/6
15V-24 V emerg. stop
X8
X8/6
housing
stand by
+LS
-LS
X2:
power inter-
mediate loop
PF
X1/1
L1
X1/2
L2
X1/3
L3
X1/4
PE
X1/5
+24V
X1/6
0V
+LS
-LS
PE
X6: input bus systems X7: output bus systems
Assignment depends on the
bus system
Assignment depends on the
bus system
7.3.4 Technical data / power features NMD
Function
Generates DC current when run directly off a mains source.
CE conformity
!
EMC immunity/emissions as per EN61800-3.
!
Safety: VDE 0160/EN 50178.
Output power
Nominal power Peak power
NMD10: 10 kW 20 kW (<3s)
NMD20: 20 kW 40 kW (<3s)
Mains fuse protection
NMD10: 16A (K circuit breaker in 20A)
NMD20: 35A
K circuit breaker or similar Neozed fusible cut-out.
Supply voltage up to max. 3*500V AC
!
Operating range: 3*80V AC - 3*500V AC, 45 - 65 Hz.
Typical AC mains: 400V ±10%; 460V ±10%; 480V ±5%
!
Layout of contactors for the power supply:
Capacity according to device performance: Application group AC3.
Control voltage
!
21.6V up to 26.4V DC (0.8A)
!
Ripple: < 1V
SS
!
Fuse protection: max. 16A
Dissipation power
!
without fan: max. 120W (standard)
!
with fan: max. 250W.
