Connections to the motor
51
Unit
hardware
Connector
assignment / cable
Technical dataConfigurationPositioning and
control functions
Optimization
functions
InterfacesAccessories /
options
StatusParameterError list
7.8.2 Additional brake control
COMPAX controls the motor retaining brake independently (also see Page 123).
When running applications which require additional brake control note the
following, based on the unit type used.

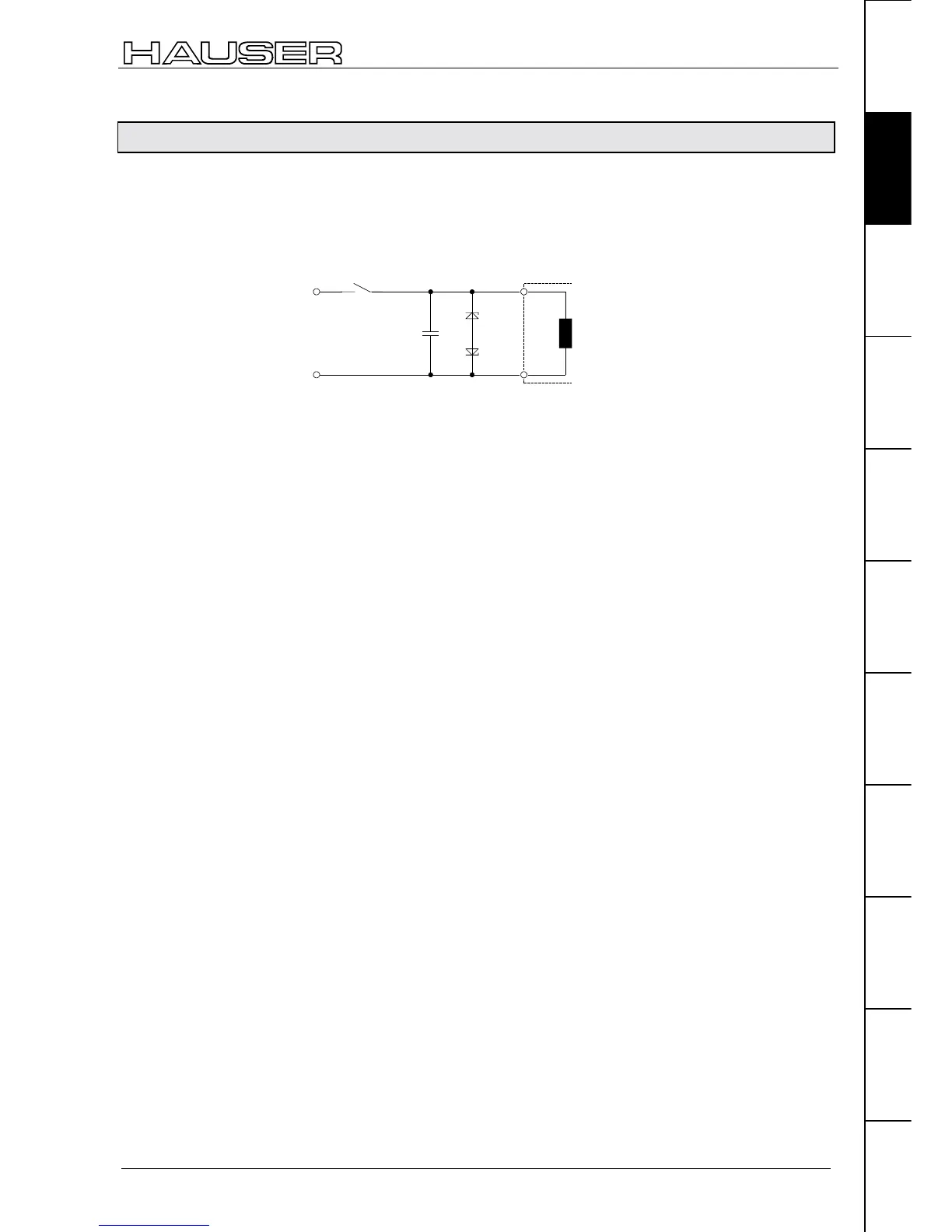

With these units, you must implement measures for suppression. Note the
following application example:
Br.+
BR.-
33V
33V
0,47uF
contact to external
brake control
stop
brake
within
motor
These protective measures are available in COMPAX-M / COMPAX 45XXS /
COMPAX 85XXS for applications without external brake control.
In COMPAX 25XXS (X1/7 and X1/8) and in COMPAX 35XXM (X23: bridge), 2
connections are available for connecting the external contact. These connections
are already bridged in the connector when supplied.
External protective measures are not required for COMPAX 25XXS and COMPAX
35XXM.
External contact connection:
The bridge is removed and is replaced by connecting an external contact.
COMPAX-M /
COMPAX 45XXS /
COMPAX 85XXS,
COMPAX 1000SL
COMPAX 25XXS /
COMPAX 35XXM
