Start-up manual
COMPAX-M / -S
36

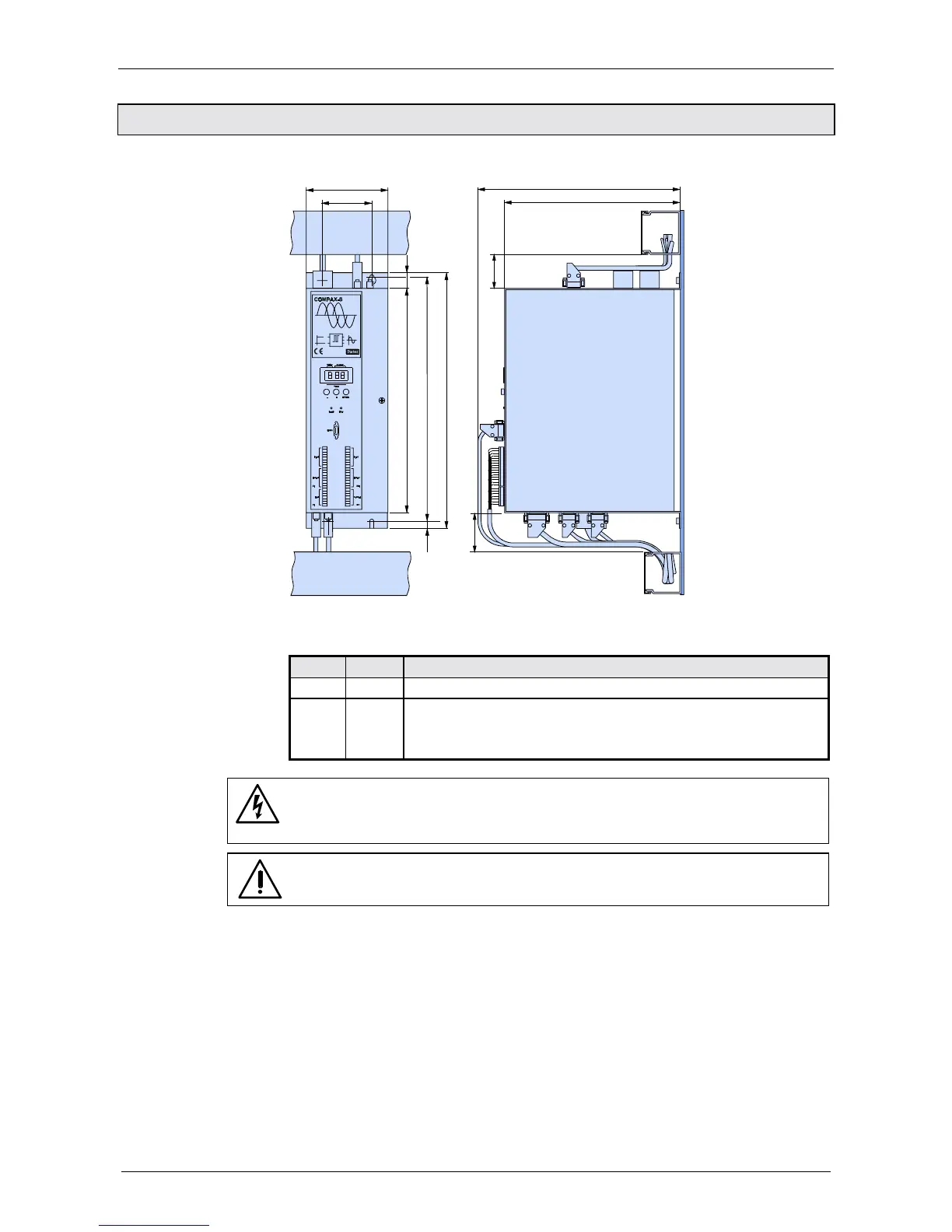

7.6.2 COMPAX 45XXS/85XXS installation / dimensions
395
DIGIT AL
24
378
351
77
125
65
275
325
11
65
Fastening: 4 M5 hex-socket head screws
Installation distance: 130mm (device distance:5mm)
LED
Color
Meaning, when switched on
Ready Green 24V DC present and initialization complete
Error red CPX error present.
or
mains supply or control voltage absent.
Before wiring up, always de-energize the unit.
Even once the mains supply has been switched off, dangerous
levels of voltage can remain in the system for up to 5 min.
When working with motors without a holding brake, the brake lines
must not be connected to COMPAX
Meaning of the
LEDs on the front
plate
