Accessories and options
COMPAX-M / -S
ServoManager
200
9.7.6 ServoManager
Use the ServoManager to process complete COMPAX projects; it is included with
COMPAX. It contains the following program modules:
♦
ParameterEditor: for configuring and parametrizing COMPAX.
♦
ProgramEditor: for creating COMPAX programs
♦
Terminal: for working directly on the connected COMPAX.
The ServoManager and the program modules are described in a separate manual.

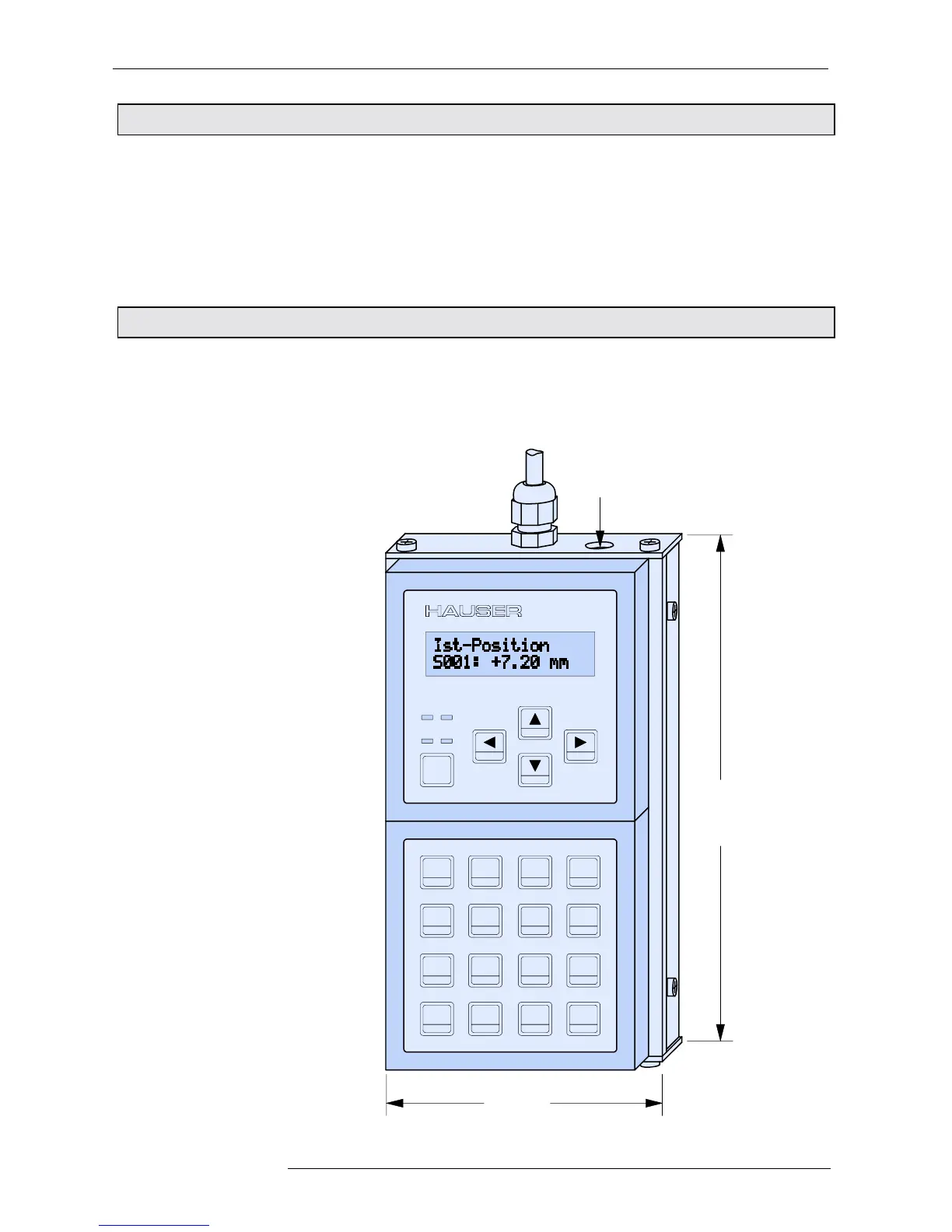

9.7.7 Hand-held terminal
The BDF2/01 hand-held terminal is a simple aid with which you can operate and
easily configure COMPAX with the guided menus. The hand-held unit is connected
to COMPAX X6 and powered via the RS232 interface. It is therefore suitable for
rapid diagnosis and supporting start-up.
100mm
180mm
COMPAX
789
456
123
+/- 0 .
NO
YES
Esc
Ent
DELETE
SHIFT
P
N
INSERT
H1 H2
SHOK
REPEAT IF OUTPUT F1
F2RETURNGOSUBGOTO
POSA SPEED ACCEL F3
F4ENDWAITPOSR
depth:
45mm
5V-plug for
RS232-cable >5m.
HB-plug 1,95/5,5mm
control knob 6mm
polarity: + outside
Design:
