Pentair SUPERFLO VST User Manual

SUPERFLO® VST, SUPERFLO
®
VS and SUPERMAX® VS Variable Speed Pumps Installation and User’s Guide
21

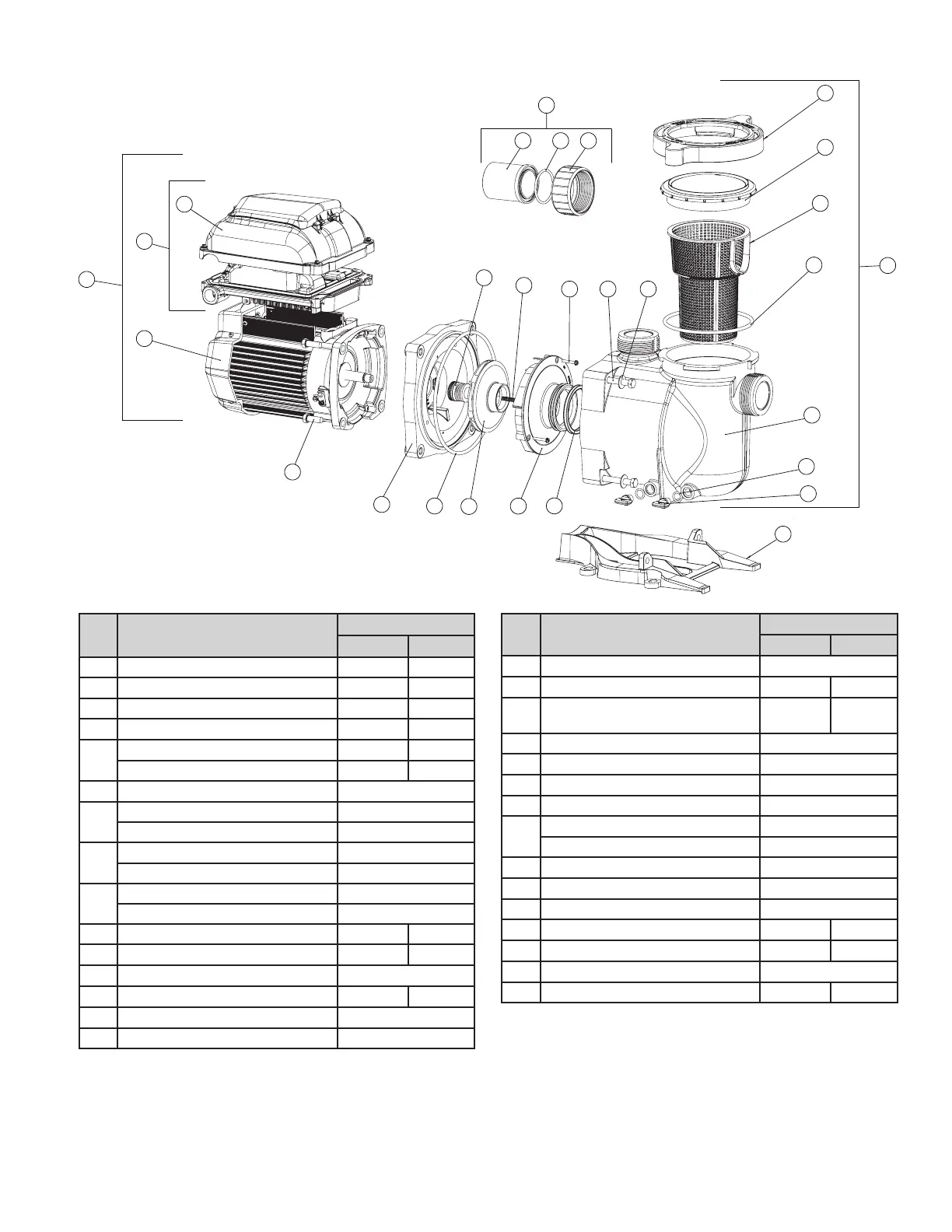

Pumps Manufactured BEFORE 11/02/20
1
3
5
6
23
7
22
21
8
14
15
16
17
12
18
2
4
25
26 27
28
10
9
20
19
11
13
24
(-) Not shown
Item Description
Part No.
Almond Black
1 Drive Cover 353123 353124
2 Drive Kit 353127 353128
3 Motor 353134S 353135S
4 Motor/Drive Assembly 353132S 353133S
5
Sealplate (Mfg. before 6/17/19) 356012 355612
Sealplate (Mfg. after 6/17/19) 356071 356072
6 Sealplate Gasket 355619
7
Impeller (Mfg. before 6/17/19) 355074
Impeller (Mfg. after 6/17/19) C105-238PDCA
8
Di󰀨user (Mfg. before 6/17/19) 355618
Di󰀨user (Mfg. after 6/17/19) 355949
9
Di󰀨user Seal (Mfg. before 6/17/19) 355030
Di󰀨user Seal (Mfg. after 6/17/19) 355331
10 Base 350094 351094
11 Drain Plug (Qty. 2) 071131 357161
12 Drain Plug O-ring (Qty. 2) 192115
13 Strainer Pot 350089 351089
14 Lid O-ring 357255
15 Strainer Basket 355667
Item Description
Part No.
Almond Black
16 Lid 350091
17 Locking Ring 350090 351090
18
Strainer Pot Assembly (includes
items 11-17)
353010 353110
19 Washer, 3/8” SS (Qty. 4) 072184
20 Bolt, Hex, 3/8-16 x 2-1/4 (Qty. 4) 355621
21 Di󰀨user Screw (Qty. 3) 355334
22 Impeller Screw 355389
23
Shaft Seal (Mfg. before 6/17/19) 354545S
Shaft Seal (Mfg. after 6/17/19) 17351-0101S
24 Bolt, Hex, 3/8-16 (Qty. 4) 354290
25 Union Adapter (Qty. 2) 350093
26 Union Adapter O-ring (Qty. 2) 6020018
27 Union Nut (Qty. 2) 350092 270141
28 Union Kit (includes items 25-27) (Qty. 2) 350157 351157
- Digital Input Wiring Kit, Almond, 25 ft. 353129Z
- Motor Fan Guard Kit, TEFC/Super-Duty 357923Z 357924Z
