BODY PANELS
19
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

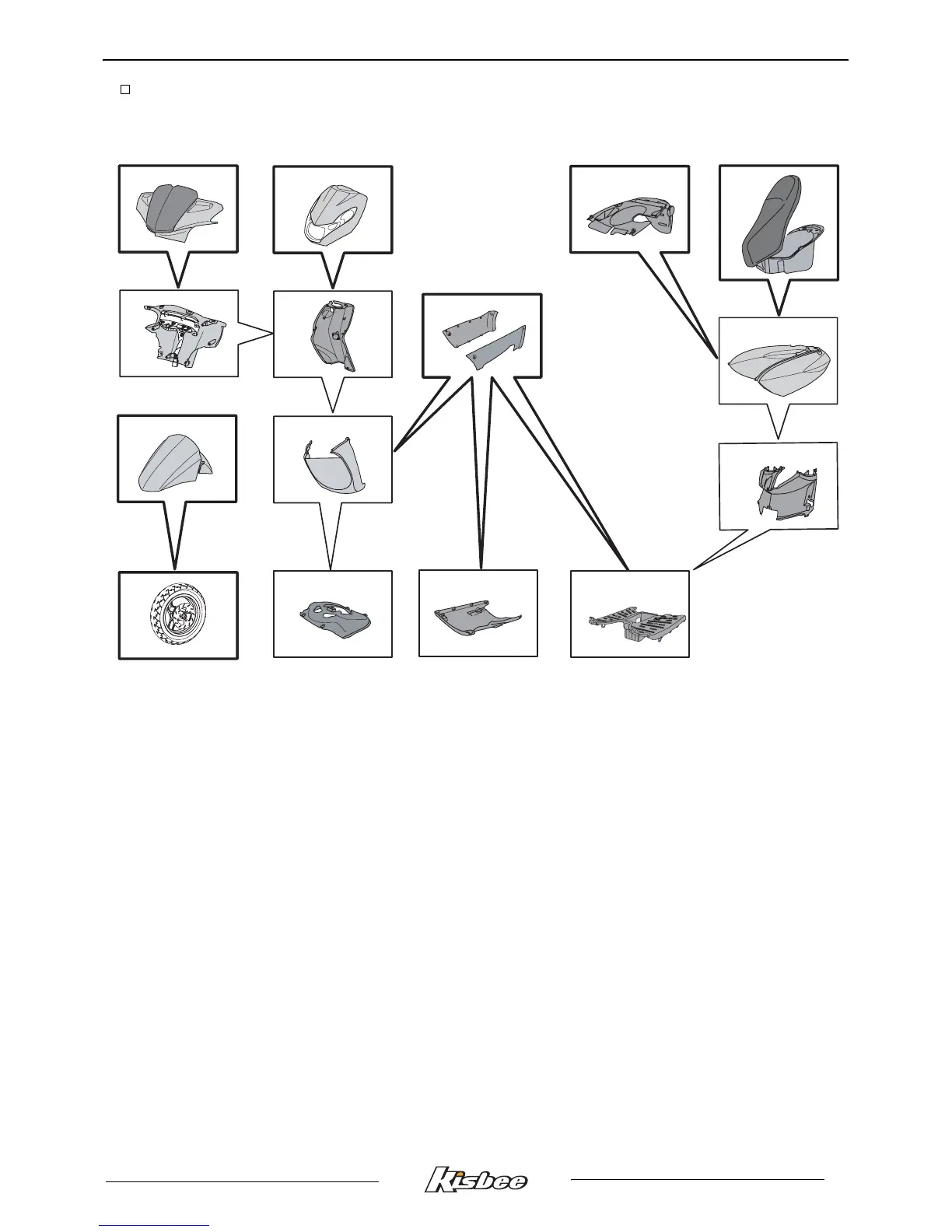

Body component sequence of disassembly
1. Handlebar front fairing
2. Handlebar rear fairing
3. Legshield top panel
4. Rear shield
5. Front lower legshields
6. Front mudguard
7. Front wheel
8. Mudguard
9. Bottom panel
10.Central bottom panel
11.Floor panel
12.Mudflap
13.Saddle and storage compartment
14.Grab handle
15.Rear body panels
16.Central panels
* This item may be removed on its own.
