Controls
7 - 3

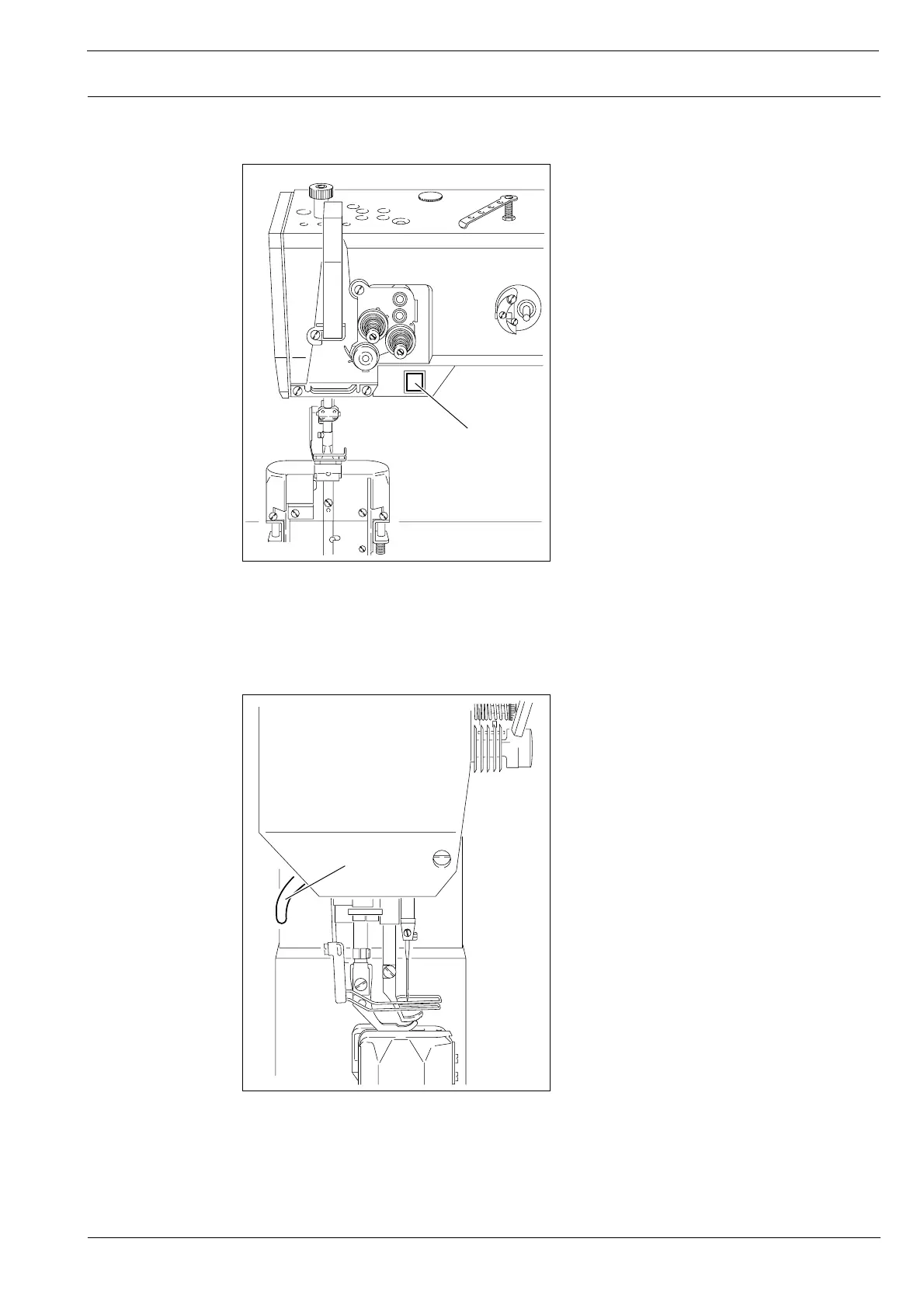

Fig. 7 - 06
Fig. 7 - 05
1
1
7.
06
Presser bar lifter
●
The presser foot is lifted by raising pres-
ser bar lifter
1
.
7.
05
Key on machine head
(on machines with subclass -911/97)
●
If key
1
is pressed during sewing, the
machine will switch to reverse sewing.
16
18
Table of Contents
Table of Contents
3
Contents
4
Safety
5
Regulations
5
General Notes on Safety
5
Safety Symbols
6
Important Notes for the User
6
Notes for Operating and Technical Staff
7
Operating Staff
7
Technical Staff
7
Danger Warnings
8
Proper Use
9
Specifications
10
Pfaff 1295, Pfaff 1296
10
Possible Versions and Subclasses
11
Maximum Speeds of the PFAFF 1295
11
Maximum Speeds of the PFAFF 1296
11
Disposal of the Machine
12
Transportation, Packing and Storage
13
Transportation to the Customer's Premises
13
Tansportation Inside the Customer's Premises
13
Disposal of Packing Materials
13
Storage
13
Explanation of Symbols
14
Controls
15
On/Off Switch
15
Pedal (on Machines Without Subclass -917/97)
15
Pedal (on Machines with Subclass -917/97)
16
Knee Lever 1
16
Key on Machine Head (on Machines with Subclass -911/97)
17
Presser Bar Lifter
17
Feed Regulator/Reverse Sewing
18
Feed Regulator (on Machines with Subclass -911/97)
18
Adjusting Nut for the Top Feed Stroke
19
Control Panel
19
Installation and Commissioning
20
Installation
20
Adjusting the Table-Top Height
20
Assembling the Motor (Only on Machines with Quick-Motor)
21
Tightening the V-Belt
21
Mounting the Bottom V-Belt Guard
22
Fitting the Upper Belt Guard
23
Fitting the Synchronizer
23
Fitting the Reel Stand
24
Fitting the Tilt Lock
24
Connecting the Plug-In Connections and Earth Cables
25
Commissioning
26
Switching the Machine On/Off
26
Basic Position of the Machine Drive Unit
27
Setting up
28
Inserting the Needle on the PFAFF 1295
29
Winding the Bobbin Thread, Regulating the Winder Tension
30
Changing the Bobbin
31
Threading the Bobbin Thread and Regulating the Bobbin Thread Tension
31
Threading Needle Thread/Adjusting Needle Thread Tension on the PFAFF 1295
32
Threading Needle Thread/Adjusting Needle Thread Tension on the PFAFF 1296
33
Adjusting the Stitch Counter for the Bobbin Thread Control
34
Care and Maintenance
35
Cleaning
35
General Oiling
35
Oiling the Sewing Hook
37
Oiling the Needle-Head Parts
38
Lubricating the Top-Feed Drive Eccentric
38
Checking/Regulating the Air Pressure
39
Emptying/Cleaning the Water Bowl of the Air Filter/Regulator
39
Parameter Settings
40
Parameter List
40
Mounting the Table Top
42
Circuit Diagrams
44
Wearing Parts
48
