Pfaff 1295 User Manual

Installation and commissioning
8 - 4

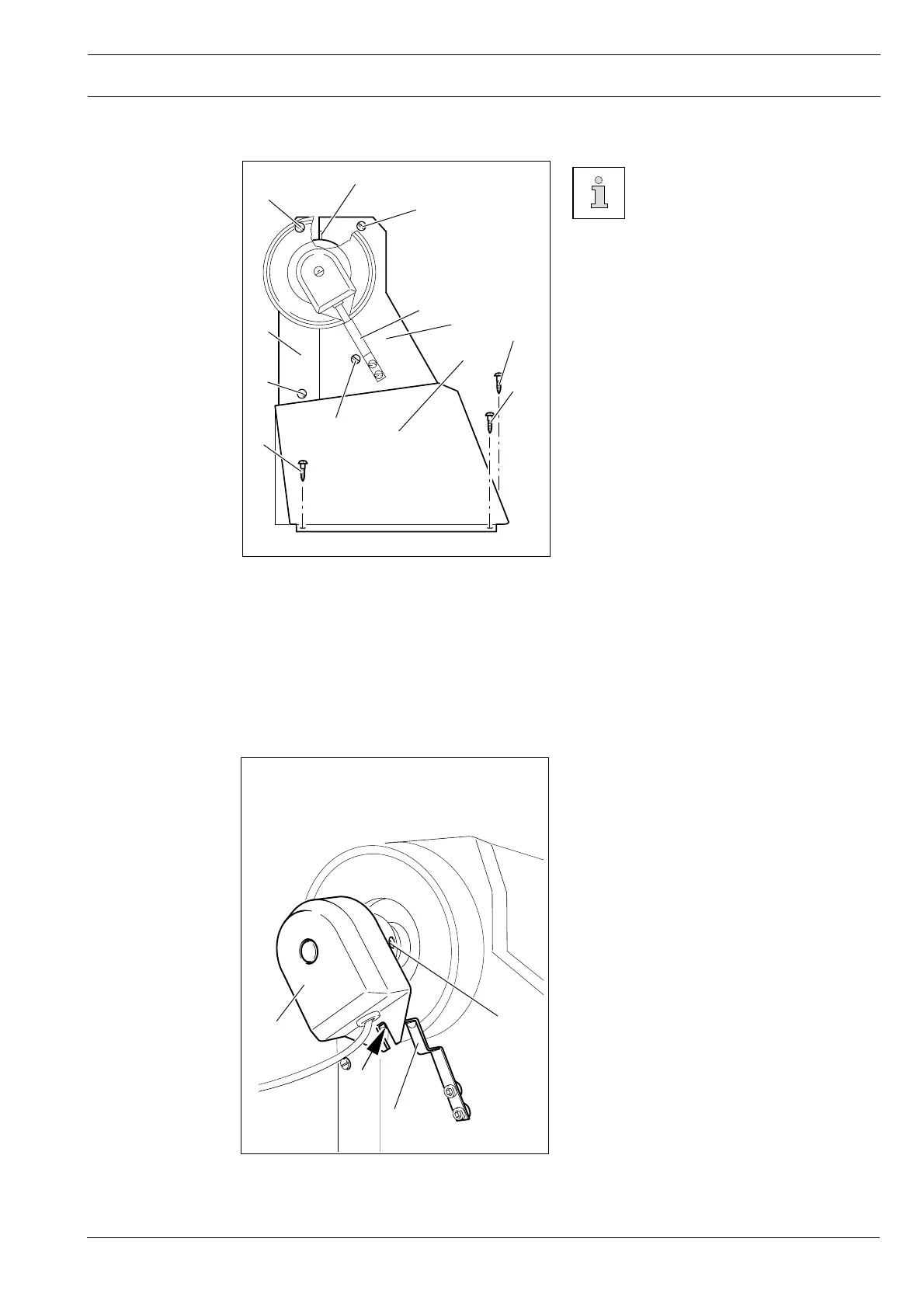

8.01.05 Fitting the upper belt guard
If a large balance wheel is in
use, break off corner 1 of belt
guard part 3.
● Screw stop piece 2 onto belt guard part 3.
● Screw on belt guard part 3 with screws 4.
● Screw on belt guard part 5 with screws 6.
● Secure belt guard part 7 to the table top
using woodscrews 8.
8.01.06 Fitting the synchronizer
● Push synchronizer 1 onto the shaft so
that stop 2 is standing in the slot on the
synchronizer (see arrow)
● Tighten screws 3.
● Connect the synchronizer plug to the
control box.
● Connect the synchronizer plug to the
adapter (see Chapter 8.02 Connecting
the plug connections and earth
cables).
● Adjust the synchronizer 1, see Chapter
8.05 Basic position of the machine.
Fig. 8 - 05
1
5
3
2
6
6
4
4
8
8
8
7
Fig. 8 - 06
3
1
2
