10. The gap between the needle and the hook
Check
1. Choose the pattern #1, straight stitch
2. Insert a new needle size 90 universal in the machine.
3. Remove the bobbin case.

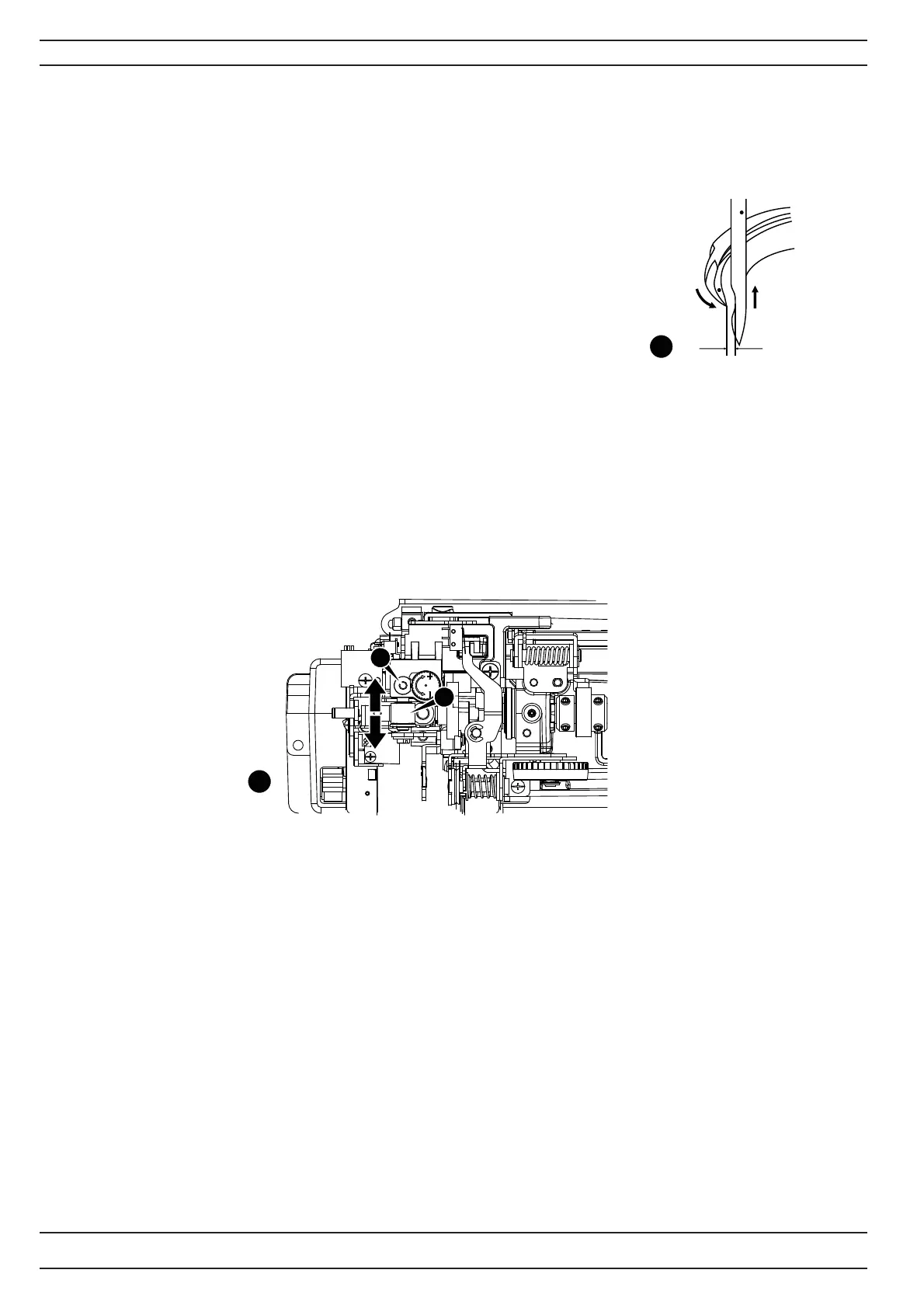

4. Rotate hand wheel until the tip of the hook arrives behind the needle, see Ill
1
5. Check the gap by pressing a small screw driver against the needle.
The gap should be as small as possible, but max 0.1 mm.
Adjustment
If the gap is incorrect:
1. Loosen the screw (a). Use an Allen key 1.5mm.
2. Push the needle bar supporter (b).
- Backward, the space will become larger.
- Frontward, the space will become smaller.
3. Tighten the screw (a).
NOTE! This adjustment affects : Setting the needle plate in relation to the needle in the feeding direction.
Settings
2
b
a
1
0.05~0.1 mm
To Next Page
