Service tools
A reasonable requirement in a domestic sewing machine is that it should able to sew all types of fabrics
used in the home. The settings made when assembling and sewing-in the machines are those most
suited to give the best results in the majority of fabrics and fabric combinations. In doing so, consideration
has been given to the requirements of different markets. This does, however, mean that when sewing
extreme fabrics, better results may be obtained in certain cases by altering the settings. It must be
pointed out that these altered settings can cause poorer results on more normal fabrics. How the different
standard ratings are set can be seen from the description under each setting instruction. The following list
of setting gauges and service tools is intended as an instruction about the special service tools needed to
servicing this machine.

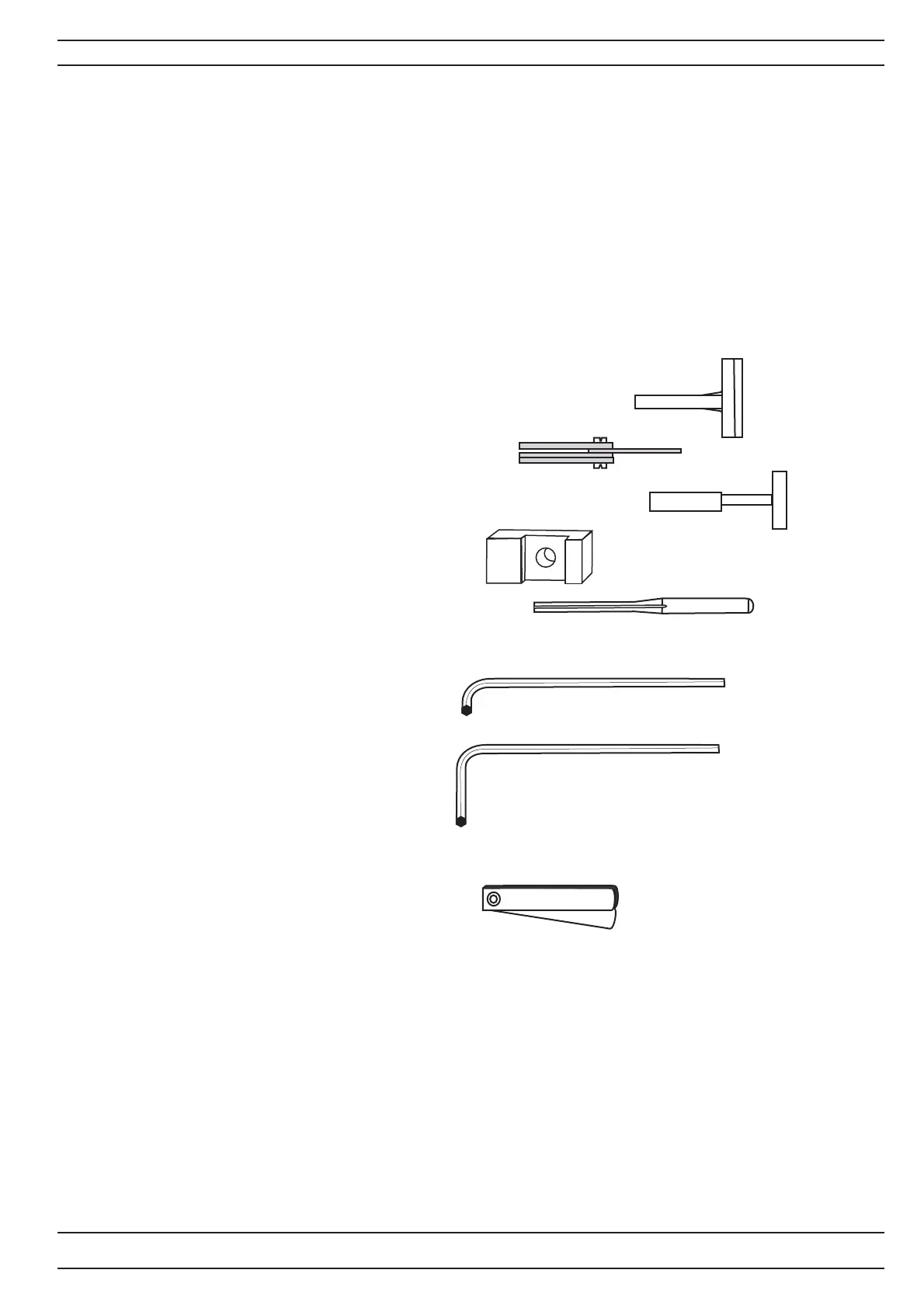

1. On several different occasions the needle is used as a setting gauge.The setting ratings are adapted
to needle 90.Make sure to use an undamaged needle.
2. Gauge for setting the timing of the hook in relation to the needle.
Ref. No 63-102600-18/000 Spacer
Ref. No 61-111600-02/000 Feeler gauge 2.3
Ref. No 413 10 22 - 01 Needle clamp
3. Gauge for the feed dog lift.
Ref. No
63-112 120 08/000
4. Gauge for the needle height.
Ref. No 412 35 29-03
5. Allen key 2.5 mm
Ref. No 411 86 01-01
6. Allen key 2 mm
Ref. No 411 86 00-01
7. Allen key 1.5 mm
Ref. No 411 66 89-01
8. Allen key 4 mm
Ref. No 74-33006-27/000
8. Distance gauge 0.05-1.00 mm
Ref: No. 412 38 85-01
