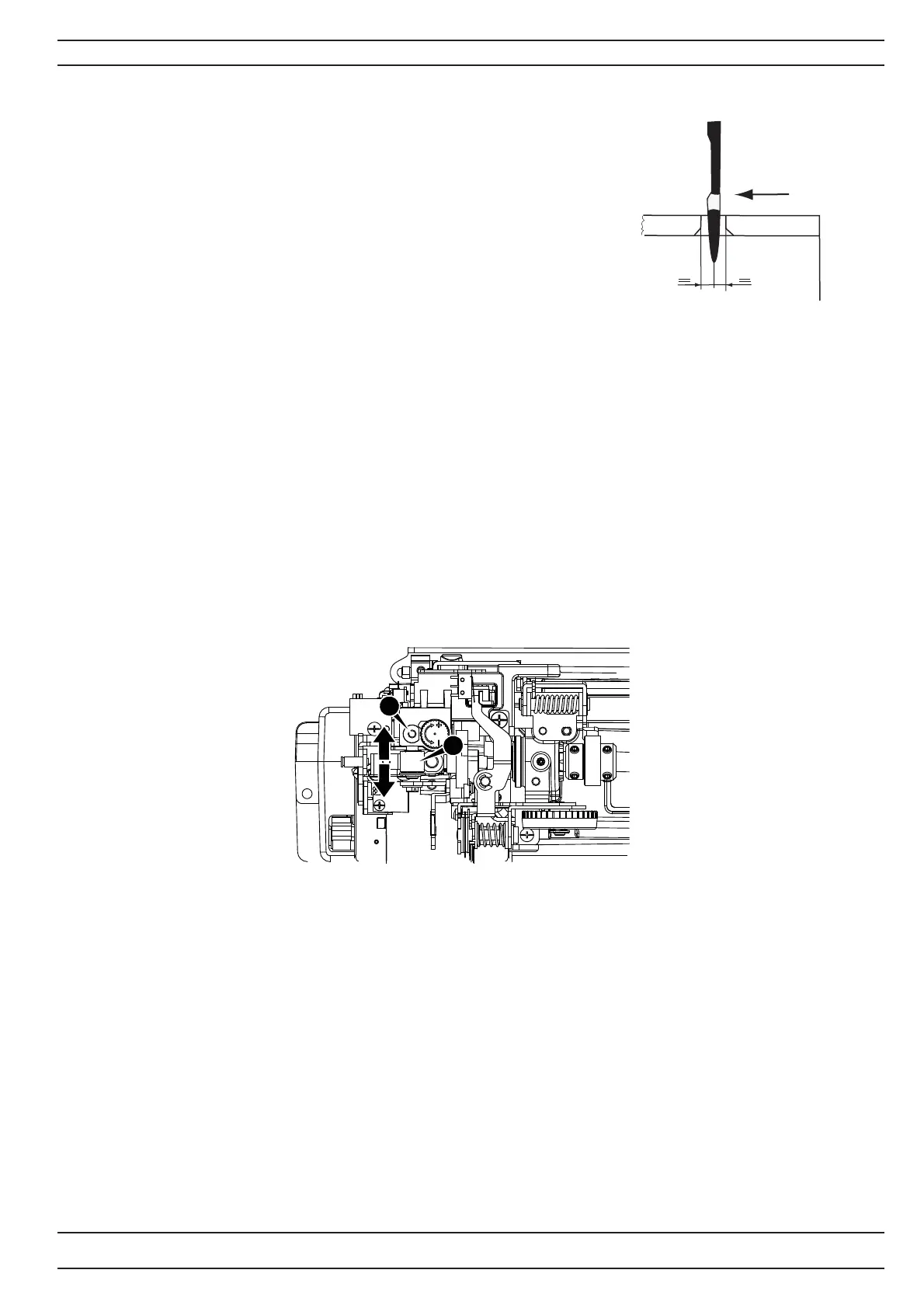

11. Setting the needle plate in relation to the needle in the feeding
direction.
Check
1. Insert a new needle size 90 universal in the machine.
2. Set the needle so the needle eye is just above the needle plate.
3. In the feeding direction the needle should descend right into the middle
of the needle hole of the needle plate.
Adjustment
1. Remove the face plate and top cover.
2. Go to the service program of the machine.
3. In Menu 1 choose the No 2 Center pos needle.
4. Set the needle so the eye of the needle is just above the needle plate.
5. Loosen the 2 mm allen screw (a) of needle bar supporter (b).
6. Turn needle bar supporter (b) forward / backward to adjust needle.
Backward - to move needle forward.
Forward - to move needle backward.
7. Set the point of needle so it passes through the centre of the needle hole in the needle´plate.
8. Tighten the 2 mm allen screw (a) of needle bar supporter (b).
NOTE! This Adjustment affects the ”The gap between the needle and the hook”.
