23
104 73 15-26
Settings

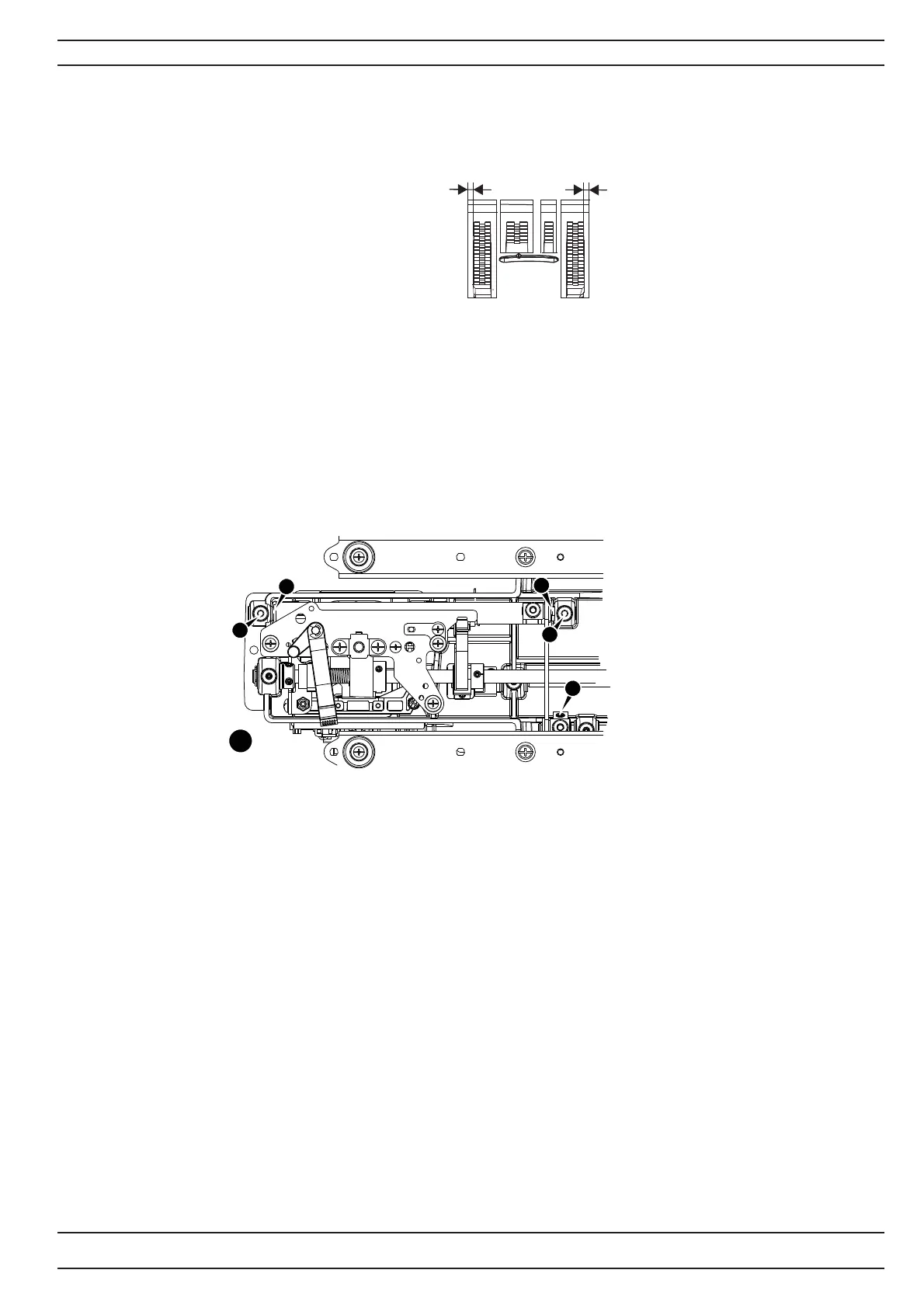

13. Setting the feed dog in relation to the needle plate
Check
1. Sideways the feed dog should be symmetrically set in relation to the needle plate slot.
Adjustment
1. Remove the free arm cover, base plate and extension cover.
2. Loosen the screw (a) of the feed crank shaft (b).
3. Loosen the screw (c) of the feed crank shaft (d).
4. Loosen up the screw (e) of the IDT link.
5. Move the feeding unit sideways until the feed dog teeth is centered in the needle plate slot.
6. Tighten screw (a) to fi x the left side of feed crank shaft (b).
7. Push right side feed crank shaft (d) to left and fasten the screw (c).
8. Re check the position of feed-dog in relation to the needle plate (left to right)
9. Tighten screw (e) of the IDT link.
1
b
a
c
d
e
