PIAGGIO beverly 500 User Manual

01_20
01_21

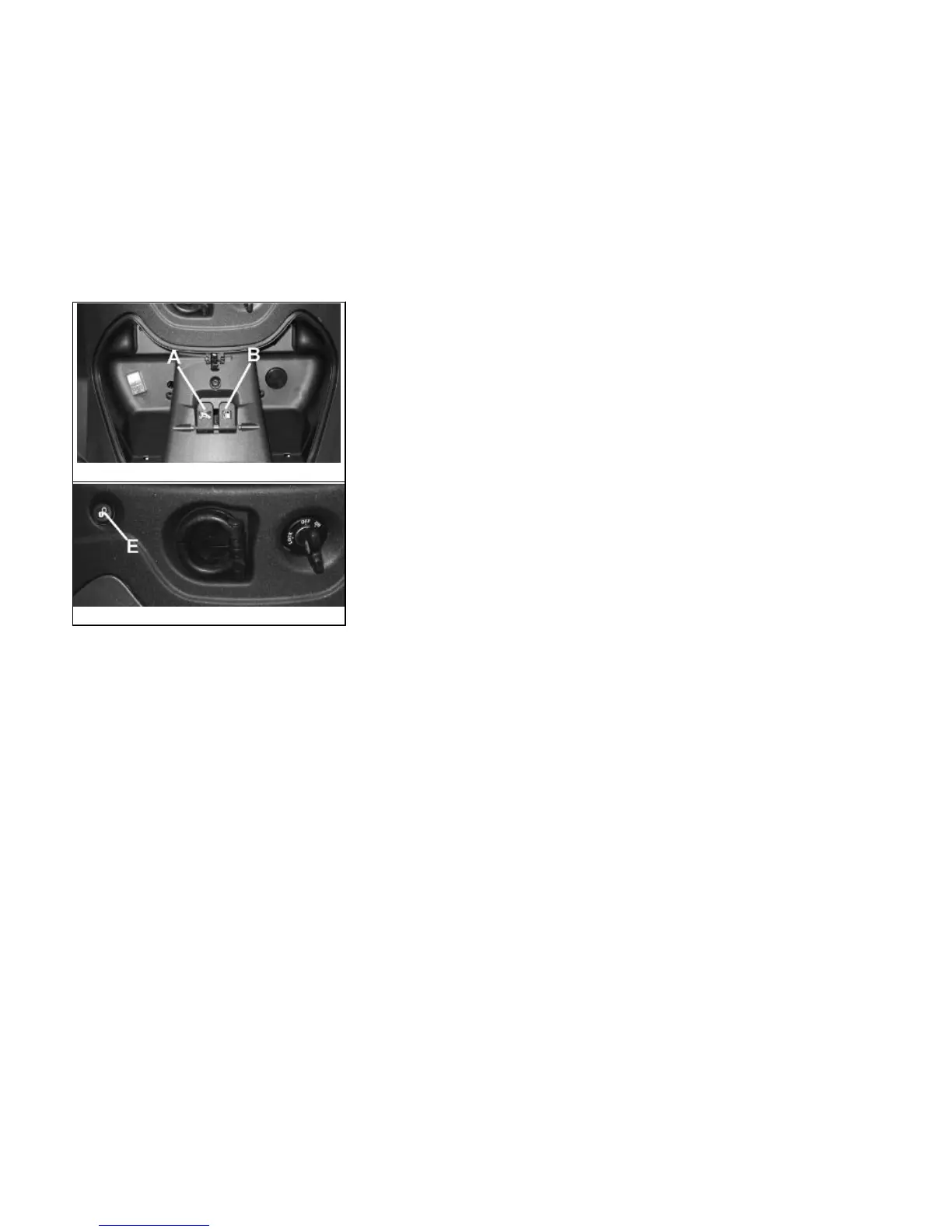

Saddle opening button (01_20, 01_21)
With the key in position «OFF» or «ON» or with the engine on, you can electrically
open the saddle by pressing button «E». If the electric opening does not work, use the
emergency lever «A».
Rear top box opening
Insert the key into the switch and press down until the glove compartment opens. In
the event that the switch is in «LOCK», turn the key to «OFF» or «ON» before pressing
it.
18
1 Vehicle

PIAGGIO beverly 500 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	493 cc
Fuel System	Electronic fuel injection
Front Tire	110/70 - 16
Length	2, 150 mm
Width	780 mm
Seat Height	790 mm
Maximum Torque	43 Nm @ 5, 500 rpm
Cooling System	Liquid cooled
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	240 mm disc
ABS	No
Rear Suspension	Dual hydraulic shock absorbers
