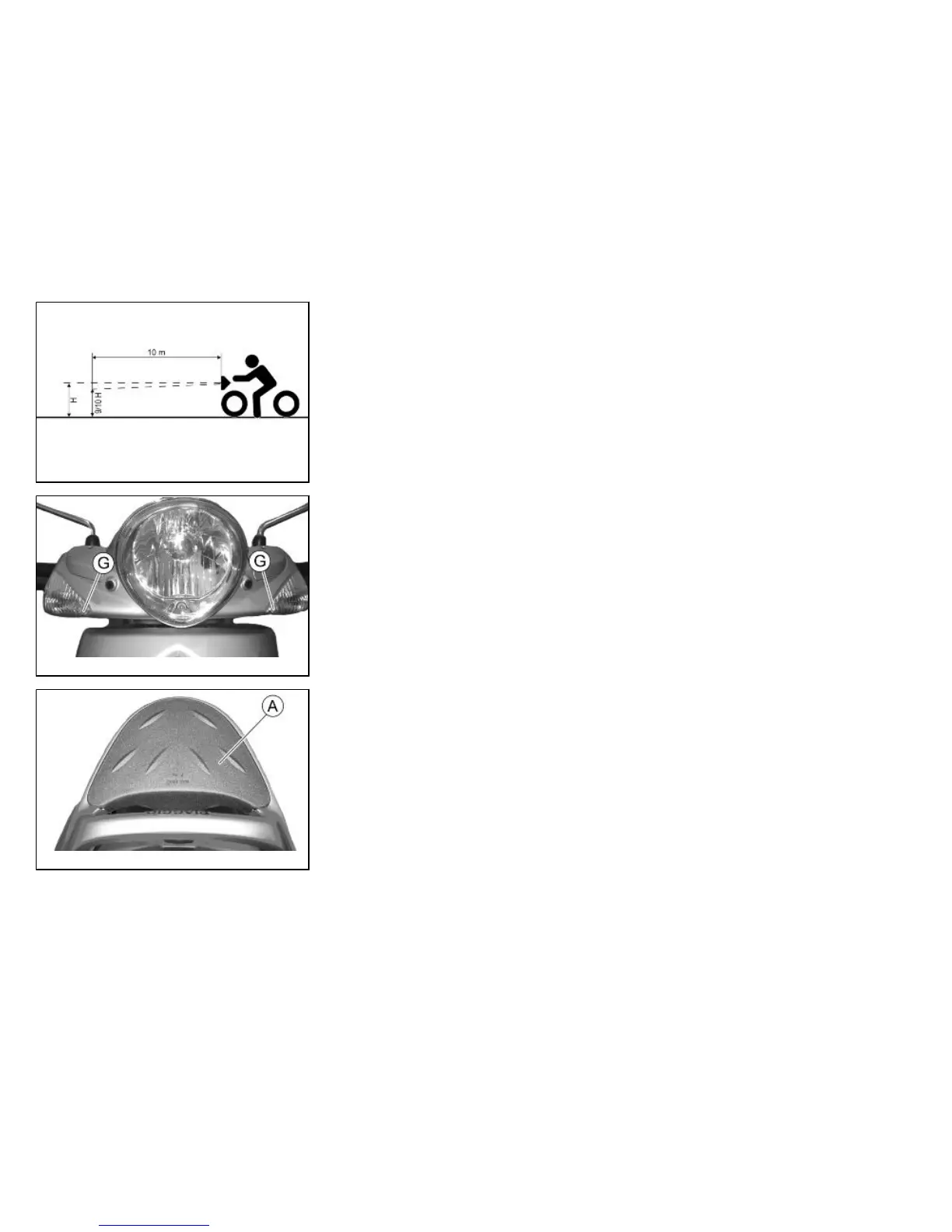

Front direction indicators (03_29)
To replace the burnt bulb, remove the screws «G»
03_30
Rear optical unit (03_30, 03_31, 03_32, 03_33, 03_34)
To remove the rear light assembly, proceed as follows:
1. Remove the plastic cover "A" from the rear luggage rack, then remove the two lateral
screws of the lower part of the luggage rack proper.
2. Remove screw "B"
3. Remove screws "C" and the lateral panels of the side, paying attention not to dam-
age the retaining straps.
4. Remove the two screws "D" of the light assembly being tested and remove it.
55
