PIAGGIO beverly 500 User Manual

REAR TYRE
Rear tyre Pirelli 150/70 14" GTS 24 M/C -
66S TUBELESS
03_07
Spark plug dismantlement (03_07)
Proceed as follows:
1. Remove the access cover over the spark plug on the left-hand side of the scooter
and reach into the spark plug with your hand.

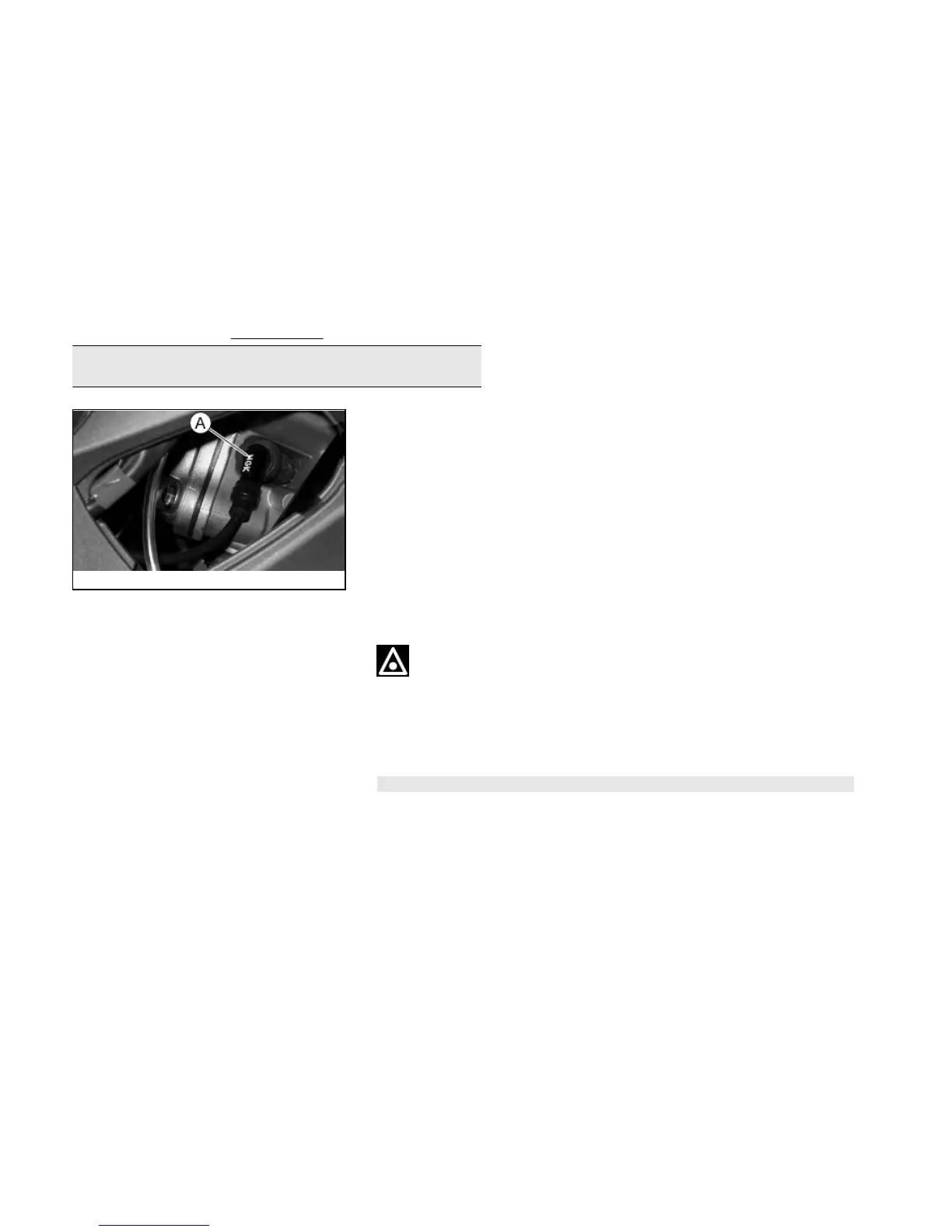

2. Disconnect spark plug HV wire cap «A» ;
3. Unscrew the spark plug using the spark plug wrench supplied;
4. When refitting, place the spark plug into the hole at the required angle and tighten
by hand until it is finger tight;
5. Use the wrench only for final tightening of the spark plug;
6. Place hood "A" fully over the spark plug.
THE SPARK PLUG MUST BE REMOVED WHEN THE ENGINE IS COLD. THE
MEASURES ON THE SPARK PLUG ARE DESCRIBED IN THE TABLE OF SCHED-
ULED MAINTENANCE. THE USE OF ELECTRONIC CENTRAL UNITS AND OF
NON-COMPLIANT ELECTRONIC IGNITIONS OR SPARK PLUGS OTHER THAN
THOSE PRESCRIBED MAY SERIOUSLY DAMAGE THE ENGINE.
N.B.
THE USE OF SPARK PLUGS OTHER THAN THE INDICATED TYPE OR OF
SHIELDLESS SPARK PLUG CAPS CAN CAUSE ELECTRICAL SYSTEM FAIL-
URES.
40
3 Maintenance

PIAGGIO beverly 500 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	493 cc
Fuel System	Electronic fuel injection
Front Tire	110/70 - 16
Length	2, 150 mm
Width	780 mm
Seat Height	790 mm
Maximum Torque	43 Nm @ 5, 500 rpm
Cooling System	Liquid cooled
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	240 mm disc
ABS	No
Rear Suspension	Dual hydraulic shock absorbers
