03_22
03_23
03_24

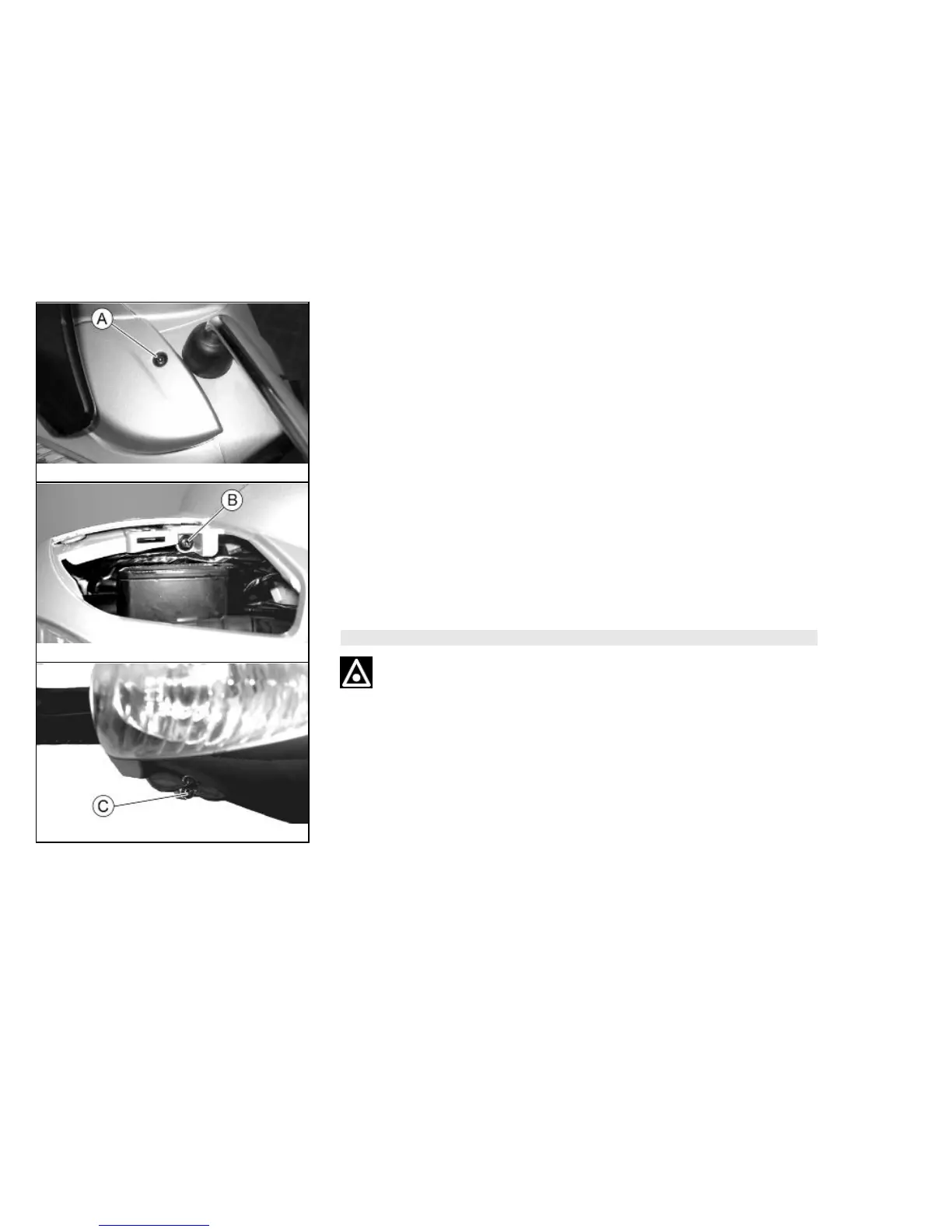

Front light group (03_22, 03_23, 03_24, 03_25, 03_26)
To remove the front headlight assembly, proceed as follows:
1. Remove screws «A» of the brake fluid tank cover.
2. Remove the 3 windshield screws and the windshield proper.
3. Remove the rear-view mirrors.
4. Remove the screws "C" of the upper coupling.
5. Remove the screws "C" of the lower coupling.
6. Remove the two screws "D" of the front handlebar cover.
7. Remove the front handlebar cover.
This gives access to the bulbs.
Release the spring and take out the bulb of the high-beam/low-beam headlamp «E».
To replace the tail light «F», pull out the rubber bulb holder from its seat.
To reassemble, repeat the operation in the reverse order.
WARNING
THE TWIN-FILAMENT (HIGH-BEAM AND LOW-BEAM) BULB IS HALOGEN: DO
NOT TOUCH THE BULB WITH YOUR FINGERS TO AVOID COMPROMISING ITS
FUNCTIONING
Headlight adjustment (03_27, 03_28)
Proceed as follows:
1. Place the vehicle in running order and with the tyres inflated to the prescribed pres-
sure, on a flat surface 10 m away from a white screen situated in a shaded area,
making sure that the longitudinal axis of the vehicle is perpendicular to the screen;
53
