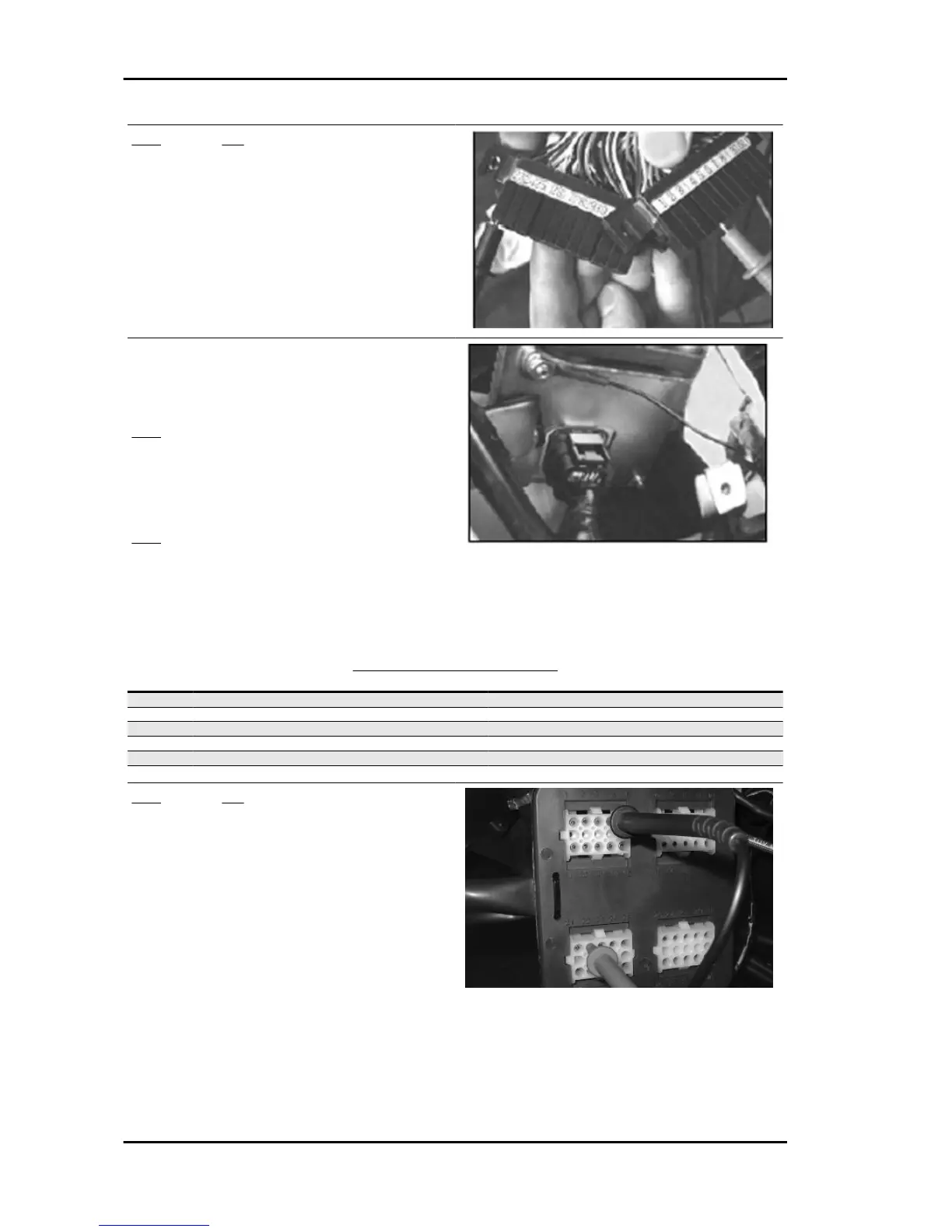

YES go to 15 NO go to 14
14 - Repair or replace the wiring.
Check the air temperature lines and the throttle
valve position.
YES go to 13
15 - Connect the special tool to the control unit.
Set the switch to "ON" with switch to "RUN" and
side stand raised.
YES go to 16
Specific tooling
020481Y Control unit interface wiring
16 - Measure voltage at terminals 4 and 22;
TEMPERATURE VOLTAGE
Specification
Desc./Quantity
1 X V -10° C
2 X V 0
3 X V +10° C
4 X V +20° C
5 X V +30° C
6 X V +80° C
YES go to 21 NO go to 17
17
Electric characteristic
Measured value =
5±0.2 V
Repeat the wiring and sensor continuity checks.
Injection Beverly 500 i.e.
INJEC - 240
