CHARGE THE BATTERY BEFORE USE TO ENSURE OPTIMUM PERFORMANCE. FAILURE TO
CHARGE THE BATTERY ADEQUATELY BEFORE BEING PUT INTO OPERATION WILL LEAD TO
A PREMATURE FAILURE OF THE BATTERY.
Connectors
Dashboard
•

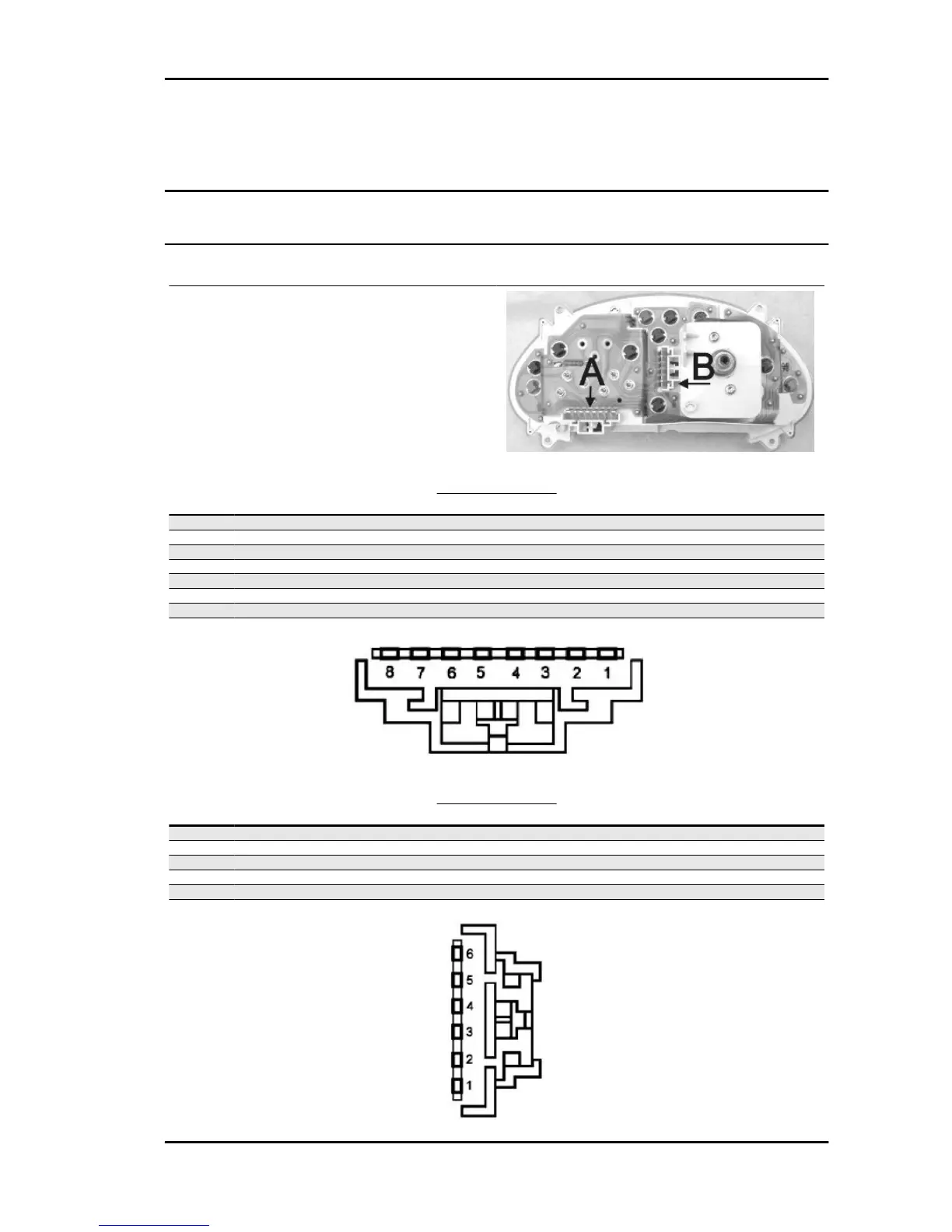

The instrument panel is provided with
two connectors (A with 8 pins and B
with 6 pins) shown in the figure.
CONNECTOR A
Specification Desc./Quantity
1 Left direction warning light
2 Battery negative
3 Battery positive
4 Water thermometer
5 Right direction warning light
6 Preset indicator
7 Fuel gauge
8 Low fuel warning light
CONNECTOR B
Specification
Desc./Quantity
1 High-beam lamp warning light
2 Ground lead
3 Engine control warning light
4 Engine oil pressure warning light
5 + battery under permanent power supply
6 Instrument panel lighting and headlamp warning light
Beverly 500 i.e. Electrical system
ELE SYS - 49
