Refitting

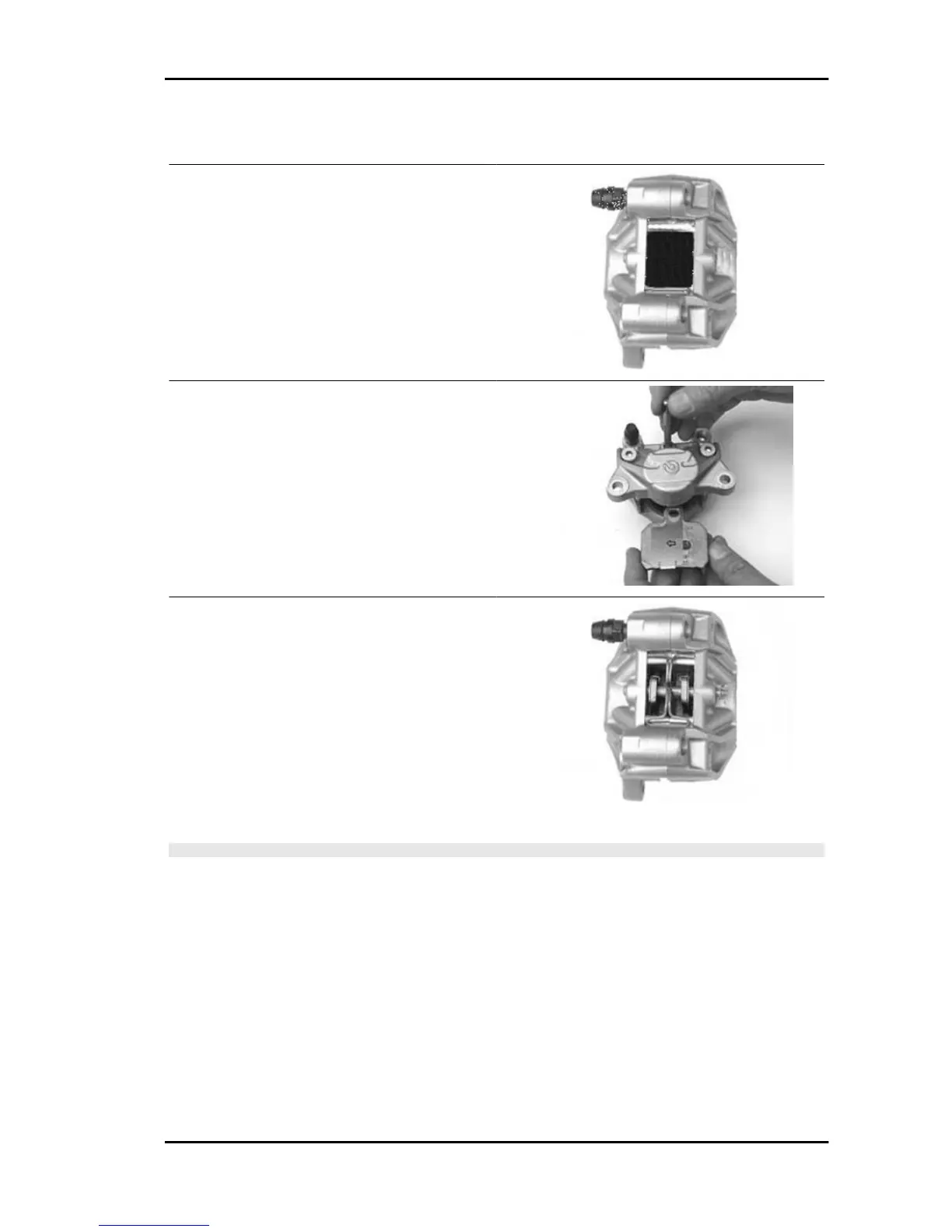

- The rear break calliper can be recognised by its
Ø 34 mm plungers and the bleed screw as shown
in the figure.
- Insert the break pads in the pliers according to
the arrow that indicates the break disc direction of
rotation as shown in the photograph.
- Insert the pad fixing pin and the retention spring
being careful to position its ends pointing towards
the bleed screw as shown in the photograph.
- Insert the circlips on the pad fixing pin.
N.B.
FAILURE TO RESPECT THE PAD POSITIONING REQUIREMENTS WITH RESPECT TO THE DI-
RECTION OF ROTATION COULD COMPROMISE PROPER BRAKE FUNCTIONING AND NOISE-
LESSNESS.
Beverly 500 i.e. Braking system
BRAK SYS - 287
