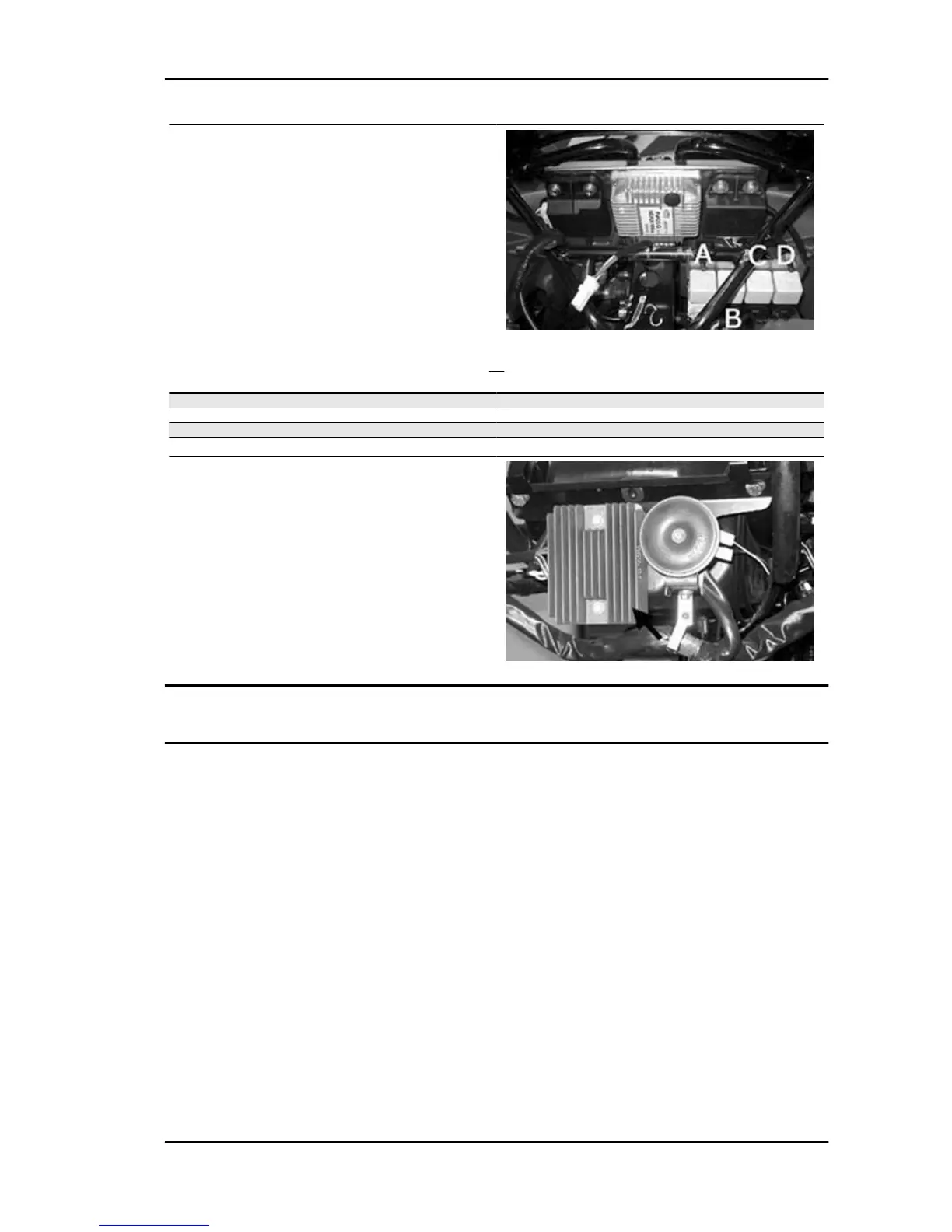

Relays and diode group
In order to access the relays and the diode group,
remove the upper shield back plate.
[/]
Specification Desc./Quantity
A = DIODE UNIT
B = ELECTRIC FAN REMOTE CONTROL SWITCH
C = ENGINE STOP REMOTE CONTROL SWITCH
D = CONTROL UNIT REMOTE CONTROL SWITCH
Voltage regulator
To access the voltage regulator.
Conceptual diagrams
Beverly 500 i.e. Electrical system
ELE SYS - 37
