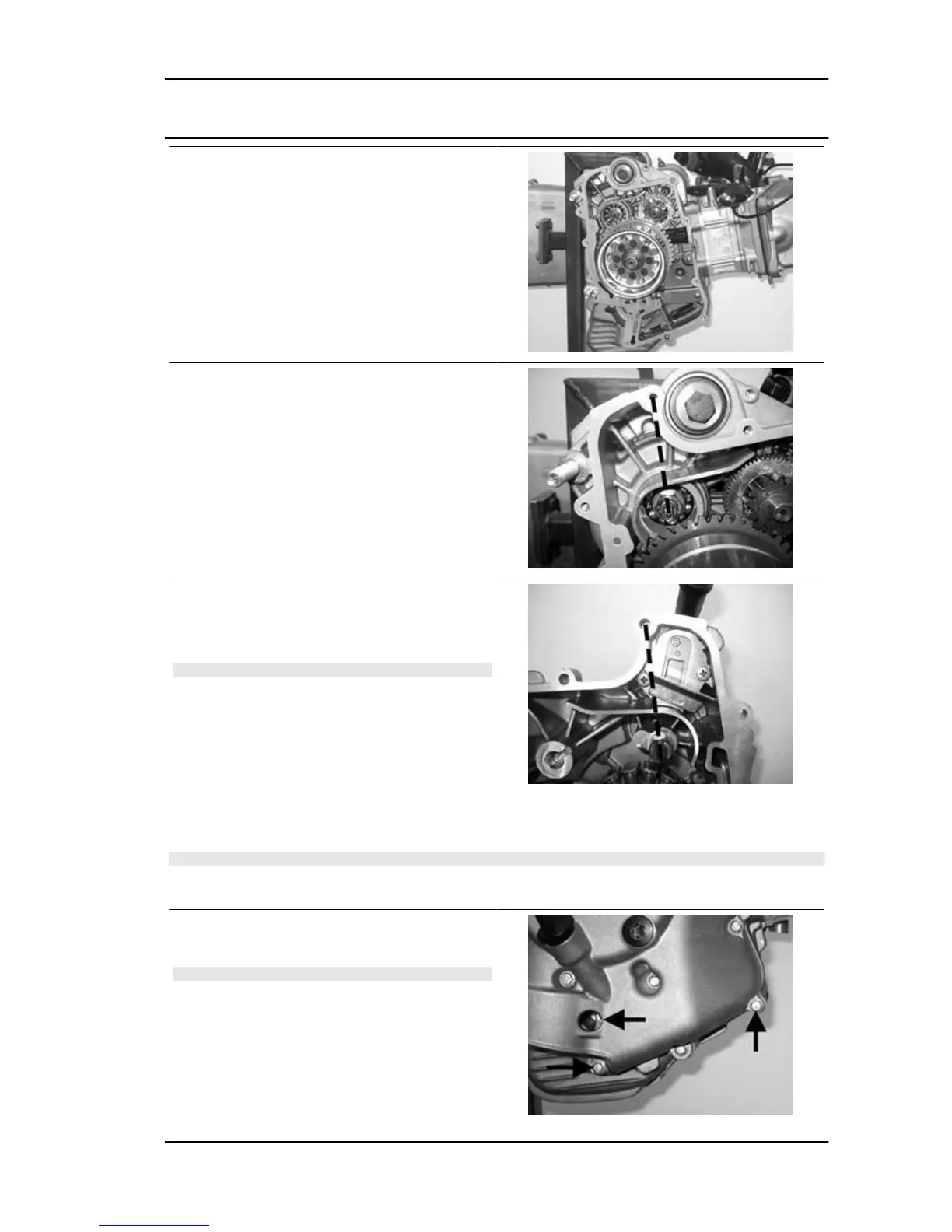

- Install a new gasket on the engine crankcase.
- Check the presence of the three centring dowels.
- Turn the crankshaft in order to align the counter-
shaft movement sensor with a reference point on
the crankcase (see figure).
- Repeat the alignment for the water pump crank-
shaft using the same reference point on the en-
gine.
N.B.
THIS PREPARATION IS USEFUL PARTICULARLY IN THE
EVENT OF REPAIRS WITH THE WATER PUMP COVER IN-
STALLED.
- Install the flywheel cover on the engine, paying attention to avoid interference between the stator and
rotor.
WARNING
FAILURE TO OBSERVE THIS PRECAUTION MAY RESULT IN DESTRUCTION OF THE CERAMIC
MAGNETS.
- Tighten the 14 retaining bolts of the cover to the
prescribed torque.
N.B.
THE BOLTS HAVE FOUR LENGTHS:
- THE 3 SHORTEST ARE INSERTED AS SHOWN IN THE
FIGURE.
- THE LONGEST IS INSERTED UNDER THE ENGINE OIL
FILLER PLUG.
Beverly 500 i.e. Engine
ENG - 91
