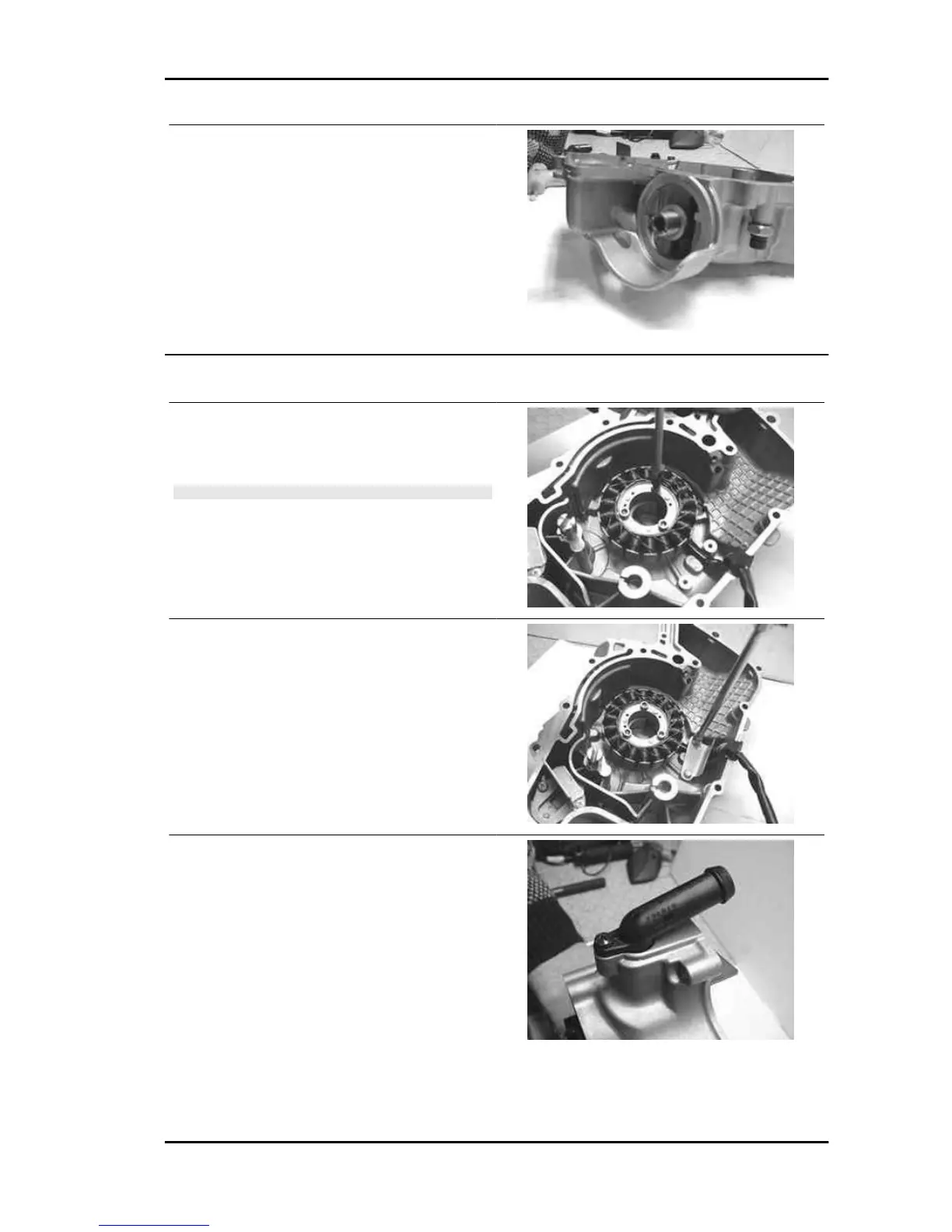

- Check that the oil filter union and matching sur-
face exhibit no deformations or wear.
Refitting the stator
- Install the stator assembly together with the wir-
ing harness, tightening the 3 screws to the pre-
scribed torque.
N.B.
INSERT THE RUBBER WIRING SEALING GASKET INTO
THE SPECIAL SEAT ON THE CRANKCASE.
Locking torques (N*m)
Stator retainers 8 - 10
- Install the wiring guide bracket tightening the 2
screws to the prescribed torque.
Locking torques (N*m)
Stator cable harness guide bracket screws 3 - 4
- Temporarily install the distribution timing check
hole cover and the engine oil filling cap/bar.
- Insert the blow-by recovery duct using a new O-
ring.
- Tighten the screws to the prescribed torque.
Locking torques (N*m)
Blow-by recovery duct fixing screws 3 - 4
X8 400 Euro 3 Engine
ENG - 113
