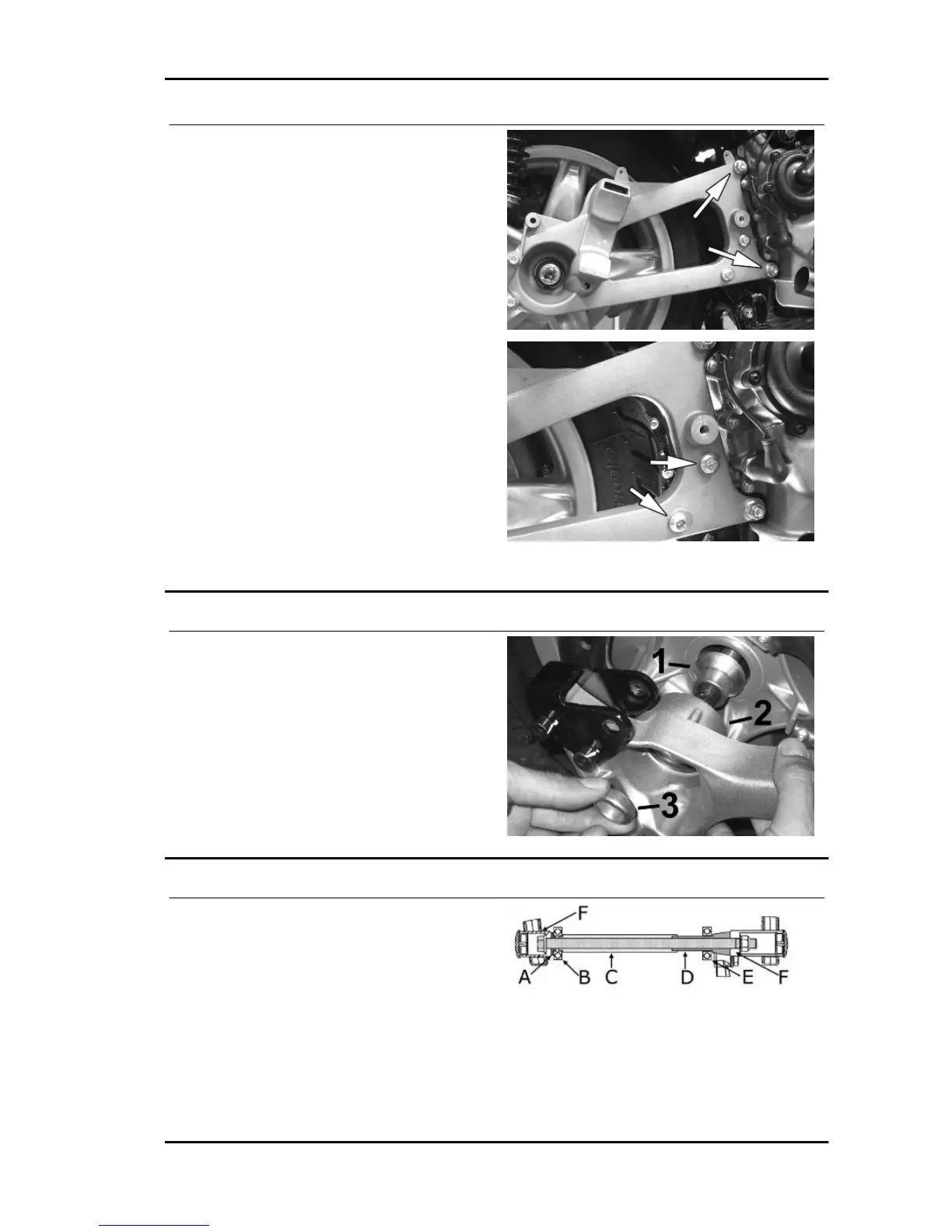

- Remove the two screws fixing the bracket to the
engine
- Remove the two screws fixing the stand to the
bracket
- Slide off the wheel axle bracket, using the heat gun if necessary.
Refitting the rear wheel
To fit, follow the removal steps but in the reverse
sequence, being careful to fit the spacers on the
wheel axle as shown in the photograph.
Locking torques (N*m)
Muffler arm clamping screws 27 ÷ 30 Rear wheel
axle nut 104 ÷ 126 Shock absorber-crankcase at-
tachment bracket 20 ÷ 25 Lower shock absorber
clamping screw 33 ÷ 41 Nm Rear brake calliper
fixing screws 25 ÷ 30 Nm
Swing-arm
The scooter features a rigid engine-chassis retain-
er called Direct-link.
The system comprises the following components:
A= Left spacer
B= RHS engine support bearing
C= Central spacer
D= Right spacer
E= LHS engine support bearing
X8 400 Euro 3 Suspensions
SUSP - 303
