Specification Desc./Quantity
2 Immobilizer LED control (negative)
3 Base power supply (positive)
4 Negative
5 -
6 Electronic control unit EMS (serial)
7 -
8 Continuous power supply (positive) Immobilizer aerial

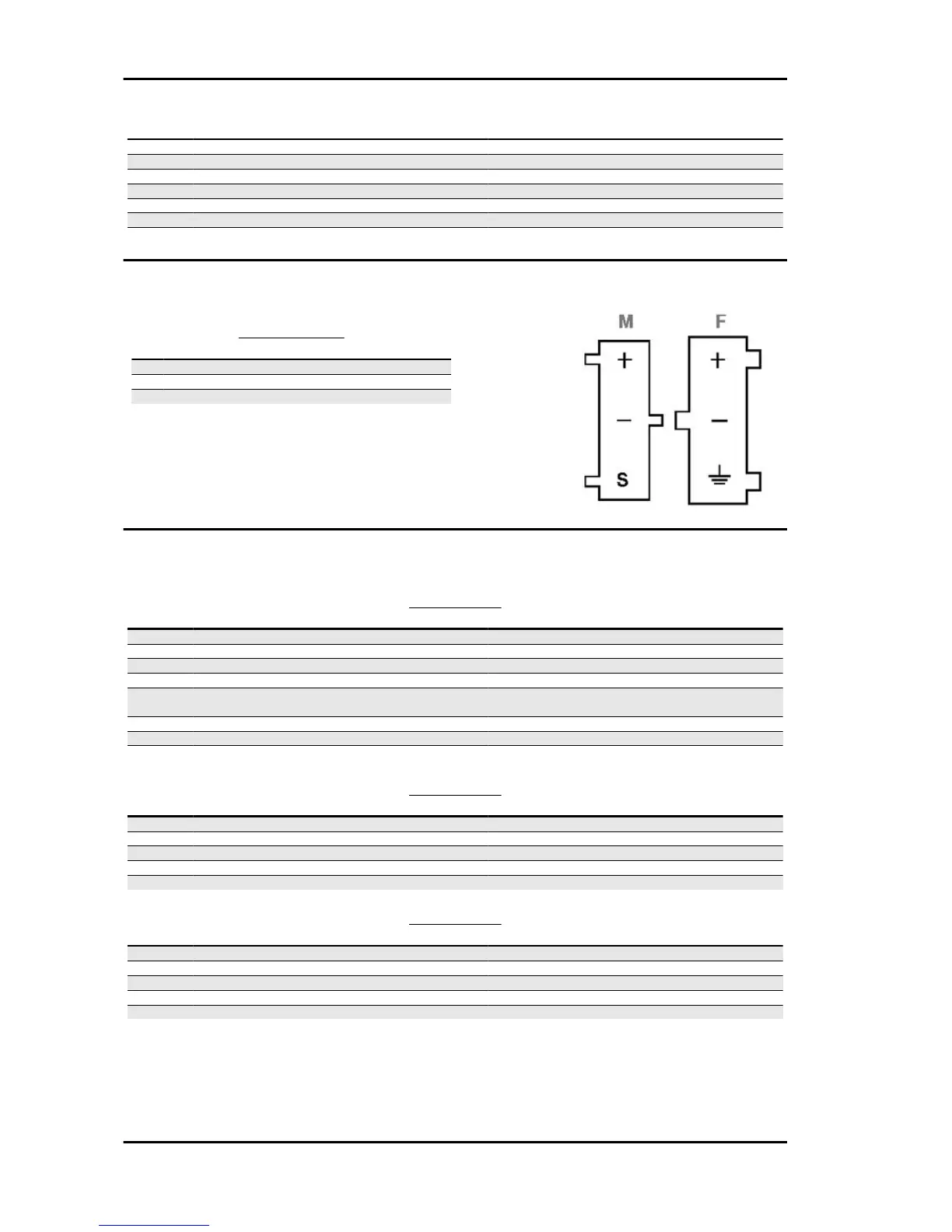

Engine rev. sensor
REV SENSOR
Specification Desc./Quantity
1 M: Male
2 F: Female
3 S: Shielding
Dashboard
CONNECTOR A
Specification
Desc./Quantity
1 1 Engine oil pressure warning light
2 2 electronic control unit
3 3 + Battery
4 4 To the clock reset button
5 5 Instrument panel lighting and headlight warning light
bulb
6 6 Earth
7 7 + Clock battery
8 8 Right direction warning light
CONNECTOR B
Specification
Desc./Quantity
1 1 Left turn indicator warning light
2 2 Water thermometer
3 3 Live battery
4 4 Engine control warning light
5 5 Low-fuel warning light
CONNECTOR C
Specification
Desc./Quantity
1 1 Fuel level gauge
2 2 Earth
3 3 ABS warning light preinstallation
4 4 High-beam lamp warning light
5 5 Open boot warning light
Electrical system X8 400 Euro 3
ELE SYS - 72
