3.16
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

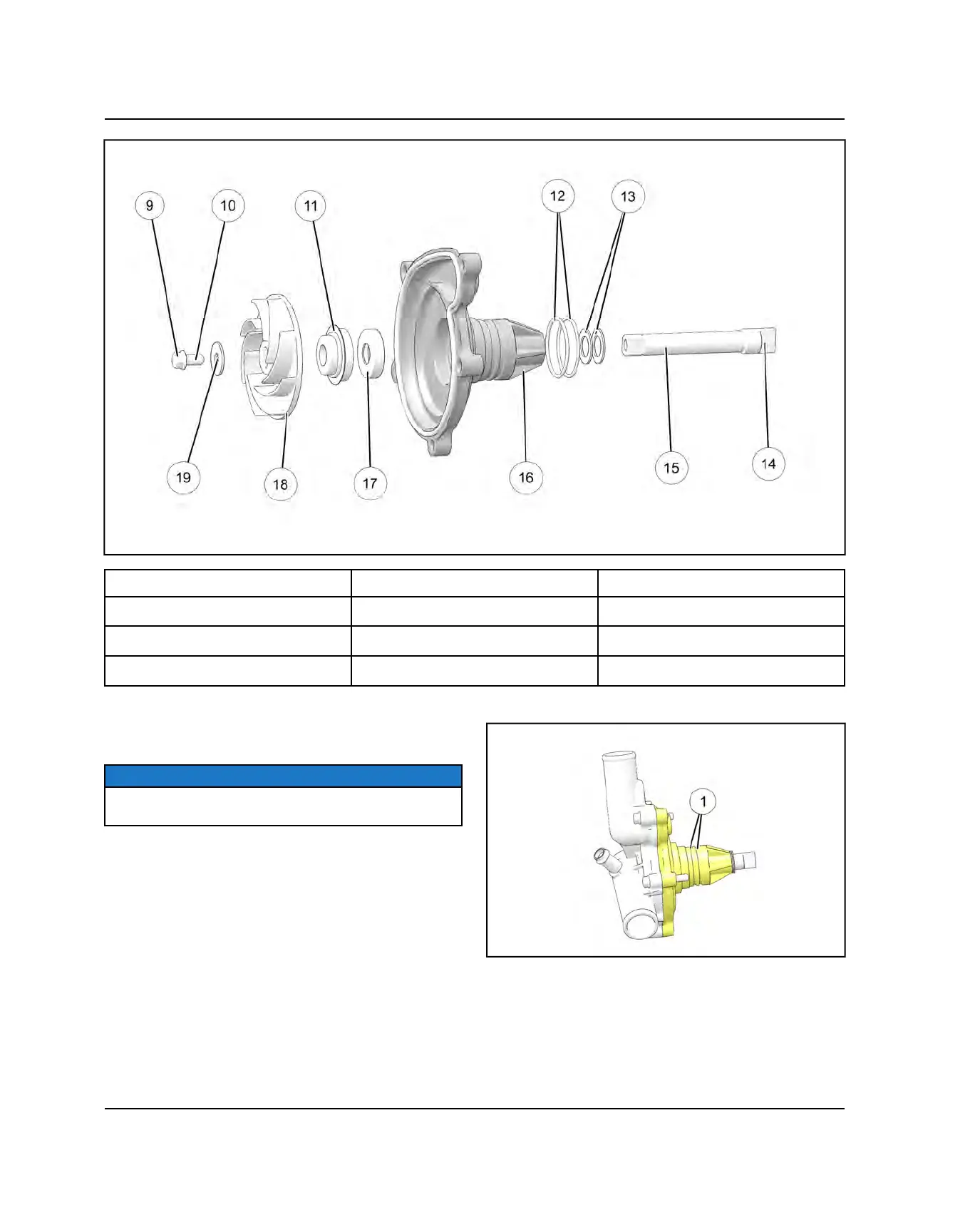

o
Bolt
f
Washers
k
Oil Seal
a
Loctite 204
g
Drive Tab
l
Impeller
s
Mechanical Seal
h
Water Pump Shaft
1(
Washer
d
O-Rings
j
Water Pump Housing
WATER PUMP INSTALLATION
1. Replace the two sealing o-rings
q
on the water pump
housing.
NOTICE
Always use NEW o-rings each time the water pump is
removed.
2. Lubricate new o-rings
q
with clean engine oil.
3. Remove the shop towel from the water pump drive
access hole in the engine block.
ENGINE / COOLING SYSTEM
