12.16
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

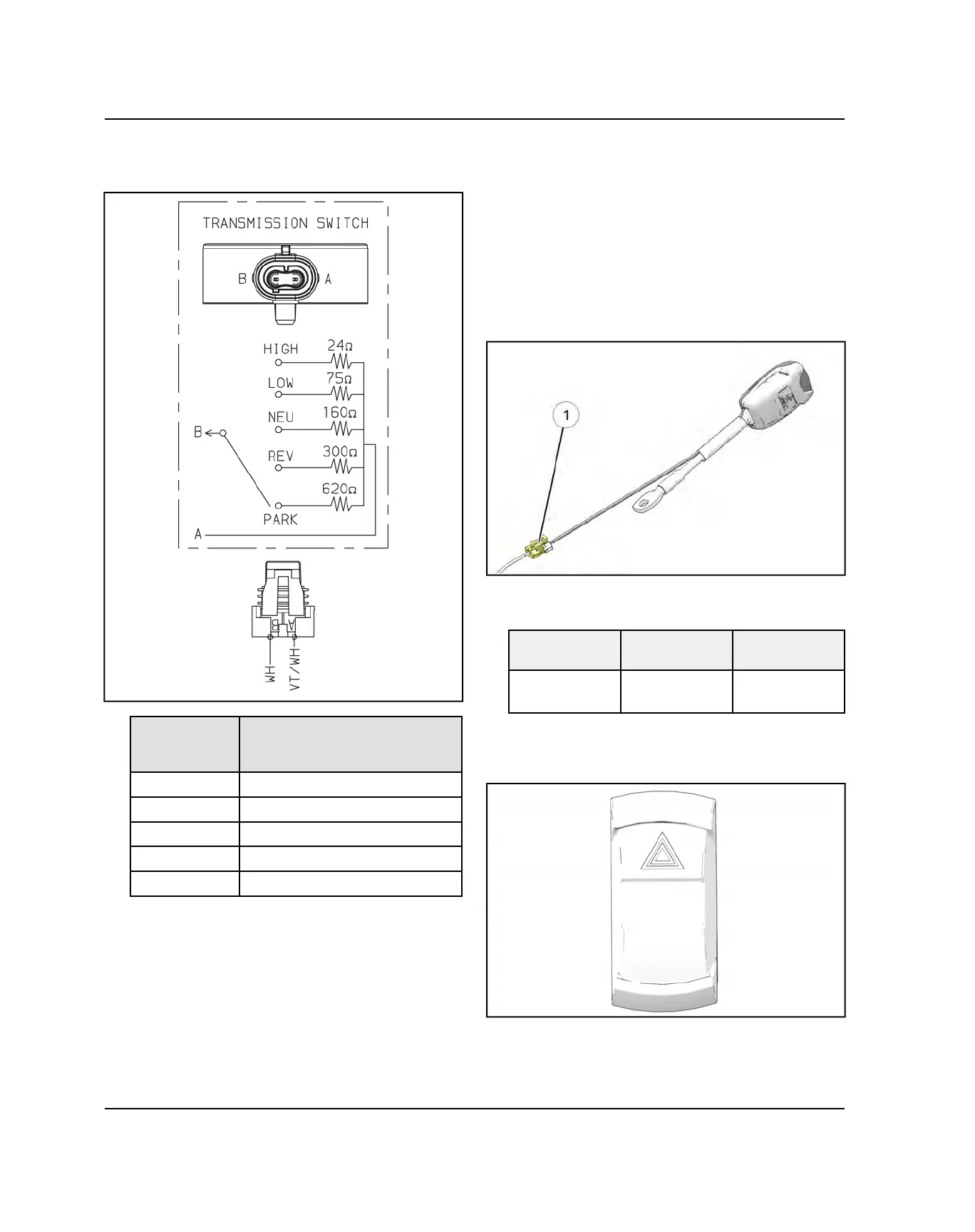

3. Test the transmission switch continuity readings for
each gear position and compare to the specification
table below.
GEAR
POSITION
RESISTANCE VALUE
WHEN MEASURED AT
SWITCH TERMINALS A AND B
HIGH 24 Ω
LOW 75 Ω
NEU
160 Ω
REV 300 Ω
PARK 620 Ω
SEAT BELT SWITCH
Location
Found on the driver’s seat belt latch
Functionality
If the circuit is open (buckle undone) vehicle speed will
be limited to 15mph. If the circuit is closed (buckle
inserted), the vehicle will function normally.
Testing:
1. Disconnect the harness
q
running to the seat belt.
2. Using a multi-meter, measure between both pins on
switch.
SEAT BELT
DISENGAGED
SEAT BELT
ENGAGED
Between both
pins on switch
∞ (OL)
< 1 Ω
HAZARD SWITCH (INT'L / TRACTOR)
ELECTRICAL
