6
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
6.31

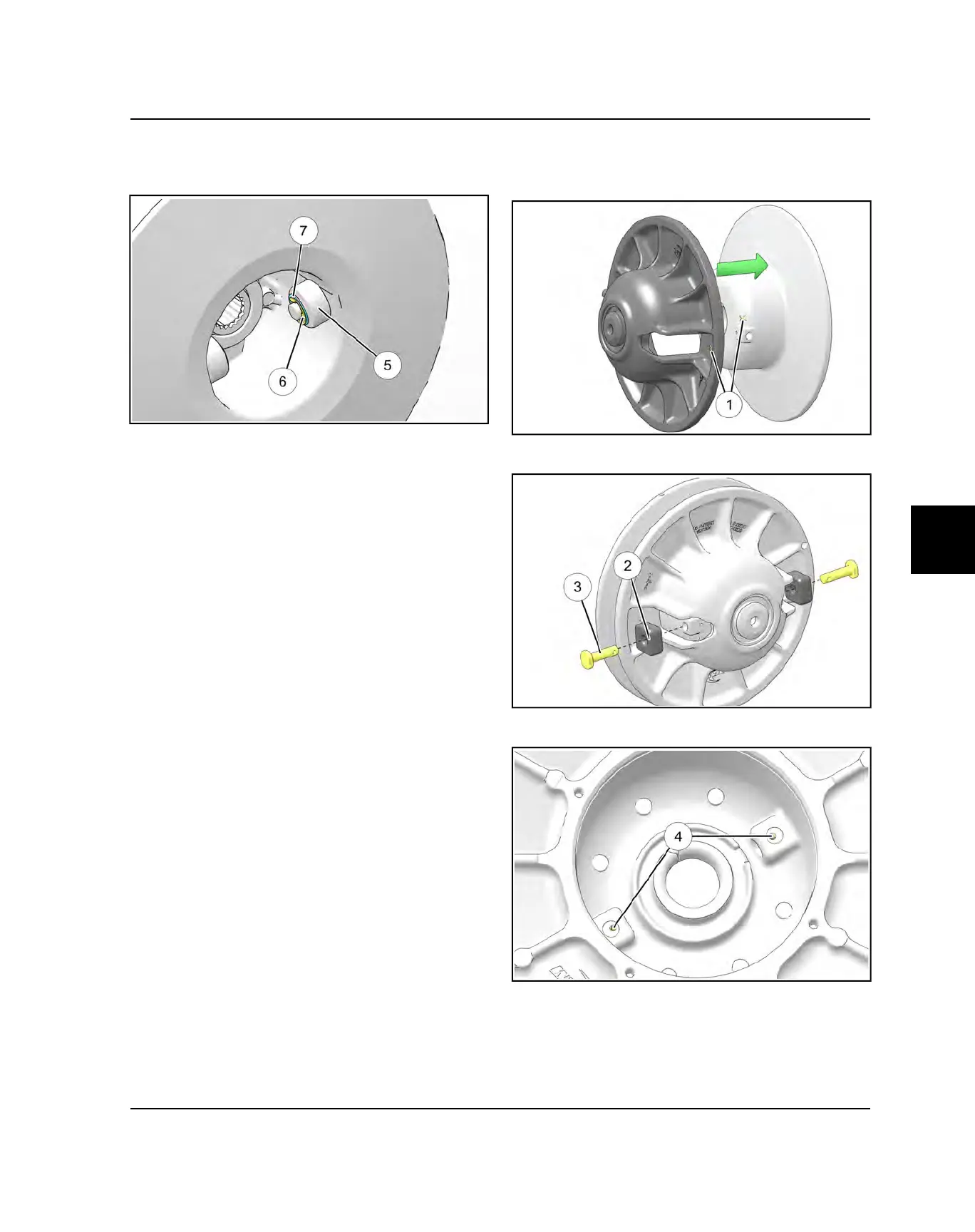

10.Check the rollers
t
for wear. If rollers are worn, a
new driven clutch assembly may be needed if there is
damage to the helix.
11. If roller need replacement, remove the E-clip
y
and
washer
u
retaining each roller.
12.Inspect driven clutch sheave faces for wear or
damage.
13.Clean and inspect the helix and transmission input
shaft splines.
14.Lube splines with a light film of grease. Do not
lubricate the bearings!
DRIVEN CLUTCH ASSEMBLY
1. Align the X’s
q
on the moveable and stationary
sheaves.
2. Install the square sliders
w
and slider pins
e
.
3. Install the spring pins
r
to retain the slider pins.
PVT SYSTEM
