3.108
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

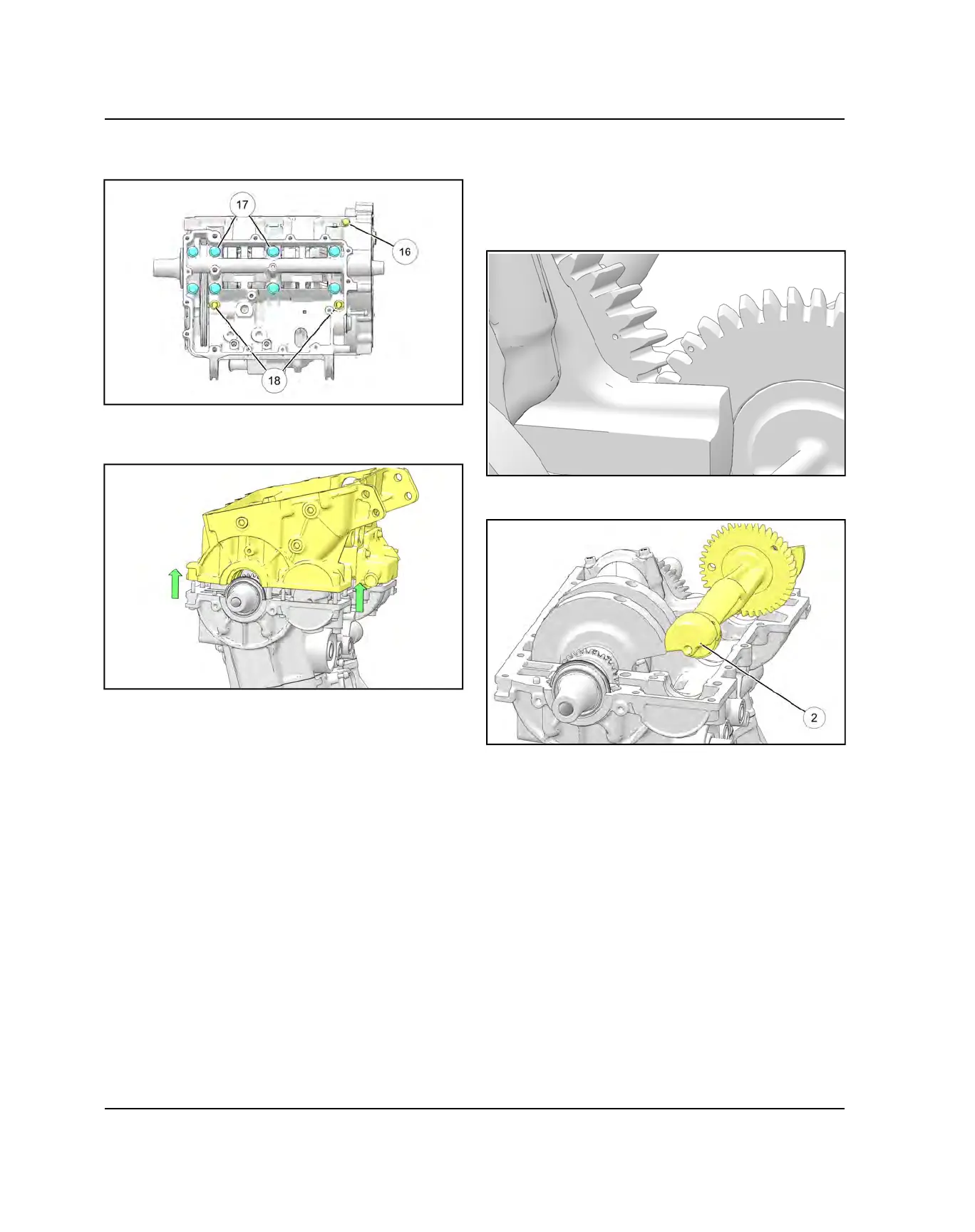

16. Remove the eight M10
k
, two M8
l
and one M6
j
lower crankcase bolts. Discard the eight M10 bolts.
17. Tap on the lower crankcase in reinforced areas with
a soft faced hammer to loosen. Carefully lift up and
remove the lower crankcase half.
BALANCE SHAFT REMOVAL / INSPECTION
1. Perform Crankcase Disassembly / Inspection page
3.106 procedure.
2. Note timing marks on balance shaft and crankshaft
drive gears. Shafts must be properly timed upon
assembly.
3. Carefully rotate the balance shaft
w
and remove it
from the crankcase.
4. Inspect the balance shaft gear teeth for damage.
ENGINE / COOLING SYSTEM
