9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
5.13

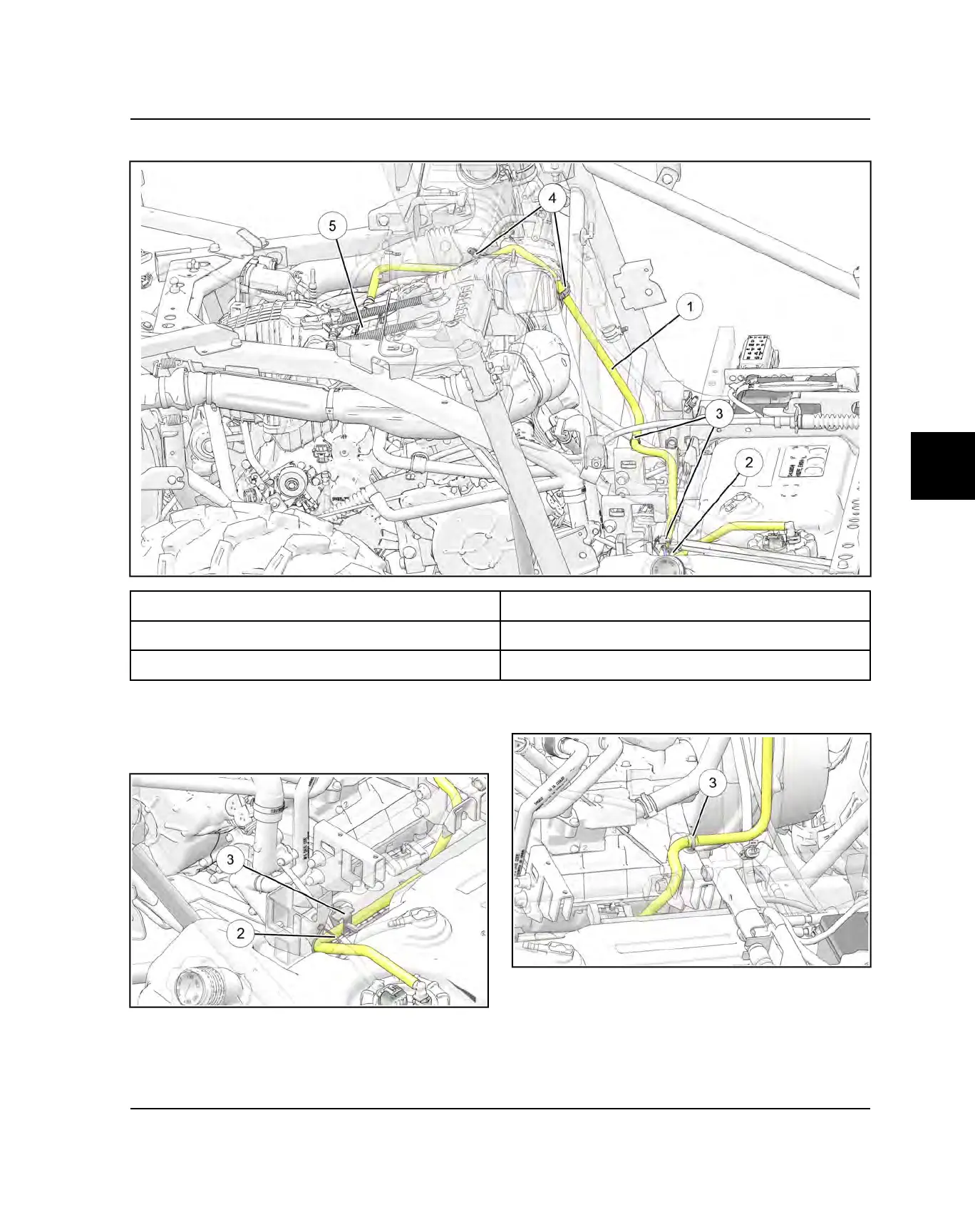

FUEL SUPPLY LINE ROUTING
q
Fuel Supply Line
r
Harness Clip
w
Panduit Strap
t
Fuel Rail
e
Hinge Clip
1. Retain fuel supply line to the vent line with a Panduit
strap
w
.
2. Retain fuel supply line to the frame with a hinge clip
e
.
3. Retain fuel supply line to the top of the engine mount
with a hinge clip
e
.
4. Route fuel supply line vertically along fuel vent line
and secure to fuel vent line with a harness clip
r
.
FUEL SYSTEM
