FUEL INJECTOR REPLACEMENT
CAUTION
Be sure the engine has cooled enough to work on.

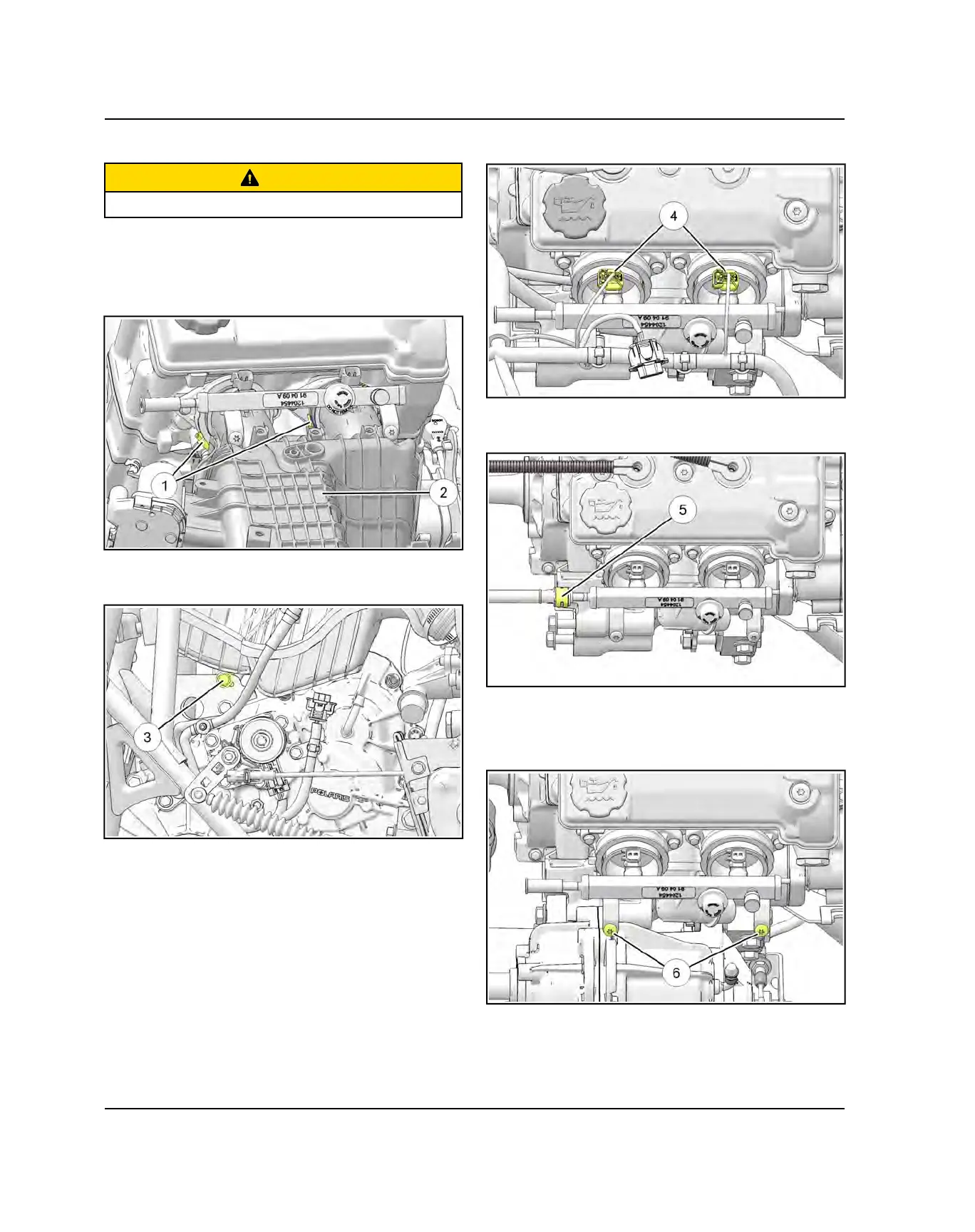

1. Remove the cargo box assembly (see Chapter 10 –
Cargo Box Removal page 11.19.
2. Loosen the hose clamps
q
retaining the intake
plenum
w
to the throttle body.
3. Remove the two screws
e
retaining the intake
plenum.
4. Remove the driver’s seat and disconnect the negative
battery cable.
5. Disconnect the fuel injector harness leads
r
.
6. Hold a shop towel over the fuel line fitting and remove
the fuel supply line
t
from the fuel rail.
7. Remove tie strap retaining the injector harness leads
to the fuel rail. Remove the two screws
y
that mount
the fuel rail to the throttle body using a 5 mm Allen
wrench.
