PVT SYSTEM SERVICE

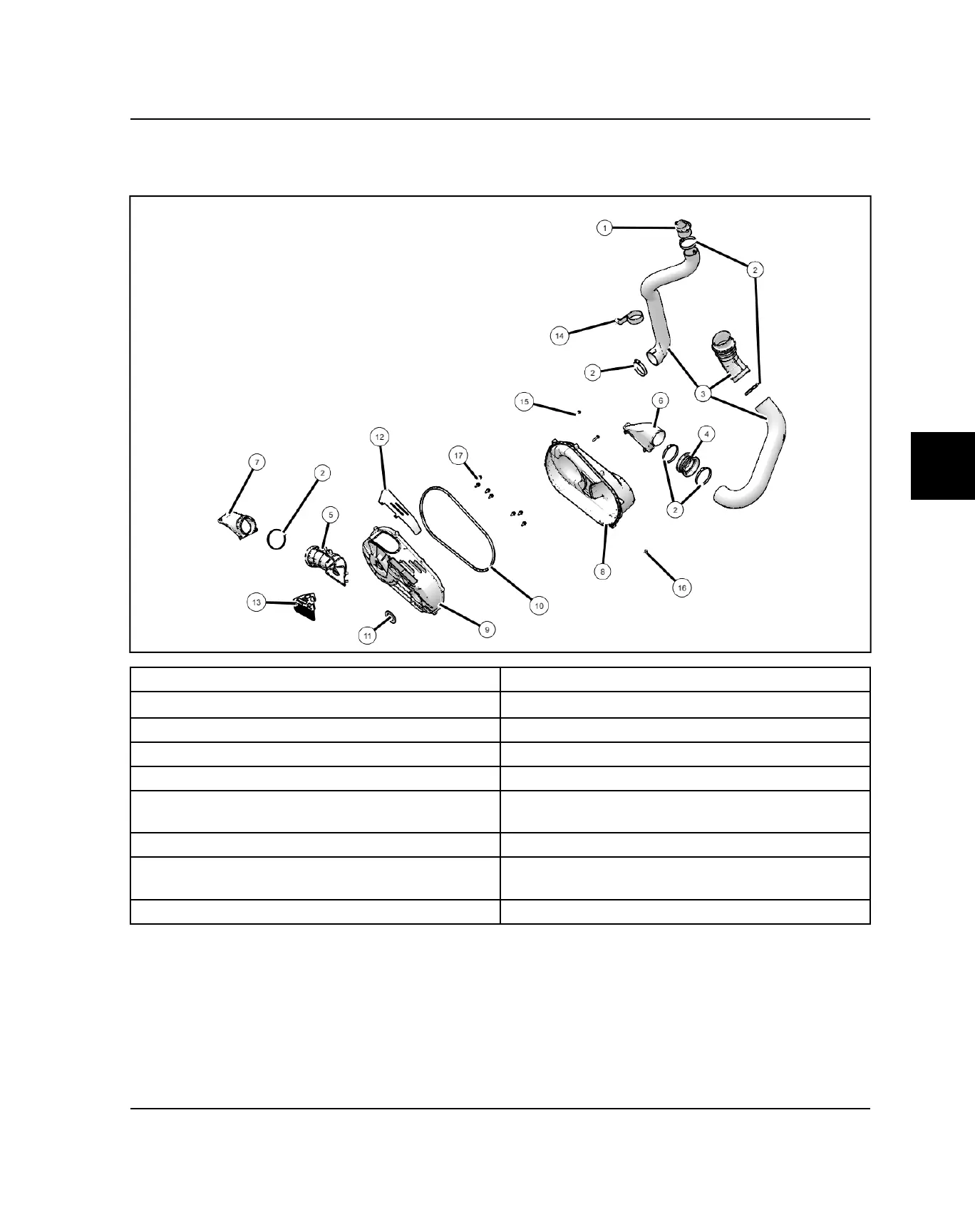

XP / XP4 PVT COVERS AND DUCTING COMPONENTS
q
Inlet Duct
a
Outer Cover Seal
w
Band Clamp
s
Inner Cover Seal
e
Intake Hose
d
Guard Plate
r
Boot
f
Outlet Duct Screen
t
Clutch Outlet Duct
g
Intake Hose Bracket
y
Inlet Duct
h
Outer Cover Screws
48 in-lb (5 Nm)
u
Outlet Duct
j
Clutch Cover Drain Screw
i
Outer Clutch Cover
k
Inner Cover Screws
12 ft-lb (16 Nm)
o
Inner Clutch Cover
