9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7.25
FRONT PROP SHAFT INSTALLATION
1. Reverse the appropriate Front Propshaft Removal,
page 7.20 procedure to reinstall the front propshaft.
2. Lubricate front gearcase shaft splines with Anti-
Seize.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.

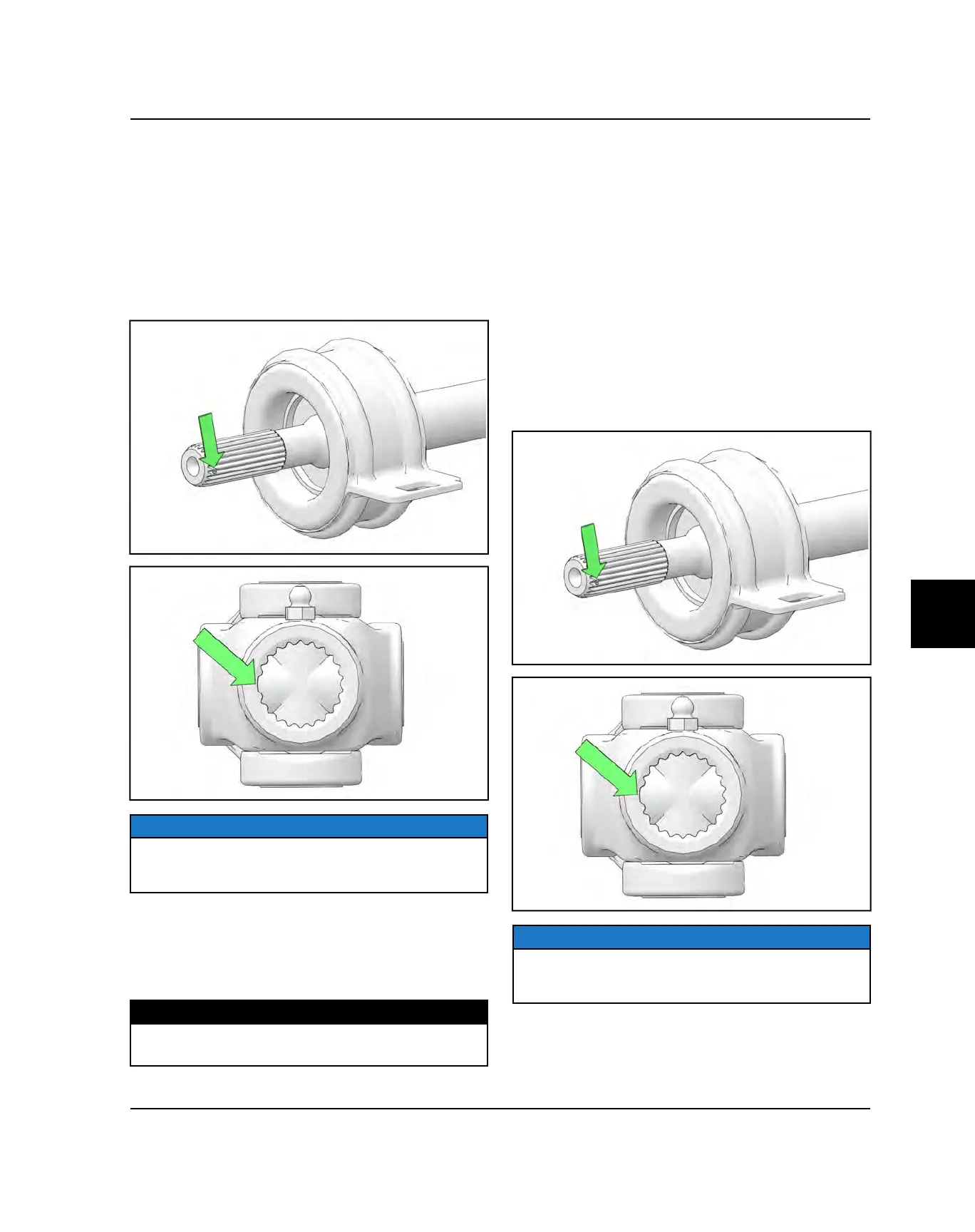

4. Align the front and rear prop shafts as shown below
and slide them together.
NOTE
Paint marks are applied to the front and rear prop shafts
to aid shaft alignment. Reference these marks during
installation if still visible.
5. When installing the front prop shaft onto the front
gearcase, use a new roll pin.
6. Reposition the front gearcase and install the four
bolts that secure the front gearcase to the frame.
Torque bolts to specification.
TORQUE
Front Gearcase Mounting Bolts:
35 ft-lbs (47 Nm)
REAR PROP SHAFT INSTALLATION
1. Reverse the appropriate “Rear Prop Shaft Removal”
procedure to reinstall the rear prop shaft.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Slide the rear prop shaft forward from the left rear of
the machine just below the PVT cover. Install the rear
prop shaft on the transmission snorkel shaft.
5. Lubricate the support bushing with light oil to ease
installation and install the bushing on the rear prop
shaft bearing.
6. Align the front and rear prop shafts as shown below
and slide them together.
NOTE
Paint marks are applied to the front and rear prop shafts
to aid shaft alignment. Reference these marks during
installation if still visible.
FINAL DRIVE
