BRAKE SYSTEM OVERVIEW

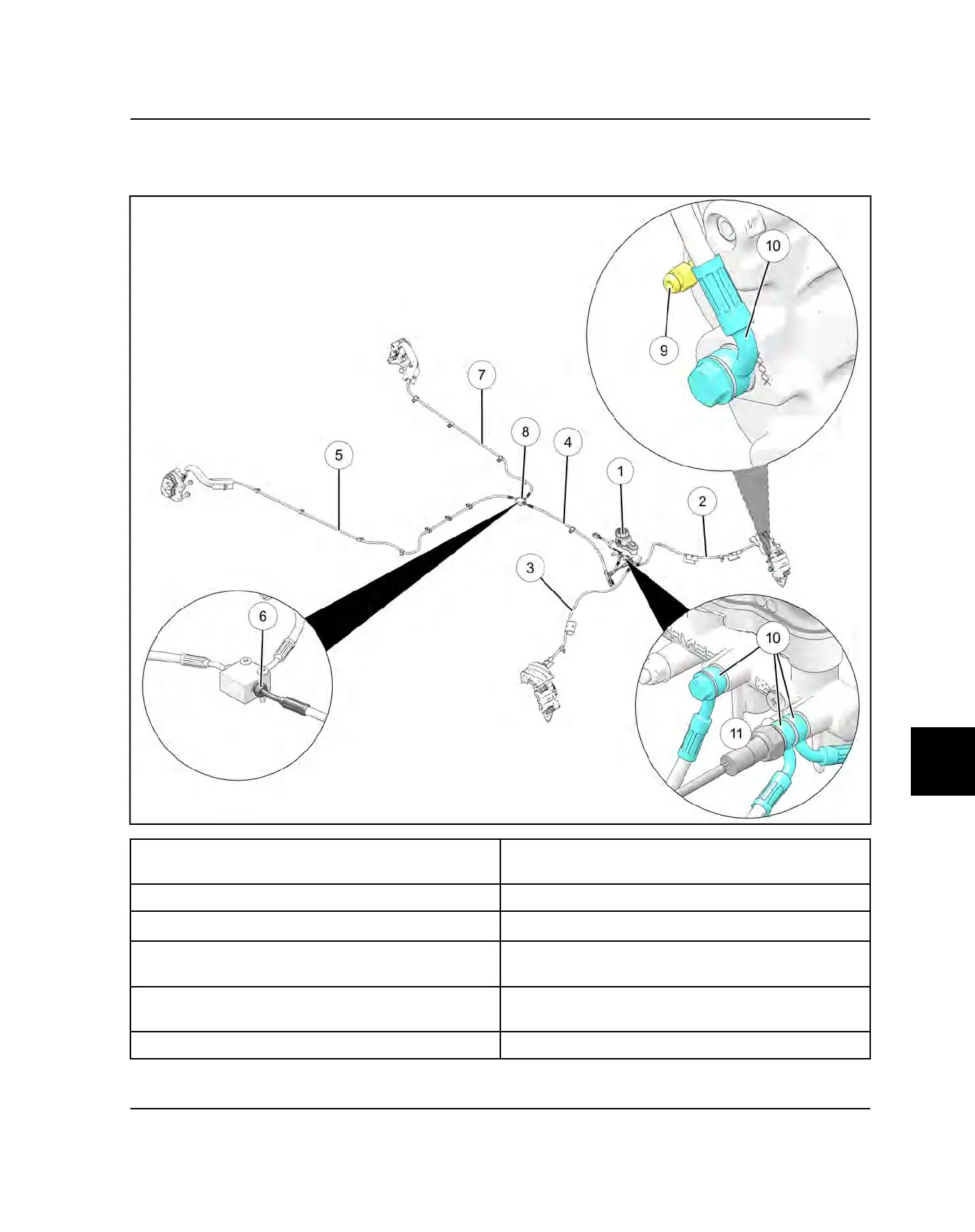

BRAKE SYSTEM ASSEMBLY VIEW
q
Master Cylinder
y
Flare Fitting
15 ft-lbs (20 Nm)
w
LH Front Brake Line
u
LH Rear Brake Line
e
RH Front Brake Line
i
Brake Tee-Fitting
r
MC Rear Brake Line
o
Bleed Screw
47 in-lbs (5 Nm)
t
RH Rear Brake Line
a
Banjo Fitting
15 ft-lbs (20 Nm)
s
Brake Switch
BRAKE SYSTEM
