9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
8.9

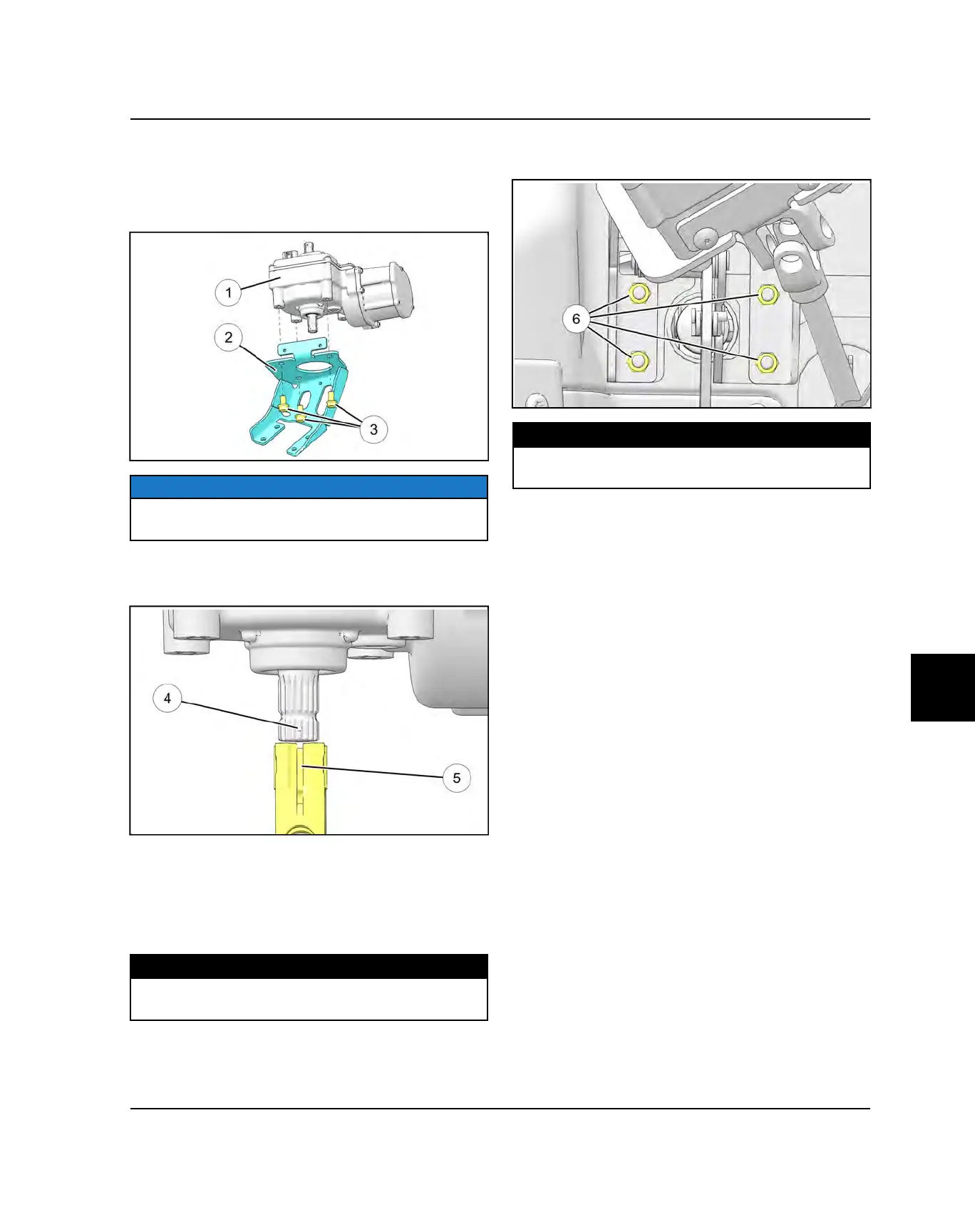

POWER STEERING UNIT INSTALLATION
1. If the power steering unit
q
was removed from the
mount bracket
w
, reinstall it prior to vehicle
installation. Torque the mounting bolts
e
to
specification.
NOTE
Power Steering Unit Fasteners:
30 ft-lb (41 Nm)
2. Install the power steering unit into the vehicle and
align the skip-tooth spline on the power steering stub
shaft with the opening in the lower steering shaft.
3. Place the power steering mount bracket over the top
of the brake pedal mount studs and finger tighten the
four nuts.
4. Position the lower steering shaft on the power
steering unit stub shaft and install the pinch bolt.
Torque to specification.
TORQUE
Lower Steering Shaft to EPS Unit Pinch Bolt:
15 ft-lbs (20 Nm)
5. Torque the four mount bracket nuts
y
to
specification.
TORQUE
Power Steering Unit Mount Bracket Nuts:
16 ft-lb (22 Nm)
6. Proceed to Upper Steering Shaft Installation, page
8.10 to complete the installation procedure.
STEERING / SUSPENSION
