6
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.15

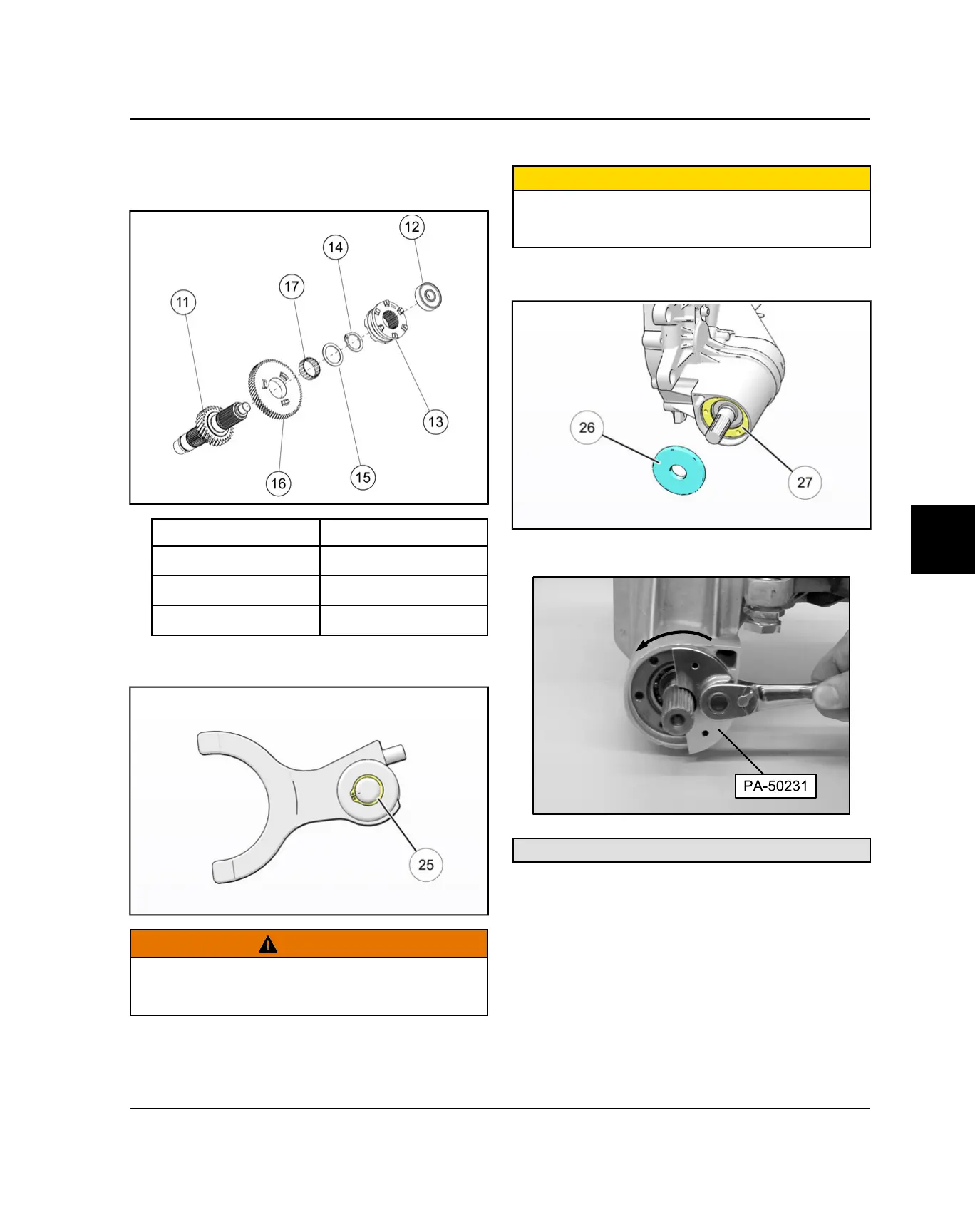

23.If necessary, disassemble the other end of the
reverse shaft. Remove the bearing , engagement
dog, retaining ring, washer, low gear
d
and needle
bearing
f
from the reverse shaft.
s
Reverse Shaft
h
Washer
d
Bearing
j
Low Gear
f
Engagement Dog
k
Needle Bearing
g
Snap Ring
24.To disassemble the shift shaft rail remove the snap
ring
2%
from the end of the shift rail on either side.
CAUTION
Use caution when disassembling the shift rail. The
compressed springs on the shift rail may pop off
causing eye or face injury.
Snorkel Shaft Removal / Disassembly
CAUTION
The pinion shaft must be removed prior to removing the
snorkel shaft assembly. Failure to remove pinion shaft,
will result in damage to the snorkel shaft.
25.Extract the seal
2^
from the snorkel shaft to access
the snorkel tube
2&
for removal.
26.Using the Snorkel Tool, fully loosen the snorkel tube.
Snorkel Tool: PA-50231
TRANSMISSION
