6.22
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

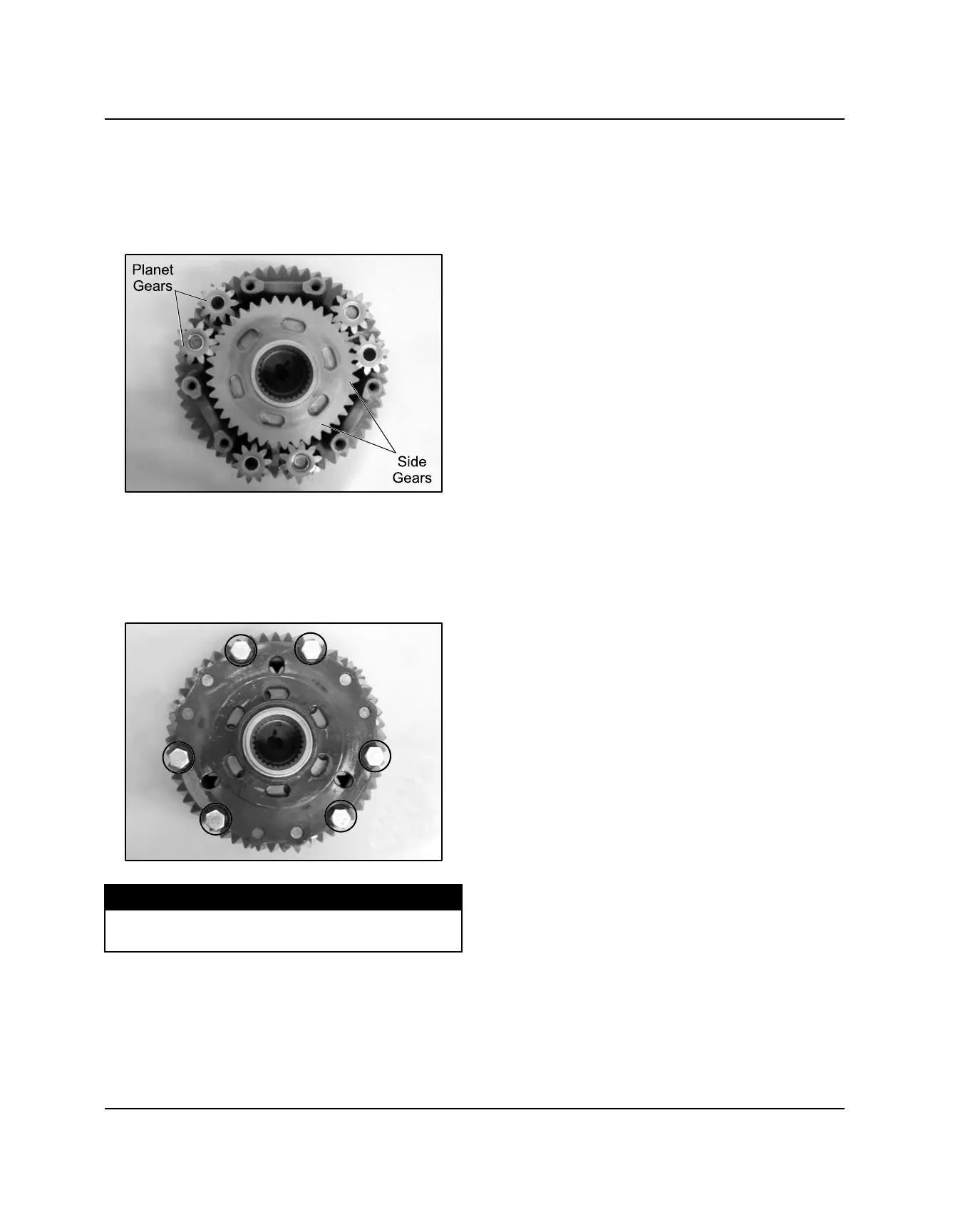

PLANETARY DIFFERENTIAL ASSEMBLY
(TURF MODE MODELS ONLY)
1. Thoroughly clean the differential components.
2. Assemble the side gears and place them onto the
ring gear along with the six planet gears.
3. Align and install the differential cover using the
previously made scribe marks.
4. Apply Loctite® 2760™ to cover screws.
5. Install screws hand tight. Place assembly in soft jaw
vise and torque to specification.
TORQUE
Differential Cover Screws:
22 ft-lb (30 Nm)
TRANSMISSION
