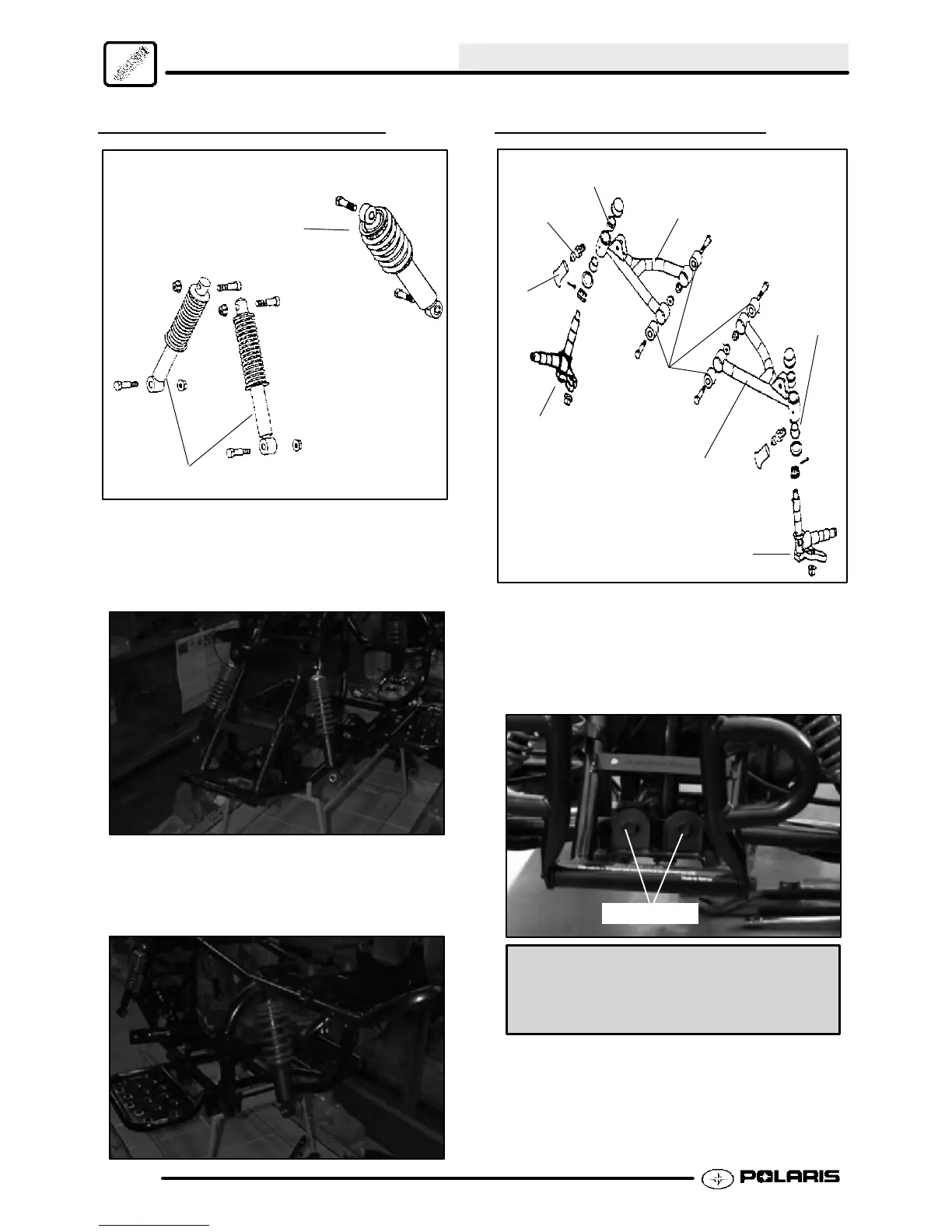

BODY/STEERING/SUSPENSION
4.4
SHOCKS AND SPRINGS
Front Shocks and Springs
Rear Shock and Spring
1. The front shocks and springs are mounted on the
frame and A-arm. The front springs on the
Sportsman 90 can be adjusted for more or less
spring preload depending on rider preference.
2. The rear shock and spring is mounted to the
frame and swing arm. The rear spring can be
adjusted for more or less spring preload
depending on rider preference.
SUSPENSION A-ARMS
Right A-arm
Bushings
Upper Spindle Bushing
Lower
Spindle
Bushing
Left A-arm
Right Spindle
Left Spindle
Grease Fitting
Cap
1. Mount the A-arms to the frame body. The A-arm
marked“R” is for right side, and A-arm marked “L”
is for left side. Torque the bolts to specification.
Mount the shock in the A-arm and torque bolt to
specification.
A-arm Bolts
A-arm Mounting Bolt Torque:
26-30 ft.lbs. (36-40 Nm)
Shock Mounting Bolt Torque:
15 ft.lbs. (20 Nm)
