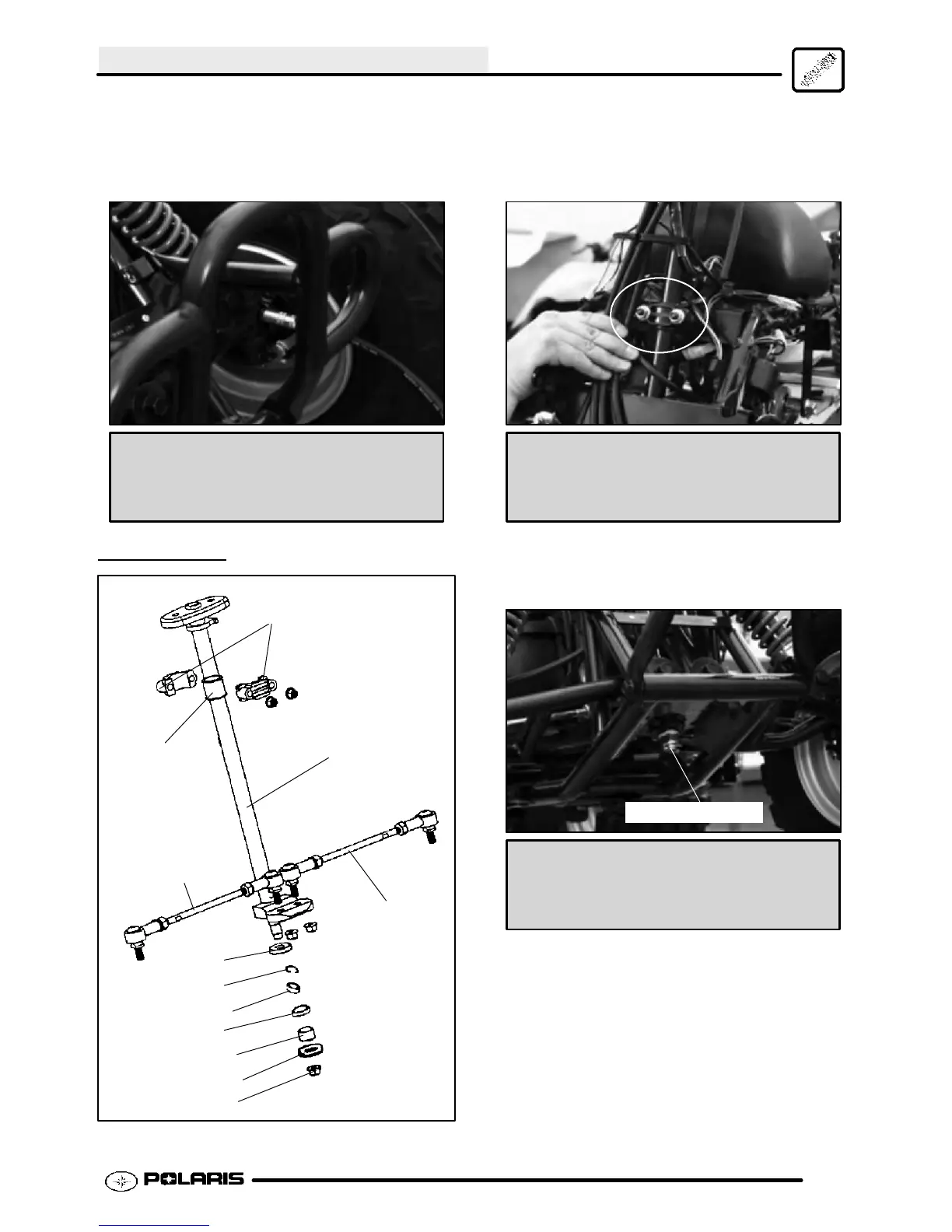

Polaris SCRAMBLER 90 User Manual

BODY/STEERING/SUSPENSION
4.5
2. Grease spindles and mount the spindles on the
A-arms. The spindle marked “R” is for right side,
and “L” for left side. Torque the spindle nut to
specification. Insert cotter key.
Spindle Nut Torque:
40-45ft.lbs(58-62Nm)
STEERING
Steering Post
Steering
Post
Bushings
Left Tie Rod
Asembly
Right Tie
Rod Assembly
Steering
Post
Sleeve
Seal
Circlip
Bearing
Seal
Spacer
Washer
Nut
1. Grease the steering post sleeve and insert in
place. Mount the steering post clamps on post.
Install the steering post and tighten the steering
post mount nuts to specification.
Steering post mounts
Steering Post Mount Nut Torque:
103 in.lbs. (11.6 Nm)
2. Install oil seals, bearing, steering nut and
associated hardware on the bottom of the
steering post. Torque nut to specification.
Steering Post Nut
Steering Post Nut Torque:
62-65 ft.lbs. (86-90 Nm)
NOTE:Turn the steering post after mounting to make
sure the post turns freely in both directions without
binding.
