Polycom VSX Series Integrator's Reference Manual

Chapter 1 - Cables
© Polycom, Inc. 1 - 15

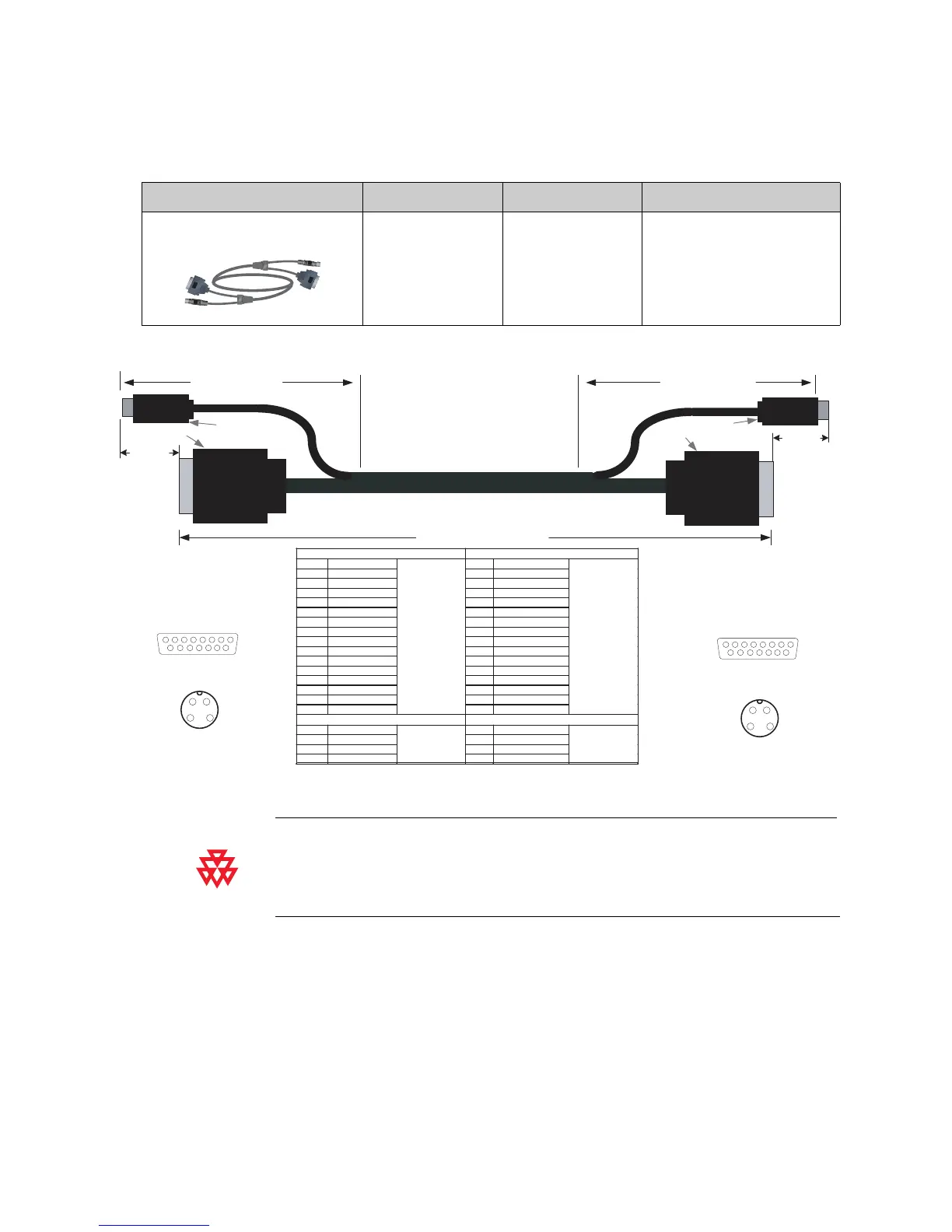

PowerCam Plus Primary Cable
This cable connects a VSX 8000 to a PowerCam Plus camera.
This drawing is provided for design reference only. Polycom claims no responsibility or
liability for the quality, performance and/or reliability of cables based on this reference
drawing. Cables are available from Polycom that meet the appropriate manufacturing
tolerances, quality and performance parameters.
Description Used With Part Number Length
4-pin mini-DIN and DB-15 on
both ends
VSX 8000 (requires
S-Video to BNC
adapter, requires
DB-15 to DB-9
adapter if used for a
secondary camera)
1457-50105-001 Shipped Length: 9 ft 10 in
(3 m)
1576423
8
1514
12
10911
13
1
34
2
Front View
of Connector
1
3
4
2
1576423
8
15
14
12
10911
13
P1
P2
P3
P4
Front View
of Connector
200mm / 7.87"
200mm / 7.87"
3 Meters / 9' 10"
P1 Connector P2 Connector
Pin # Signal Name Pin # Signal Name
1 Arm Mic 1 Arm Mic
2 Left Mic 2 Left Mic
3 A GND 3 A GND
4 Cam ID Bit 4 Cam ID Bit
5 P GND 5 P GND
6 +12V 6 +12V
7 SW-RX/SN-TX 7 SW-RX/SN-TX
8 IR signal 8 IR signal
9 Center Mic 9 Center Mic
10 Right Mic 10 Right Mic
11 A GND 11 A GND
12 P GND 12 P GND
13 +12V 13 +12V
14 SW-TX/SN-RX 14 SW-TX/SN-RX
15 IR return 15 IR return
P3 4 Pin mini Din P4 4 Pin mini Din
1 A GND 1 A GND
2 A GND 2 A GND
3 Luma 3 Luma
4 Chroma 4 Chroma
40mm / 1.57"
40mm / 1.57"
